FUEL FILLER PIPE ASSEMBLY- R + R

Operation 1040A30 · FUEL TANK AND COMPONENTS

1.2 8v, 1.4 8v, 1.3 Multijet, 1.9 Multijet

Removing

- Position the vehicle on a lift.

Op. 4450B08 RIGHT REAR WHEEL - R.R

Op. 7025C10 FUEL FILLER ACCESS FLAP - R+R

- Raise the vehicle.

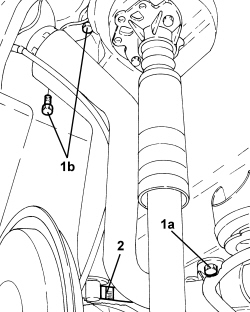

1. Undo the lower bolt (1a) and the upper bolts (1b) securing the fuel filler pipe to the bodyshell.

2. Loosen the band and disconnect the blow back pipe from the fuel filler pipe.

1. Open the clips (1a) securing the blow back pipe (1b) to the fuel filler pipe.

2. Loosen the band and remove the fuel filler pipe.

Refitting

- Place the fuel filler pipe in position and close the band.

- Connect the blow back pipe to the fuel filler pipe, close the clips and the band.

- Tighten the bolts fixing the fuel filler pipe to the bodyshell.

- Lower the vehicle.

Op. 7025C10 FUEL FILLER ACCESS FLAP - R+R

Op. 4450B08 RIGHT REAR WHEEL - R.R

- Remove the vehicle from the lift.
