TRIP COMPUTER - WIRING DIAGRAM

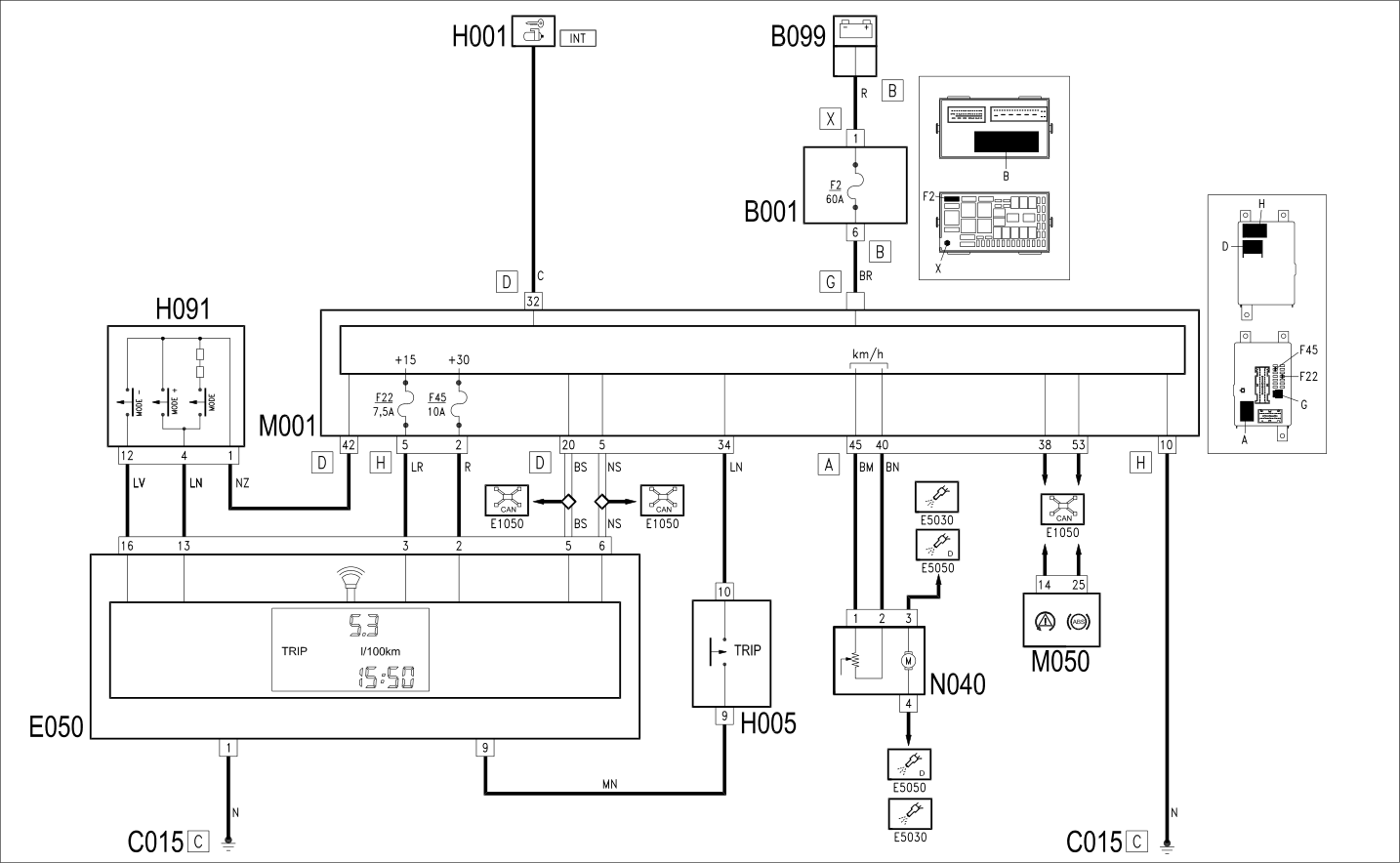

WIRING DIAGRAM

COMPONENTS

Component code	Description	Reference to the operation
B001	JUNCTION UNIT	Op. 5505A13 ADDITIONAL JUNCTION UNIT IN ENGINE COMPARTMENT - R.R.
B099	MAXI FUSE BOX ON BATTERY	Op. 5530B40 SUPPLY BOX ON BATTERY (LINK BATTERY AND FUSE BOX) - R R
C015	DASHBOARD EARTH, DRIVER'S SIDE
E050	INSTRUMENT PANEL	Op. 5560B10 CONTROL PANEL - R+R
H001	IGNITION SWITCH	Op. 5520A18 IGNITION SWITCH CONTACT CARRIER LOCK BARREL - R.R.
H005	STEERING COLUMN SWITCH UNIT	Op. 5550A10 STALK UNIT ASSEMBLY - R+R
H091	LEFT CONTROL UNIT (PCS, LEFT CONTROL PANEL)	Op. 7040A82 SWITCH UNIT ON LEFT SIDE OF DASHBOARD - R.R.
M001	BODY COMPUTER	Op. 5505A32 BODY COMPUTER - R.R
M050	ABS CONTROL UNIT	Op. 3340A20 ABS ELECTRONIC CONTROL UNIT - R+R
N040	FUEL PUMP AND LEVEL GAUGE	Op. 1040A70 SUBMERGED PUMP ASSEMBLY COMPLETE WITH LEVEL GAUGE CONTROL - R + R
