Wiring diagrams and electrical functionsNavigator wiring diagram

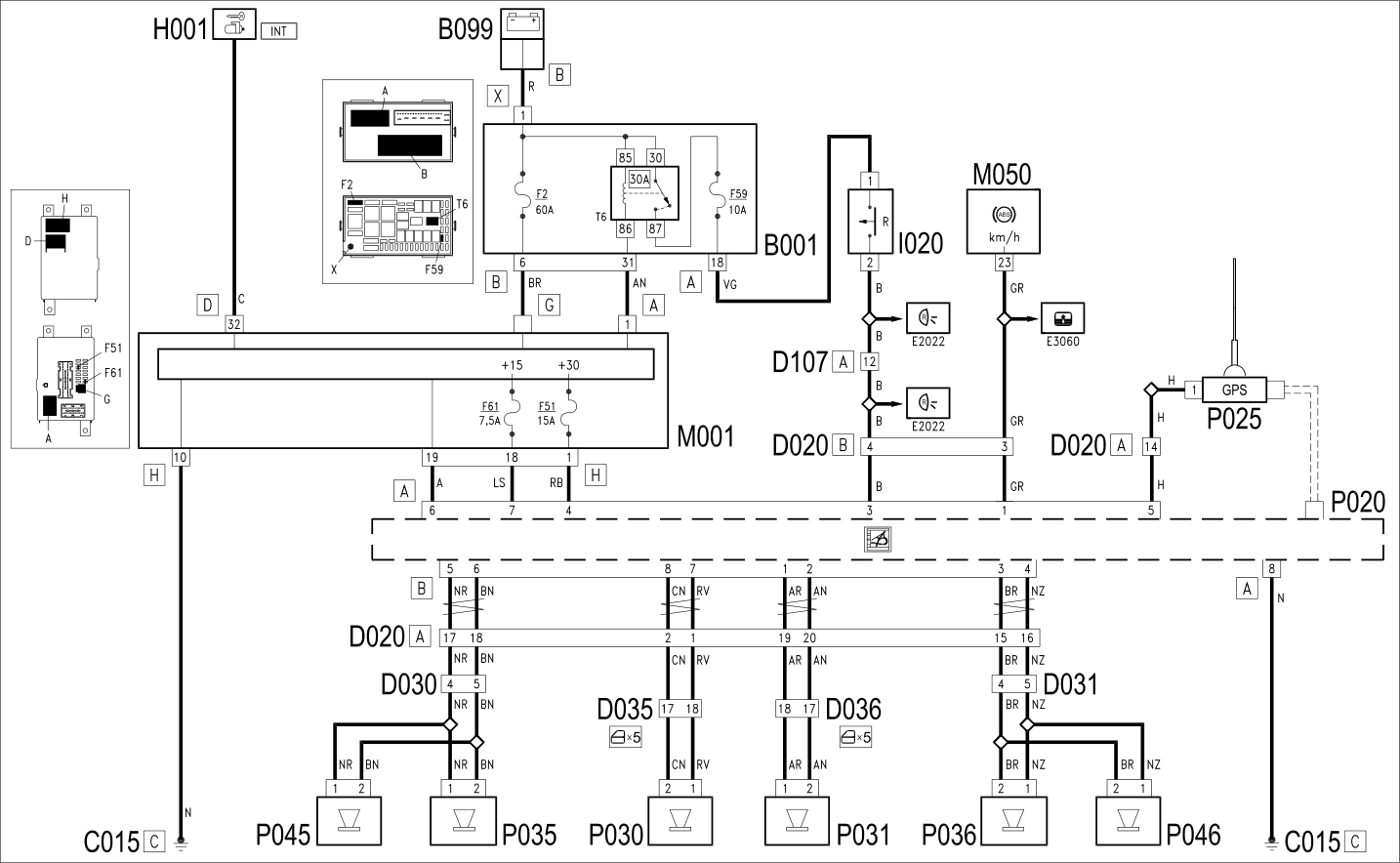

NAVIGATOR WIRING DIAGRAM

Provision for navigator

WIRING DIAGRAM

COMPONENTS

Component code	Description	Reference to the operation
B001	JUNCTION UNIT	Op. 5505A13 ADDITIONAL JUNCTION UNIT IN ENGINE COMPARTMENT - R.R.
B099	MAXI FUSE BOX ON BATTERY	Op. 5530B40 SUPPLY BOX ON BATTERY (LINK BATTERY AND FUSE BOX) - R R
C015	DASHBOARD EARTH, DRIVER'S SIDE
D020	DASHBOARD/REAR COUPLING
D030	DRIVER'S FRONT DOOR COUPLING
D031	PASSENGER FRONT DOOR COUPLING
D035	LEFT REAR DOOR COUPLING
D036	RIGHT REAR DOOR COUPLING
D107	DASHBOARD-REAR/ENGINE SERVICES COUPLING
H001	IGNITION SWITCH	Op. 5520A18 IGNITION SWITCH CONTACT CARRIER LOCK BARREL - R.R.
I020	REVERSING LIGHTS SWITCH	Op. 5550D22 REVERSING LIGHT SWITCH - R+R
M001	BODY COMPUTER	Op. 5505A32 BODY COMPUTER - R.R
M050	ABS CONTROL UNIT	Op. 3340A20 ABS ELECTRONIC CONTROL UNIT - R+R
P020	RADIO	Op. 5570T80 CAR RADIO EQUIPMENT - R+R
P025	AERIAL FEED/AMPLIFIER	Op. 5570T27 AERIAL SUPPORT - R.R
P030	LEFT REAR SPEAKER	Op. 5570T96 REAR SIDE SPEAKER (ONE), LEFT OR RIGHT- R.R
P031	RIGHT REAR SPEAKER	Op. 5570T96 REAR SIDE SPEAKER (ONE), LEFT OR RIGHT- R.R
P035	SPEAKER ON FRONT DOOR LEFT	Op. 5570T90 FRONT SPEAKER (ONE), LEFT OR RIGHT - R.R
P036	SPEAKER IN RIGHT FRONT DOOR	Op. 5570T90 FRONT SPEAKER (ONE), LEFT OR RIGHT - R.R
P045	LEFT FRONT TWEETER SPEAKER	Op. 5570T92 FRONT TWEETER (ONE), LEFT OR RIGHT - R.R
P046	RIGHT FRONT TWEETER SPEAKER	Op. 5570T92 FRONT TWEETER (ONE), LEFT OR RIGHT - R.R
