AERIAL SUPPORT - R.R

Operation 5570T27 · CAR RADIO AND CAR TELEPHONE

Removing

- Remove the rear parcel shelf.

- Work on the left side.

Op. 7040G30 BOOT LIGHT BULB HOLDER - R.R.

Op. 7040H42 REAR PILLAR TRIM (ONE), LEFT OR RIGHT- R.R

- For 3 door version.

Op. 7040L40 FRONT DOOR RUNNING BOARD (ONE), LEFT OR RIGHT - R.R.

Op. 7050A22 REAR SEAT CUSHION - R+R

For the 5 door version.

Op. 7040L48 FRONT AND REAR DOOR RUNNING BOARD (ONE), LEFT OR RIGHT - R.R.

Op. 7040H36 CENTRE PILLAR LOWER ELEMENT (ONE), LEFT OR RIGHT - R.R

Op. 7040H38 CENTRE PILLAR UPPER ELEMENT (ONE), LEFT OR RIGHT - R.R

- Remove the left rear handle.

Op. 7065C30 GRAB HANDLE (ONE) LEFT, RIGHT OR CENTRE PASSENGER COMPARTMENT INTERIOR - R.R

- If a sun-roof is fitted, remove the rear seal.

Op. 7030B34 SLIDING ROOF COMPARTMENT DECORATIVE SEAL - R+R

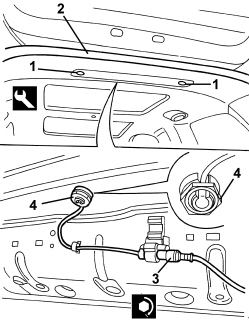

1. Release the roof lining rear retaining buttons using the special tool.

2. Release the tailgate housing seal in the ceiling area.

3. Disconnect the connection for the aerial lead.

4. Undo the special nut with the split washer.

1. Working from outside the vehicle, remove the aerial mounting and wiring

Refitting

- Check that the aerial is not damaged.

- Fit the wiring, then position the aerial mounting and secure it from the inside using the special nut.

- Connect the connection for the aerial lead.

- Fit the tailgate housing seal in the ceiling area.

- Do up the rear ceiling retaining studs.

Op. 7030B34 SLIDING ROOF COMPARTMENT DECORATIVE SEAL - R+R

Op. 7065C30 GRAB HANDLE (ONE) LEFT, RIGHT OR CENTRE PASSENGER COMPARTMENT INTERIOR - R.R

Op. 7040H38 CENTRE PILLAR UPPER ELEMENT (ONE), LEFT OR RIGHT - R.R

Op. 7040H36 CENTRE PILLAR LOWER ELEMENT (ONE), LEFT OR RIGHT - R.R

Op. 7040L48 FRONT AND REAR DOOR RUNNING BOARD (ONE), LEFT OR RIGHT - R.R.

Op. 7050A22 REAR SEAT CUSHION - R+R

Op. 7040L40 FRONT DOOR RUNNING BOARD (ONE), LEFT OR RIGHT - R.R.

Op. 7040H42 REAR PILLAR TRIM (ONE), LEFT OR RIGHT- R.R

Op. 7040G30 BOOT LIGHT BULB HOLDER - R.R.

- Refit the rear parcel shelf.
