SUN ROOF - Wiring diagram
- Make
- Fiat
- Model
- Idea Factory Service Manual
- Year
- 2003–2012
- Section
- Electrically activated devices › SUN ROOF - Wiring diagram
Wiring diagrams and electrical functionsSUN ROOF - Wiring diagram
SUN ROOF - Wiring diagram

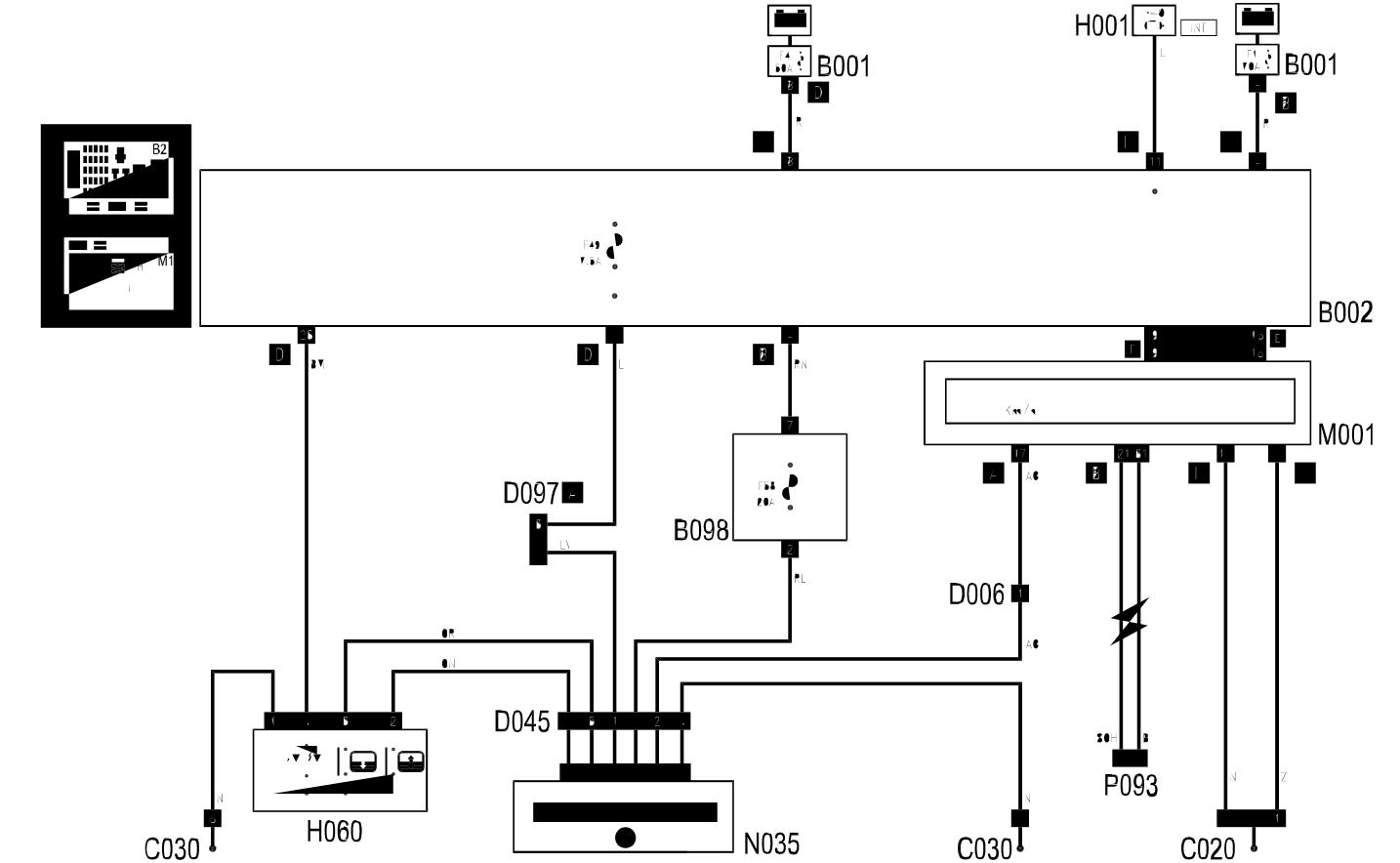

Wiring diagram
COMPONENTS
| Component code | Name | Assembly reference |
|---|---|---|
| B1 | Engine compartment junction unit | 5505A |
| B2 | Junction unit under dashboard | 5505A |
| B98 | Supplementary fuse box | |
| C30 | Left rear earth | |
| D6 | Front / rear coupling | |
| D45 | Sunroof connection | |
| D97 | Short circuiting coupling | |
| H1 | Ignition switch | 5520A |
| H60 | Sun roof switch | 7030B |
| M1 | Body computer | 5505A |
| N35 | Sun roof motor | 7030B |
| P93 | Aerial for central locking receiver |
