CENTRAL LOCKING - Wiring diagram

Make

Fiat

Model

Idea Factory Service Manual

Year

2003–2012

Section

Electrically activated devices › CENTRAL LOCKING - Wiring diagram

Wiring diagrams and electrical functionsCENTRAL LOCKING - Wiring diagram

CENTRAL LOCKING - Wiring diagram

High setup

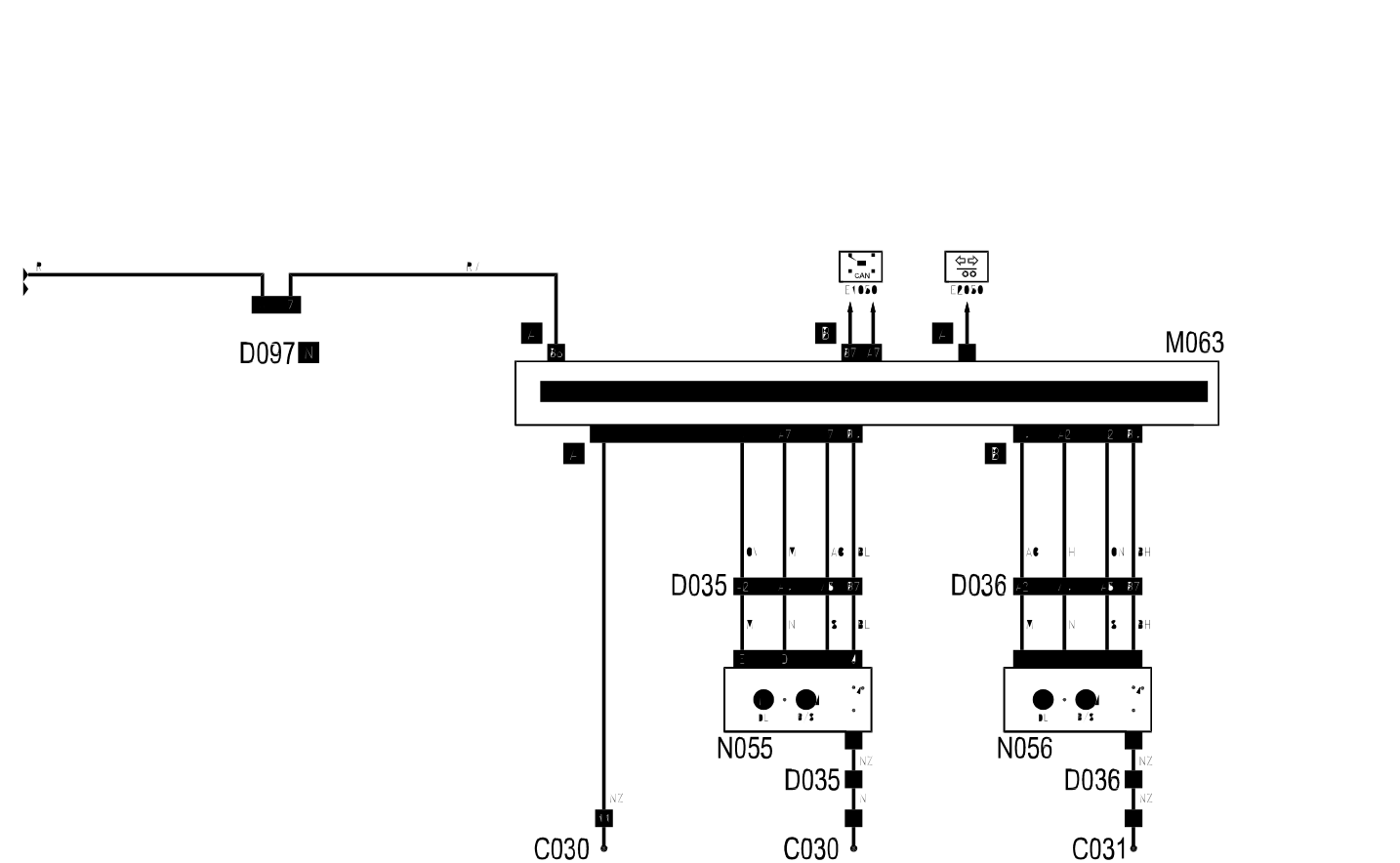

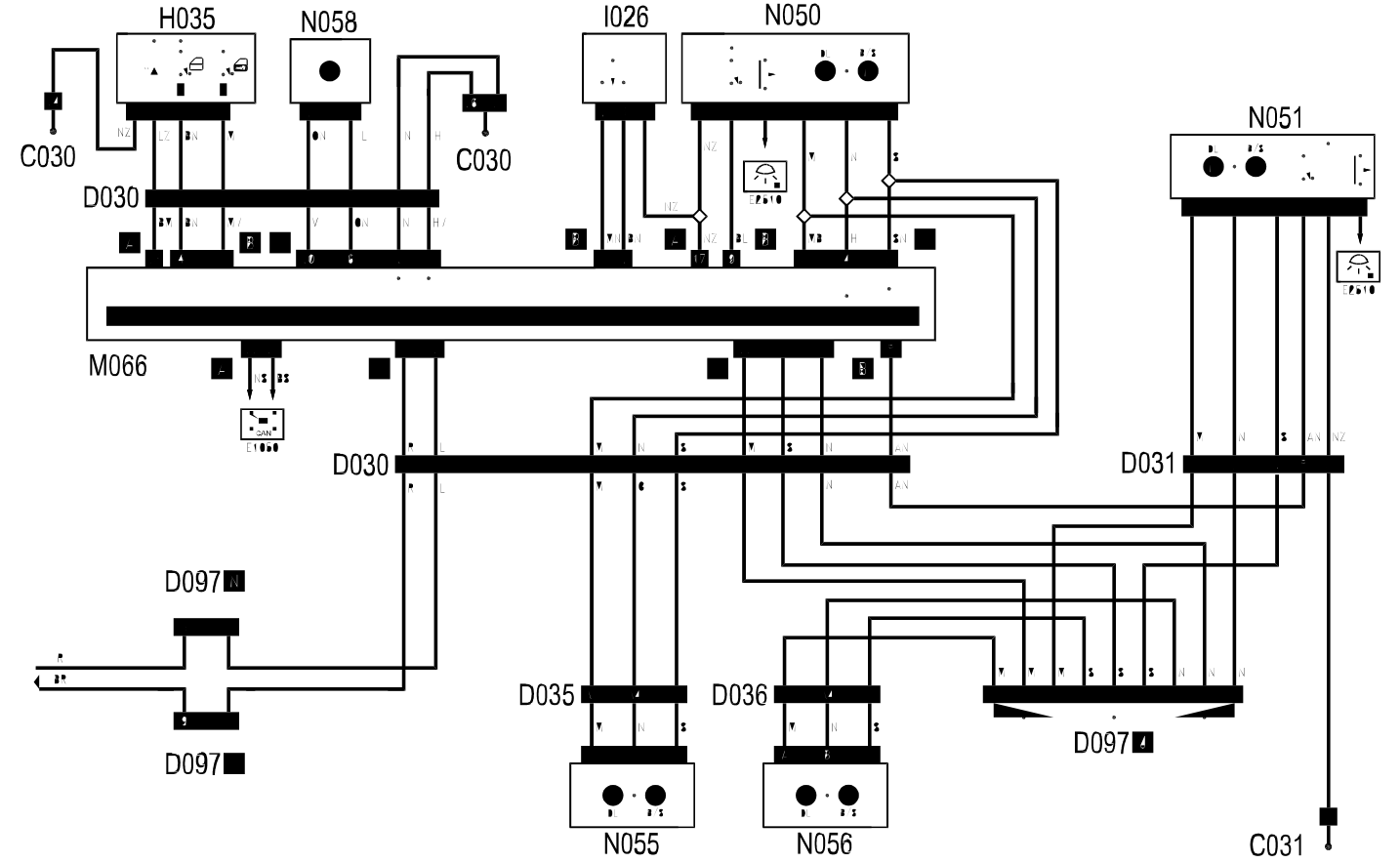

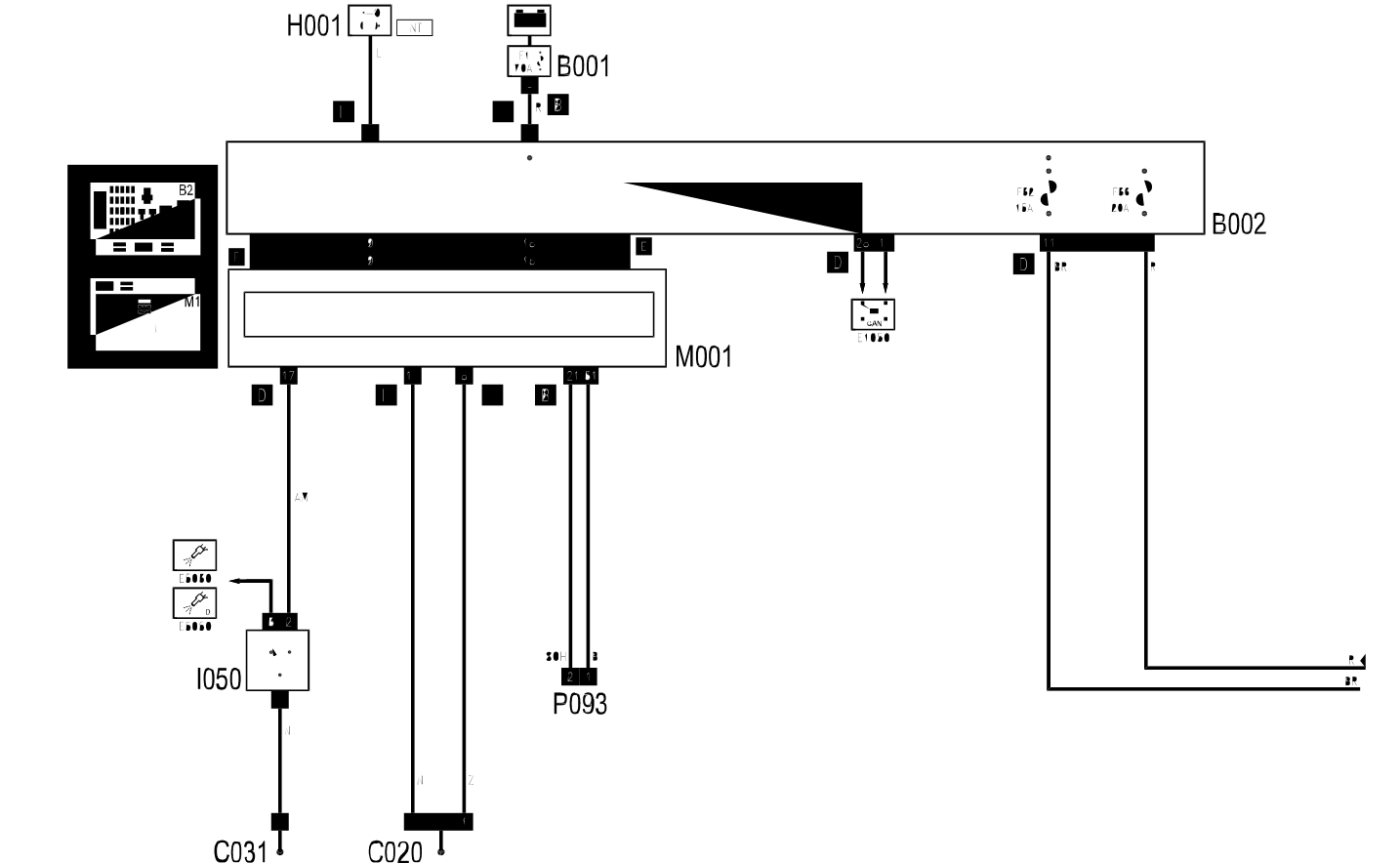

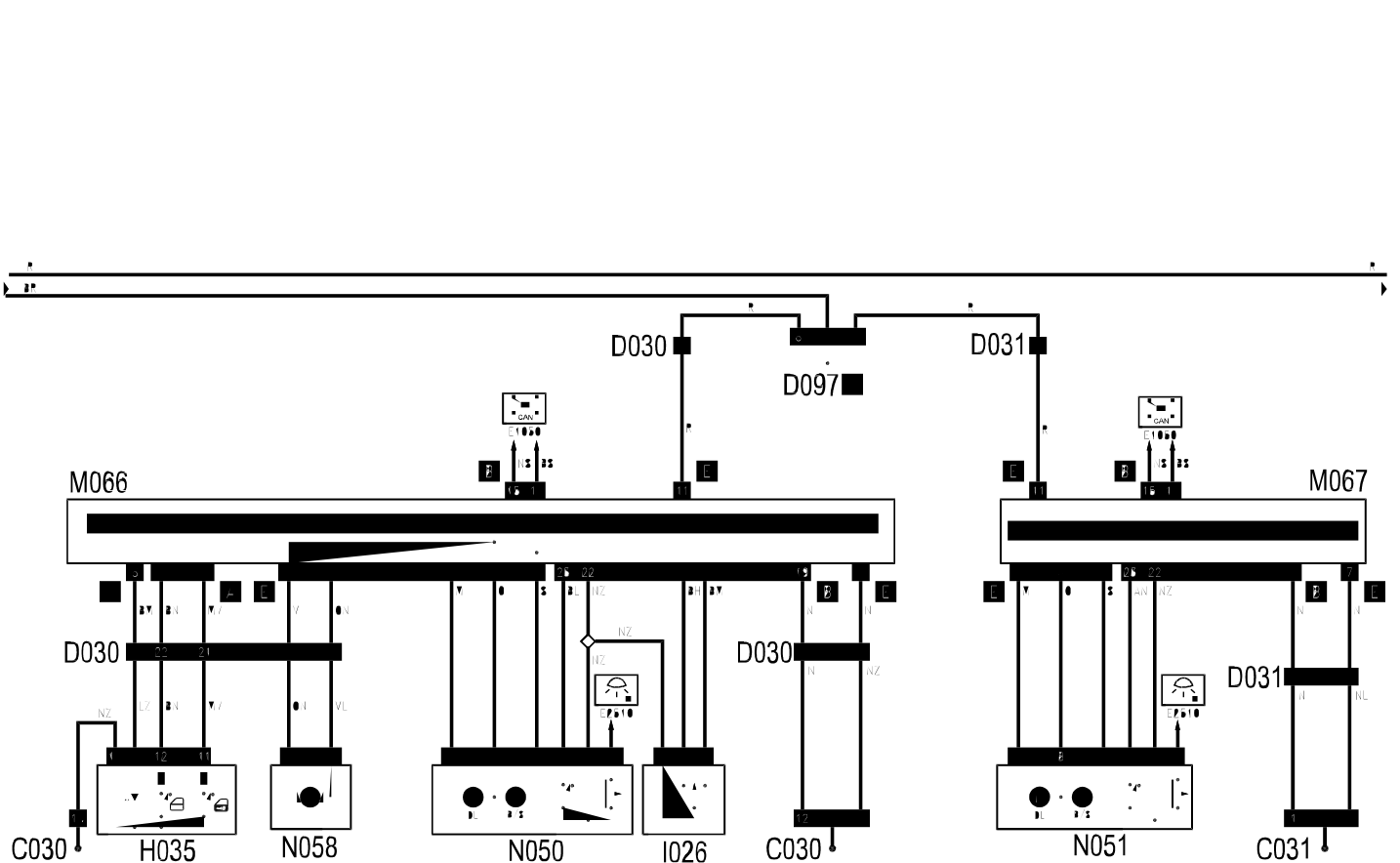

Wiring diagram

COMPONENTS

Component code	Name	Assembly reference
B1	Engine compartment junction unit	5505A
B2	Junction unit under dashboard	5505A
C20	Passenger side dashboard earth
C30	Left rear earth
C31	Rear right earth
D30	Rear coupling for /front door. driver's side
D31	Front passenger door/ rear coupling.
D35	Rear / rear door coupling left
D36	Rear/right door coupling right
D97	Short circuiting coupling
H1	Ignition switch	5520A
H35	Switches assembly on central console	7040L
I26	Driver's front door locking/unlocking switch	7005A
I50	Inertial switch	1040A
M1	Body computer	5505A
M63	Luggage compartment control unit	5505A
M66	Driver's door control unit	5505A
M67	Passenger door control unit
N50	Front driver's door lock geared motor.	7005A
N51	Passenger front. door lock geared motor	7005A
N55	Left rear. door lock geared motor	7010A
N56	Rear door lock geared motor right	7010A
N58	Fuel flap lock gearmotor	7025C
P93	Aerial for central locking receiver

Low setup

Wiring diagram

COMPONENTS

Component code	Name	Assembly reference
B1	Engine compartment junction unit	5505A
B2	Junction unit under dashboard	5505A
C20	Passenger side dashboard earth
C30	Left rear earth
C31	Rear right earth
D30	Rear coupling for /front door. driver's side
D31	Front passenger door/ rear coupling.
D35	Rear / rear door coupling left
D36	Rear/right door coupling right
D97	Short circuiting coupling
H1	Ignition switch	5520A
H35	Switches assembly on central console	7040L
I26	Driver's front door locking/unlocking switch	7005A
I50	Inertial switch	1040A
M1	Body computer	5505A
M63	Luggage compartment control unit	5505A
M66	Driver's door control unit	5505A
M67	Passenger door control unit
N50	Front driver's door lock geared motor.	7005A
N51	Passenger front. door lock geared motor	7005A
N55	Left rear. door lock geared motor	7010A
N56	Rear door lock geared motor right	7010A
N58	Fuel flap lock gearmotor	7025C
P93	Aerial for central locking receiver
