00 Introduction and technical dataGearbox · page 4 of 6
| 00.24 | |
|---|---|
| Type | in 3 sections |
| Supports | 2, with sealed ball bearings on the centre section |
| Sliding constant velocity joints | 2, on front section |
| Universal joints | 2, on rear section |
| Sliding splined rear | joint, on rear section |
| Spider clearance mm | 0.01 ÷ 0.04 |
| Thickness of shims for adjusting spider clearance mm | 1.50 - 1.53 - 1.56 - 1.59 - 1.62 |
| Clearance between joint splines mm | 0.175 ÷ 0.350 |

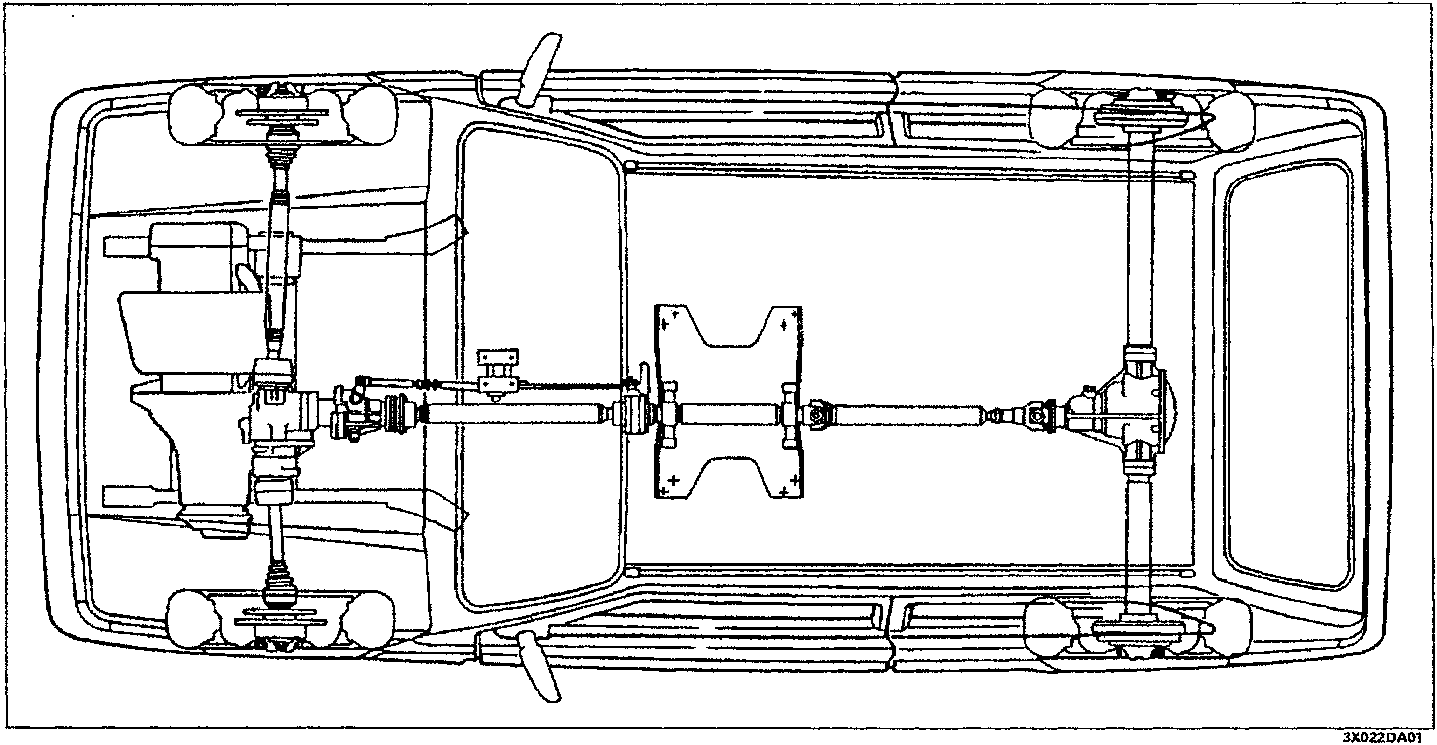

Diagram showing transmission of drive to all four wheels
