Technical data (Panda 750 Young) › Brakes
00 Introduction and technical dataBrakes · page 1 of 2

Brakes

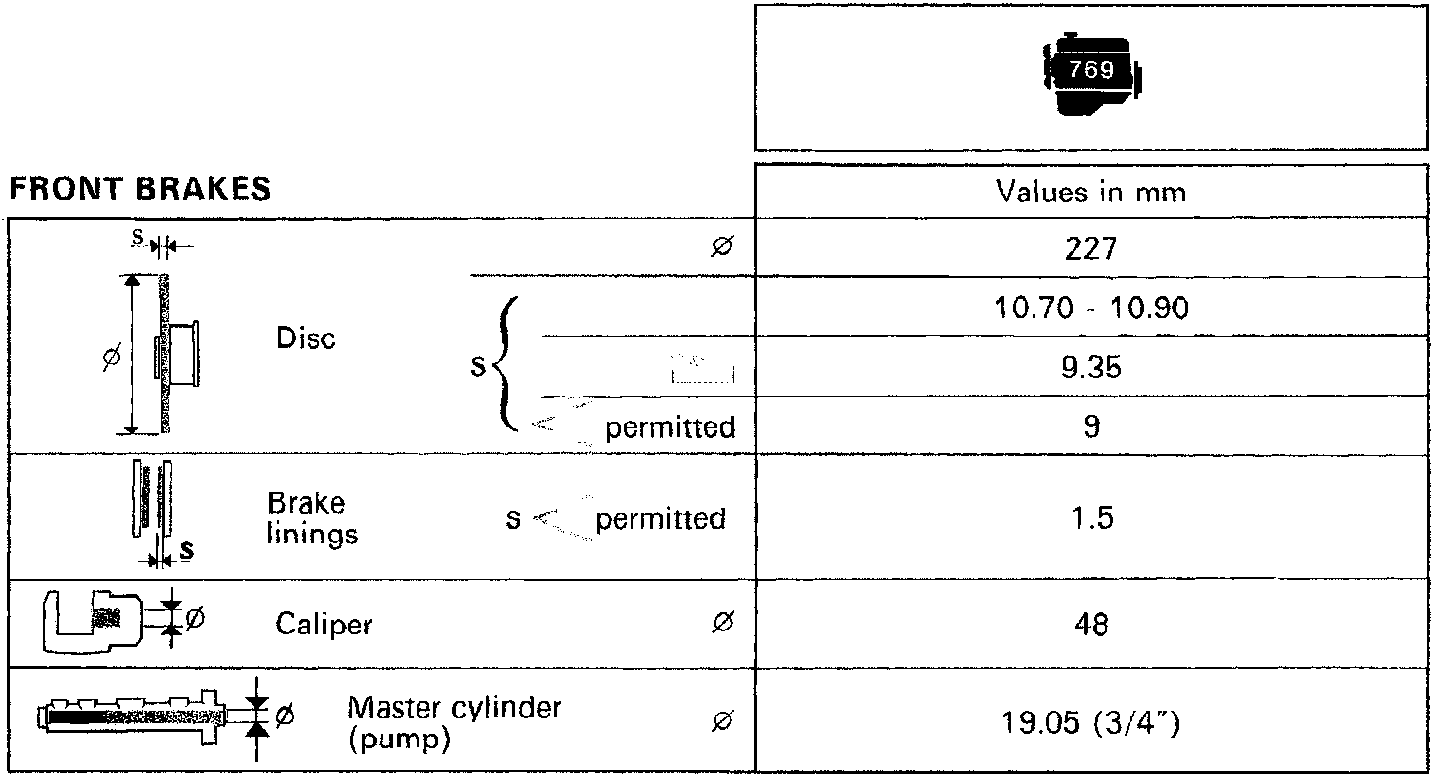

Diagram and specifications table for front brakes including disc, brake linings, caliper, and master cylinder dimensions

FRONT BRAKES

Values in mm
Ø 227
Disc
s {		 10.70 - 10.90
9.35
permitted 9
Brake linings
s < permitted		 1.5
Caliper
Ø		 48
Master cylinder (pump)
Ø		 19.05 (3/4")

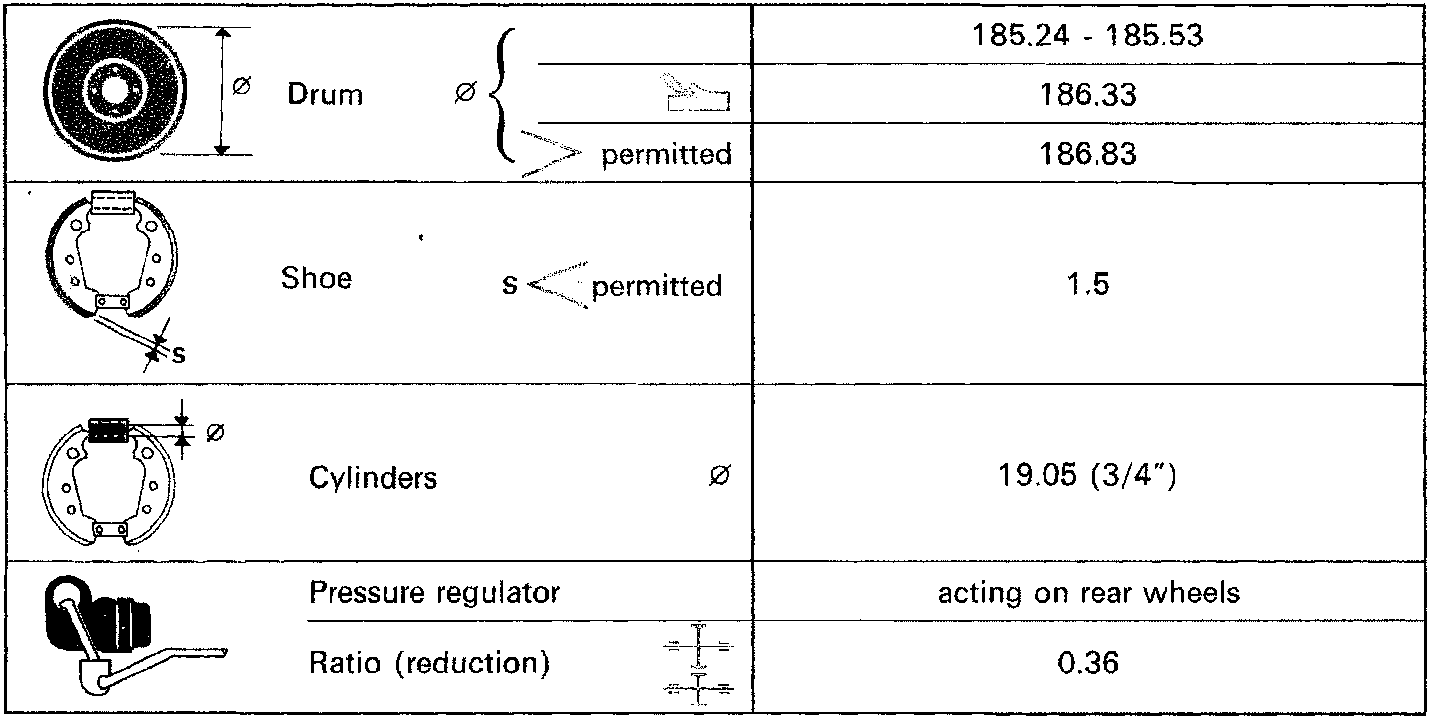

Diagram and specifications table for rear brakes including drum, shoe, cylinders, pressure regulator, and ratio dimensions

REAR BRAKES

Drum
Ø {		 185.24 - 185.53
186.33
permitted 186.83
Shoe
s < permitted		 1.5
Cylinders
Ø		 19.05 (3/4")
Pressure regulator acting on rear wheels
Ratio (reduction) 0.36
