CARBURETTOR

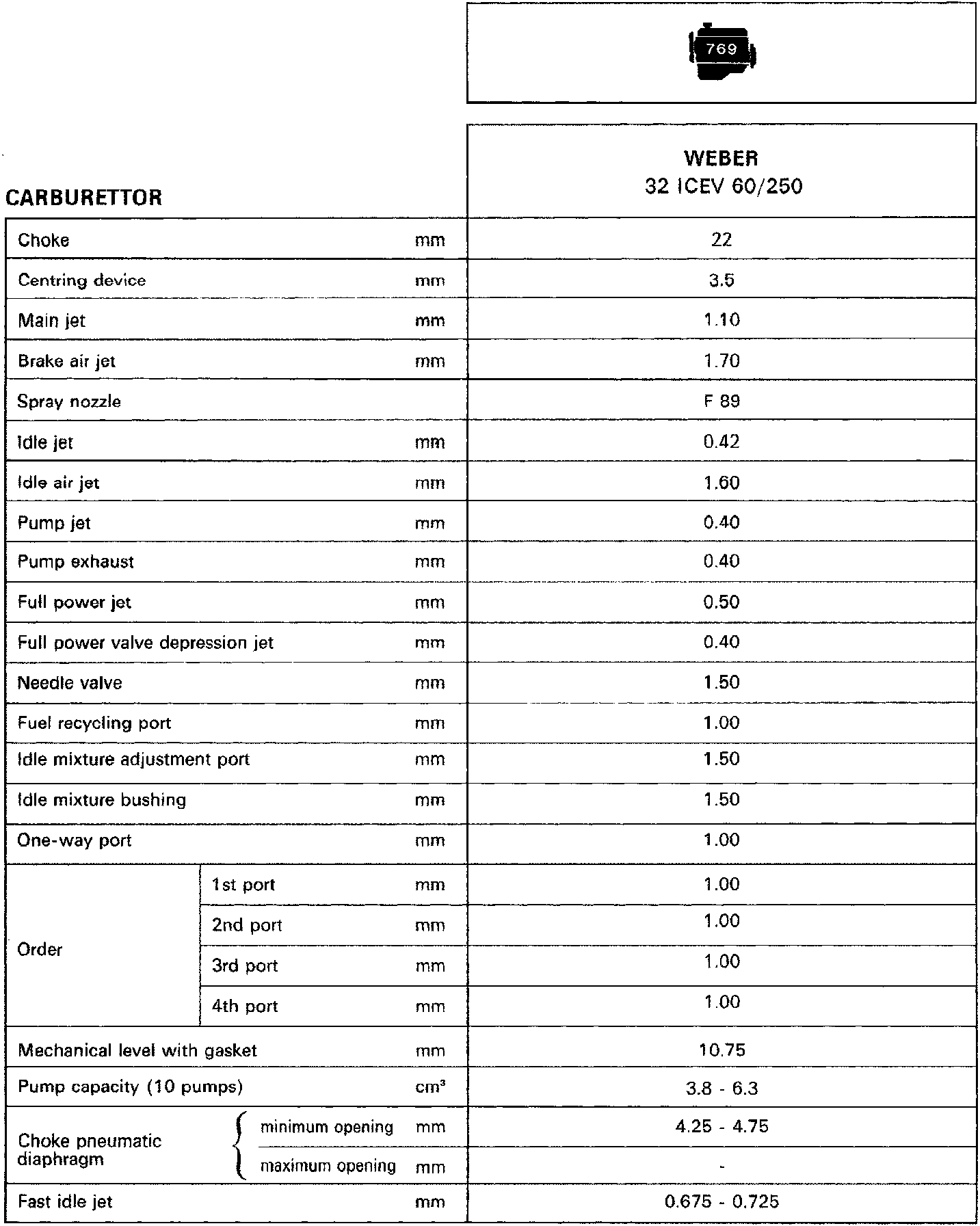

CARBURETTOR			WEBER 32 ICEV 60/250
Choke	mm		22
Centring device	mm		3.5
Main jet	mm		1.10
Brake air jet	mm		1.70
Spray nozzle			F 89
Idle jet	mm		0.42
Idle air jet	mm		1.60
Pump jet	mm		0.40
Pump exhaust	mm		0.40
Full power jet	mm		0.50
Full power valve depression jet	mm		0.40
Needle valve	mm		1.50
Fuel recycling port	mm		1.00
Idle mixture adjustment port	mm		1.50
Idle mixture bushing	mm		1.50
One-way port	mm		1.00
Order	1st port	mm	1.00
	2nd port	mm	1.00
	3rd port	mm	1.00
	4th port	mm	1.00
Mechanical level with gasket	mm		10.75
Pump capacity (10 pumps)	cm³		3.8 - 6.3
Choke pneumatic diaphragm	minimum opening	mm	4.25 - 4.75
	maximum opening	mm	-
Fast idle jet	mm		0.675 - 0.725
