00 Introduction and technical dataFuel system

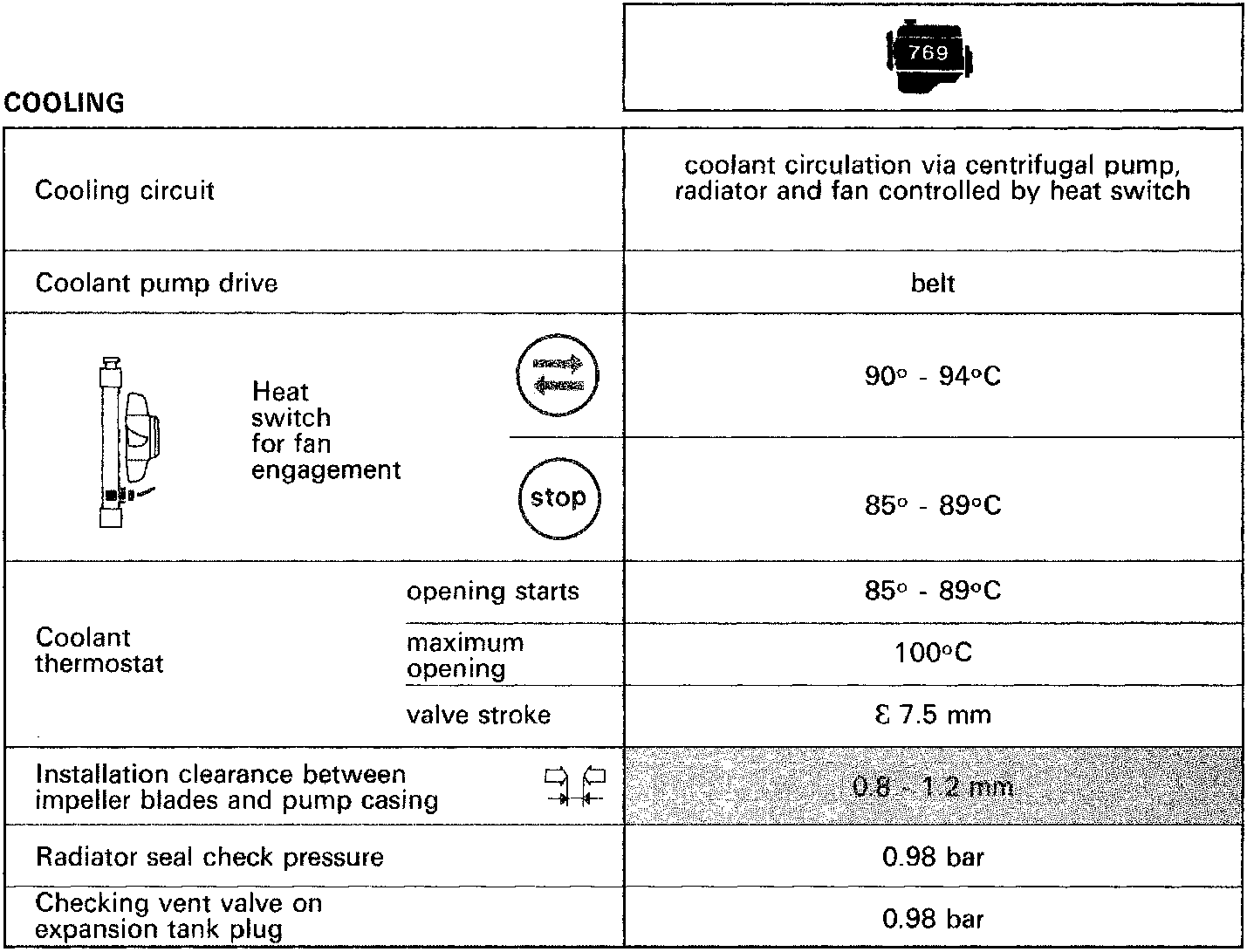

Cooling circuit		coolant circulation via centrifugal pump, radiator and fan controlled by heat switch
Coolant pump drive		belt
	Heat switch for fan engagement	90° - 94°C
	stop	85° - 89°C
Coolant thermostat	opening starts	85° - 89°C
	maximum opening	100°C
	valve stroke	∋ 7.5 mm
Installation clearance between impeller blades and pump casing		0.8 - 1.2 mm
Radiator seal check pressure		0.98 bar
Checking vent valve on expansion tank plug		0.98 bar

FUEL SYSTEM

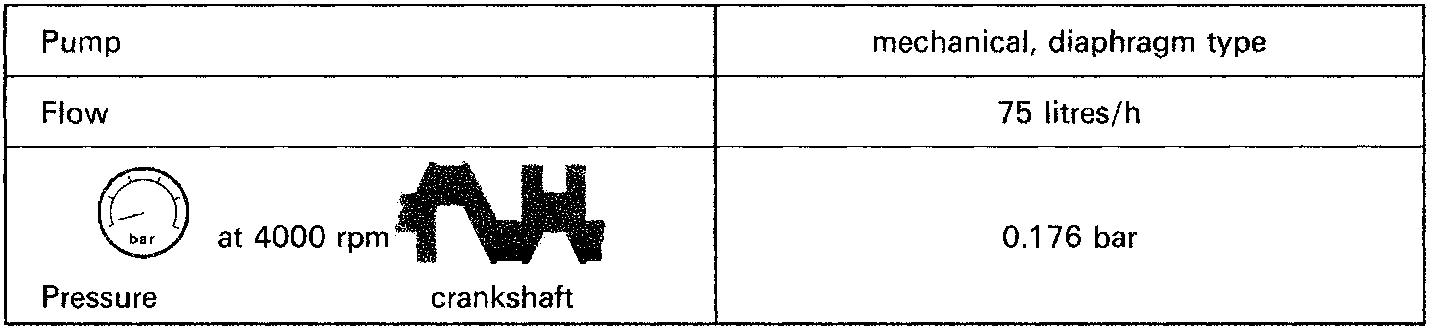

Pump	mechanical, diaphragm type
Flow	75 litres/h
Pressure		0.176 bar

CHECKING ENGINE IDLE SPEED AND CARBON MONOXIDE EMISSIONS

Engine speed	750 - 800/min
CO emissions when idling	%	1.5 ± 0.5
