00 Introduction and technical dataTiming diagram · page 1 of 2

MEASUREMENTS AND TOLERANCES

			769
			Values in mm
17-14 Valve clearance (cold)	for timing adjustment	intake	0.45
		exhaust	0.45
	operation	intake	0.15 ±0.05
		exhaust	0.15 ±0.05

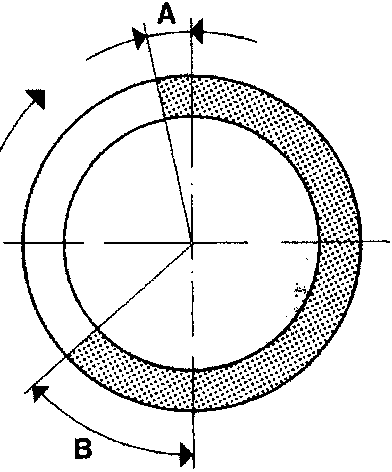

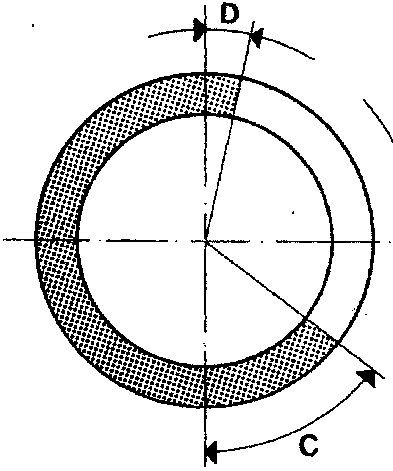

TIMING DIAGRAM

Advance angles

A	Intake	opens before TDC	4°
B		closes after BDC	34°
C	Exhaust	opens before BDC	29°
D		closes after TDC	1°
