Gearbox
- Make
- Fiat
- Model
- Panda (141) Factory Service Manual
- Year
- 1986–2003
- Section
- Technical data (Panda 750 Young) › Gearbox
00 Introduction and technical dataGearbox · page 1 of 2

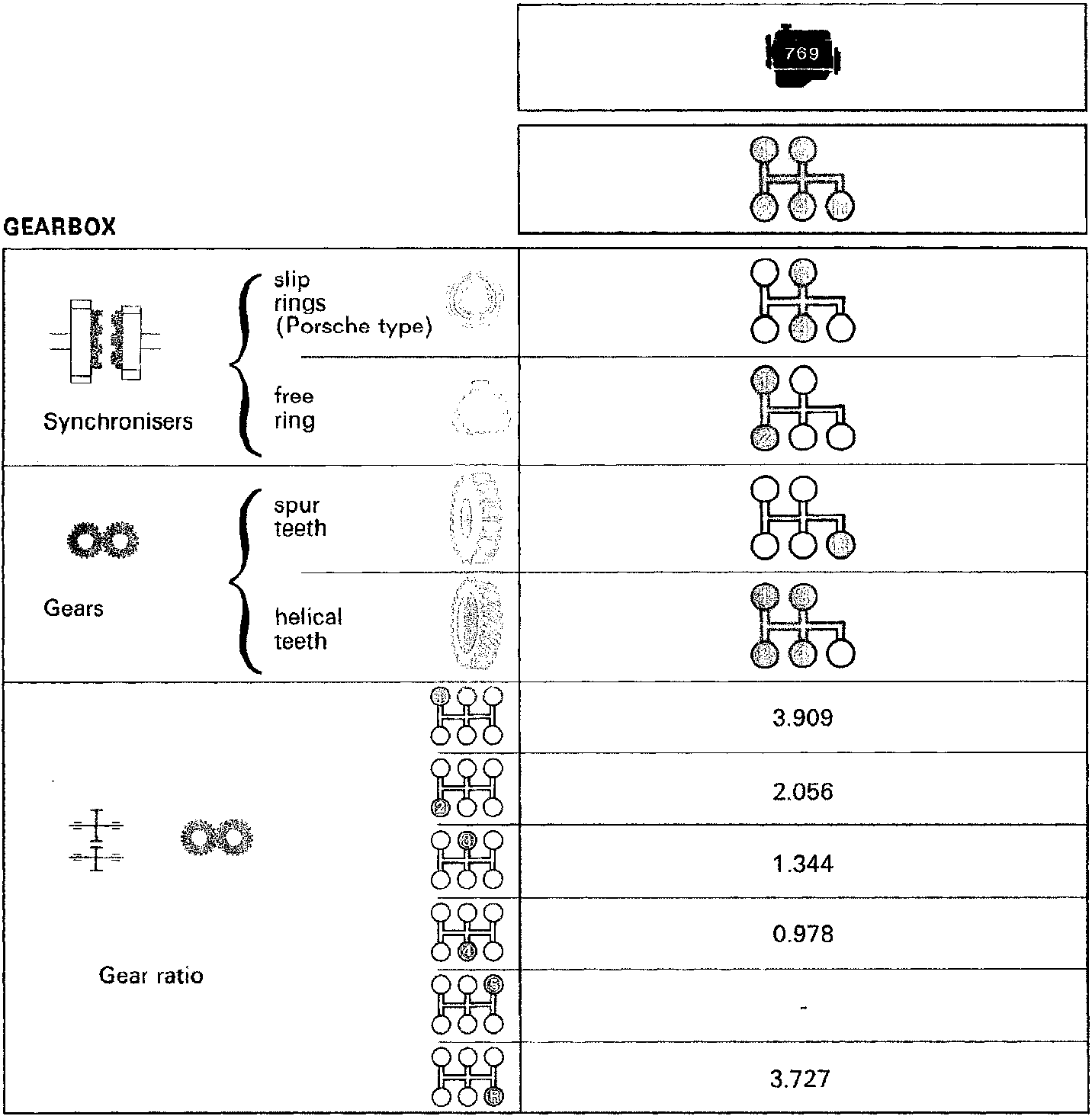

GEARBOX
| 769 | ||
|---|---|---|
| 1st, 2nd, 3rd, 4th, R | ||
| Synchronisers | slip rings (Porsche type) | 3rd, 4th |
| free ring | 1st, 2nd | |
| Gears | spur teeth | R |
| helical teeth | 1st, 2nd, 3rd, 4th | |
| Gear ratio | 1st | 3.909 |
| 2nd | 2.056 | |
| 3rd | 1.344 | |
| 4th | 0.978 | |
| 5th | - | |
| R | 3.727 | |

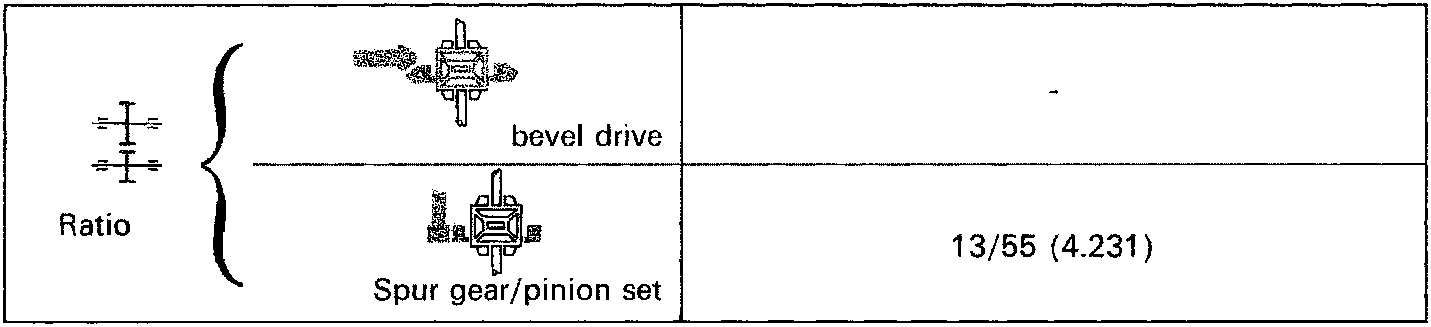

DIFFERENTIAL
