00 Introduction and technical dataWheels

769

WHEELS

	Tyre	type	135 SR 13"
			front	1.8 bar
			rear	2 bar
	Rim	type	4.00 B x 13"

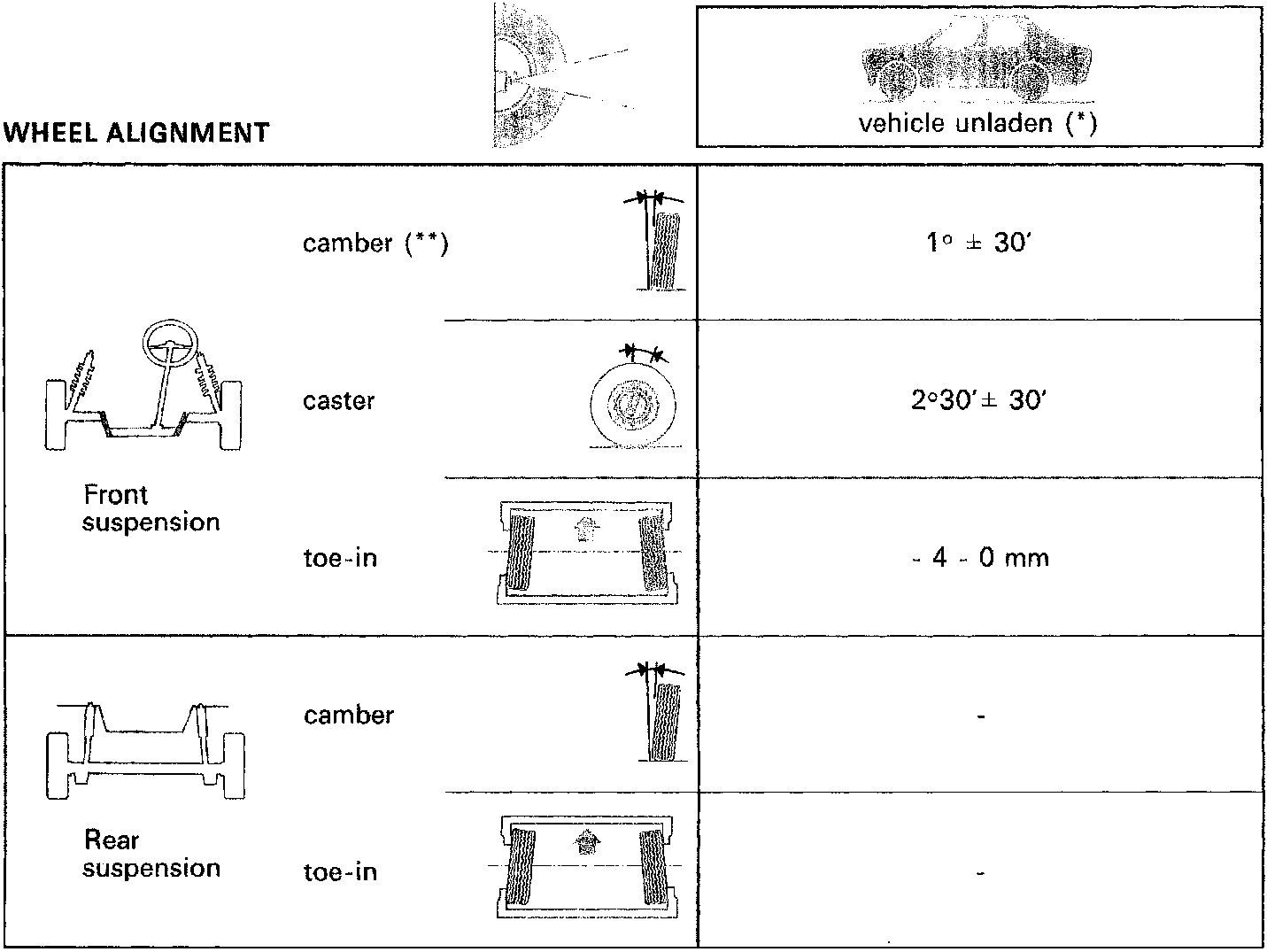

WHEEL ALIGNMENT

	camber (**)		1° ± 30'
	caster		2°30' ± 30'
	Front suspension	toe-in	- 4 - 0 mm
	camber		-
	Rear suspension	toe-in	-

(*) With tyres inflated to specified pressure and car at kerb weight

(**) Non-adjustable angles
