10 EngineAir supply circuit

AIR SUPPLY CIRCUIT

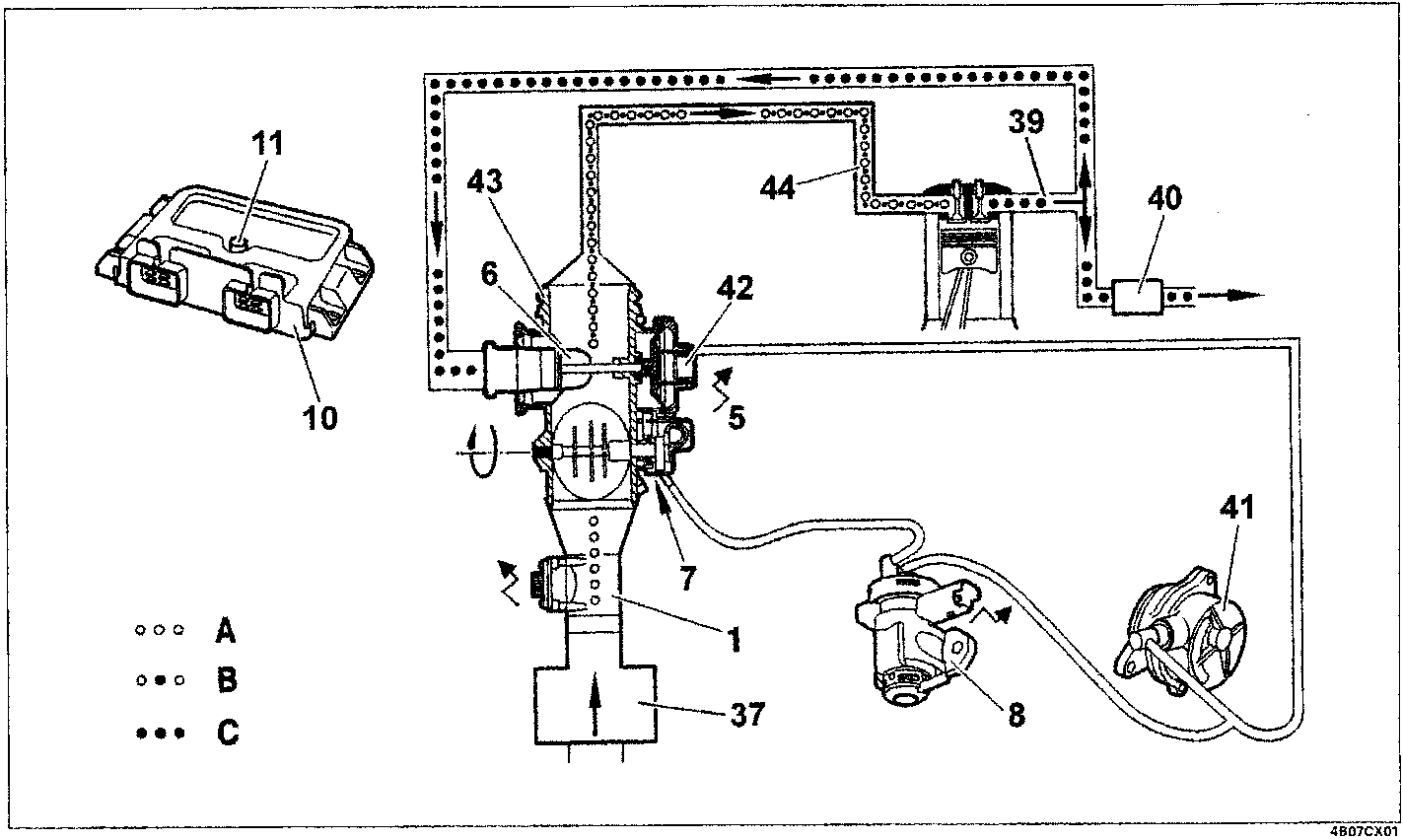

Diagram of the air supply circuit showing components including air flow meter, EGR valve, throttle, solenoid valves, catalyzer, and vacuum pump with numbered callouts 1 through 44. Legend indicates A for air, B for exhaust gas + air, C for exhaust gas.

Air circulation (as shown by the arrows)

A - air

B - exhaust gas + air

C - exhaust gas

Key

  1. Air flow meter + air temperature sensor
  2. Exhaust gas recirculation adjustment solenoid valve EGR
  3. EGR exhaust gas recirculation valve throttle (vacuum operation)
  4. EGR throttle and actuator (vacuum operation)
  5. EGR throttle opening solenoid valve
  6. Diesel injection control unit
  7. Atmospheric pressure sensor (built into the injection control unit)
  8. Air filter
  9. Exhaust gas manifold
  10. Catalyzer
  11. Vacuum pump
  12. EGR pneumatic capsule
  13. Air flow rate hose
  14. Air intake manifold

NOTE EGR - exhaust gas recirculation.
