Fiat Scudo Factory Service Manual (1996-2006)02 · 10 Engine
02 · Engine

Heater plugs

Make
Fiat
Model
Scudo Factory Service Manual
Year
1996–2006
Section
Fuel feed system (1868 D 2002 update) › Heater plugs
10 EngineHeater plugs

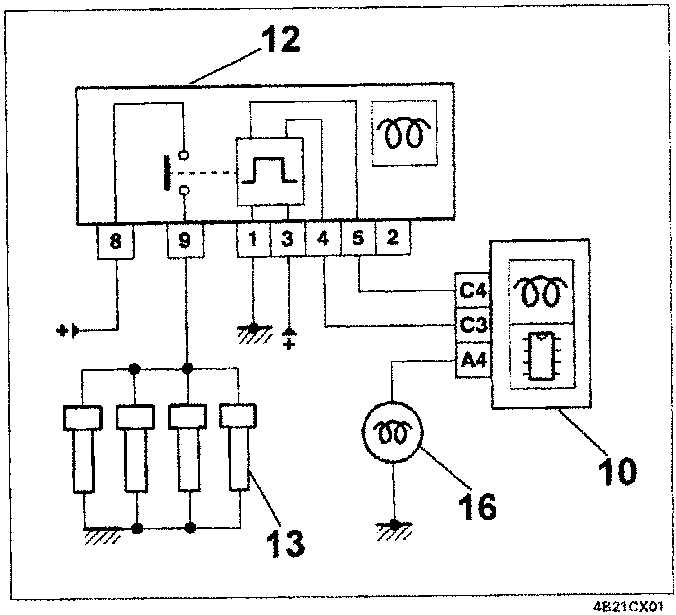

Schematic diagram of electrical connections showing the engine management control unit, pre/post-heating control unit, heater plugs, and heater plugs warning light with numbered callouts 10, 12, 13, 16 and connector pins 8, 9, 1, 3, 4, 5, 2, C4, C3, A4

Diagram showing electrical connections

  1. Engine management control unit
  2. Pre/post-heating control unit
  3. Heater plugs
  4. Heater plugs warning light

HEATER PLUGS

Function

The heater plugs (13) allow a rapid temperature increase in the combustion chambers during starting.

Description

The heater plugs consist of an electrical hetaing resistance and a protective metal casing.

PRE/POST-HEATING CONTROL UNIT

Function

The control unit (12) provides an electrical supply for the heater plugs when the injection control unit is operated.

Description

The pre-heating and post-heating times are determined by the injection control unit. If the pre-heating control unit is not working properly, the injection control unit memorizes the error.

Electrical specifications

Destination of connector contacts:

  • pin 1: earth
  • pin 2: not used
  • pin 3: +12V after contact
  • pin 4: engine management control unit input
  • pin 5: pre-heating control unit diagnosis
  • pin 8: +12V permanent
  • pin 9: heater plugs supply
Side view drawing of a single heater plug with callout number 13

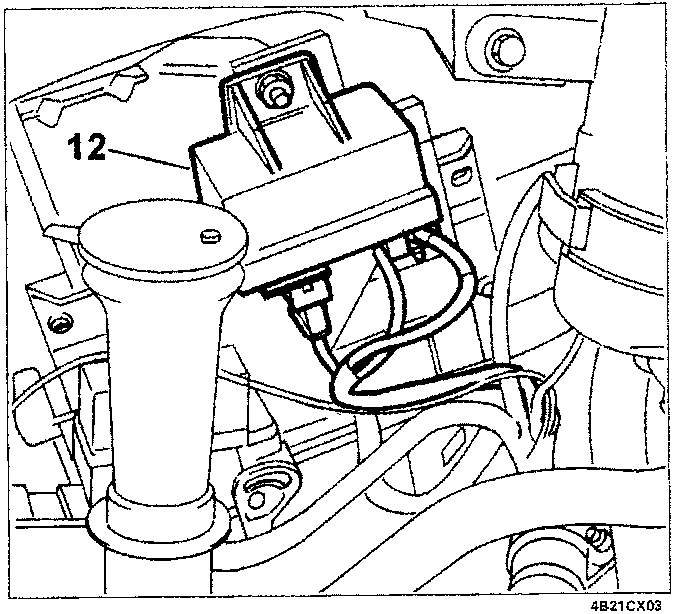

Photographic view of the pre/post-heating control unit installed on the engine block with callout number 12

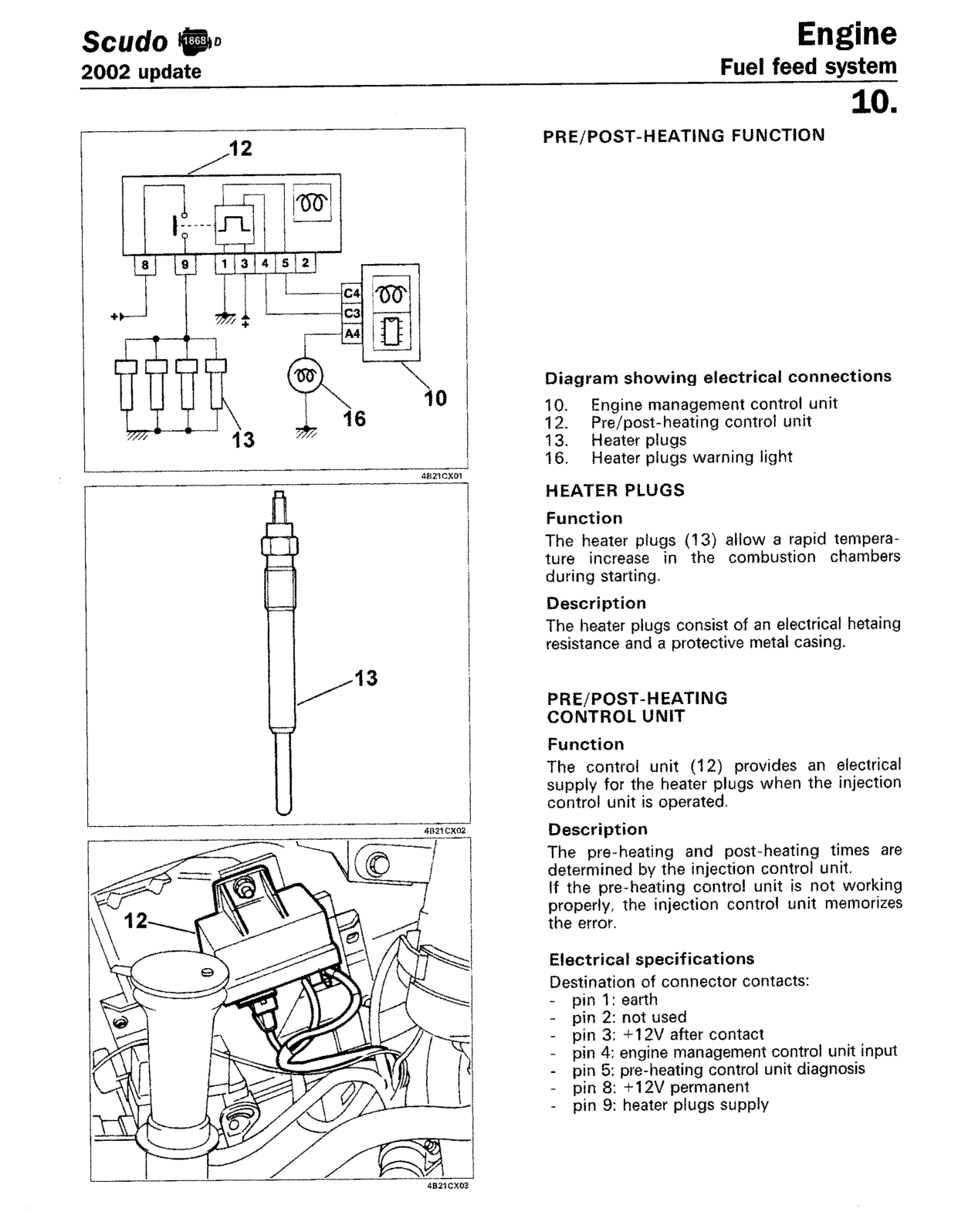

Original page
