Front view

FRONT VIEW

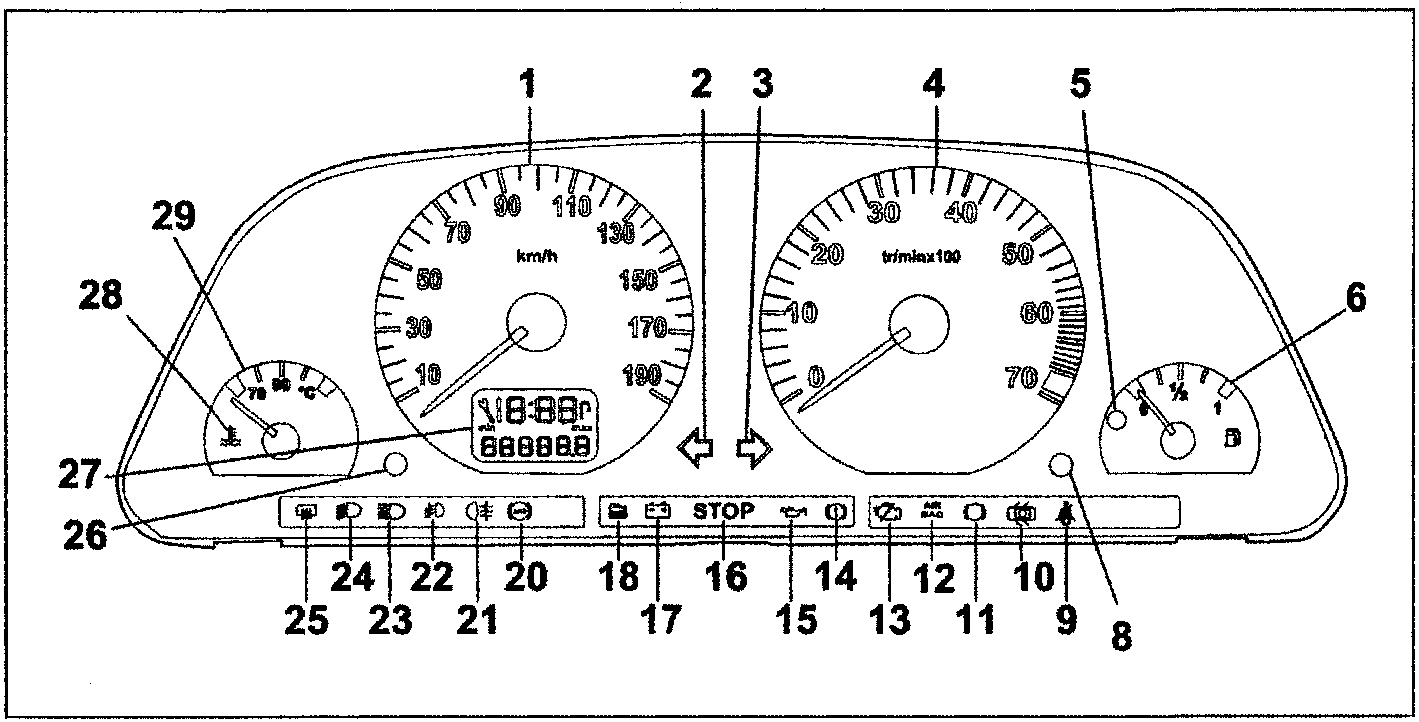

LEGEND

1. Tachometer (4630)
2. Optical indicator (green) left direction light (V2320)
3. Optical indicator (green) right direction light (V2330)
4. RPM counter (4210)
5. Optical indicator (yellow) fuel reserve (V4300)
6. Fuel level indicator (4310)
7. Brightness adjustment button for control panel and clock settings (3050)
8. Optical indicator (red) seat belts unfastened (V4730)
9. Optical indicator (red) open doors warning (V4700)
10. Optical indicator (yellow) brake pad wear (V4430)
11. Optical indicator (yellow) AIR-BAG system fault (V6560)
12. Optical indicator (yellow) injection system fault (V1300)
13. Optical indicator (red) handbrake engaged and insufficient brake fluid level (V4420)
14. Optical indicator (red) insufficient engine oil pressure warning (V4110)
15. Optical indicator (red) general fault warning (V0004)
16. Optical indicator (red) insufficient generator charge (V1000)
17. Optical indicator (red) insufficient coolant level warning (V4010)
18. Optical indicator (yellow) ABS anti-lock wheel circuit fault (V7000)
19. Optical indicator (yellow) rear fog lights (V2000)
20. Optical indicator (yellow) front fog lights (V2660)
21. Optical indicator (blue) main beam headlights (V2620)
22. Optical indicator (green) dipped beam headlights (V2610)
23. Optical indicator (yellow) heated rear window (V8110)
24. Maintenance indicator reset/partial odometer reset button
25. Maintenance indicator, engine oil level indicator, partial/total odometer indicator, digital clock (7220/4102)
26. Optical indicator (red) excessive engine coolant temperature (V4020)
27. Engine coolant temperature indicator (4026)
