Instrument panel (2003 update) › Instrument panel
55 Electrical equipmentInstrument panel

Instrument panel – diagram from the 55 Electrical equipment chapter of the Fiat Scudo Factory Service Manual (1996-2006) factory manual.

Instrument panel

LUXE INSTRUMENT CLUSTER VERSION

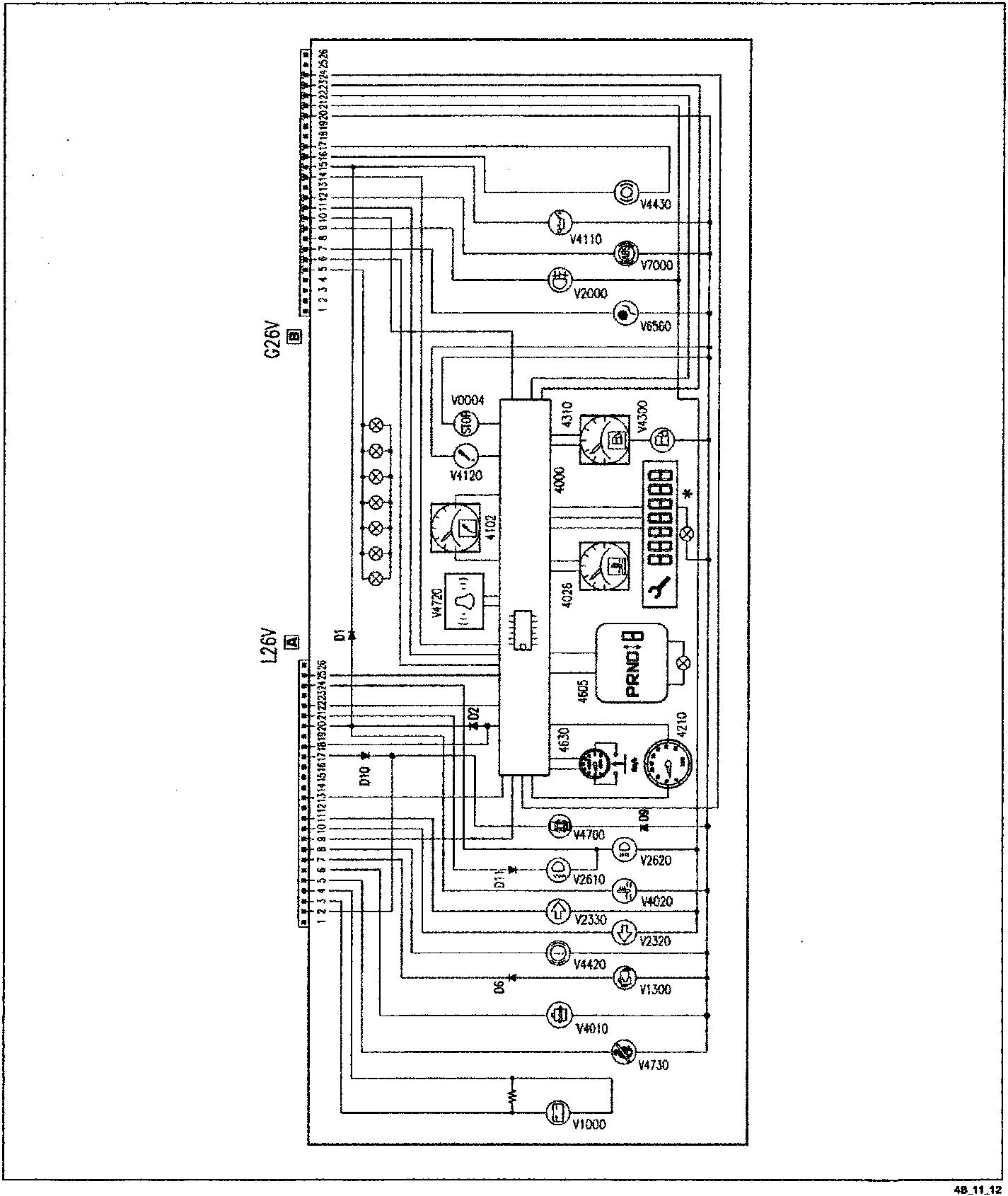

Wiring diagram inside instrument cluster

Schematic wiring diagram of the instrument cluster showing connectors C26V and L26V, various components including V4430, V4110, V7000, V2000, V6560, V0004, V4120, 4102, V4720, D1, D2, D10, 4000, 4310, 4026, 4500, 4605, PRND, 4630, 4210, V4700, V2620, V2610, D11, V4020, V2330, V2320, V4420, V1300, D6, V4010, V4730, and V1000.

* Maintenance indicator display
