Front view

FRONT VIEW

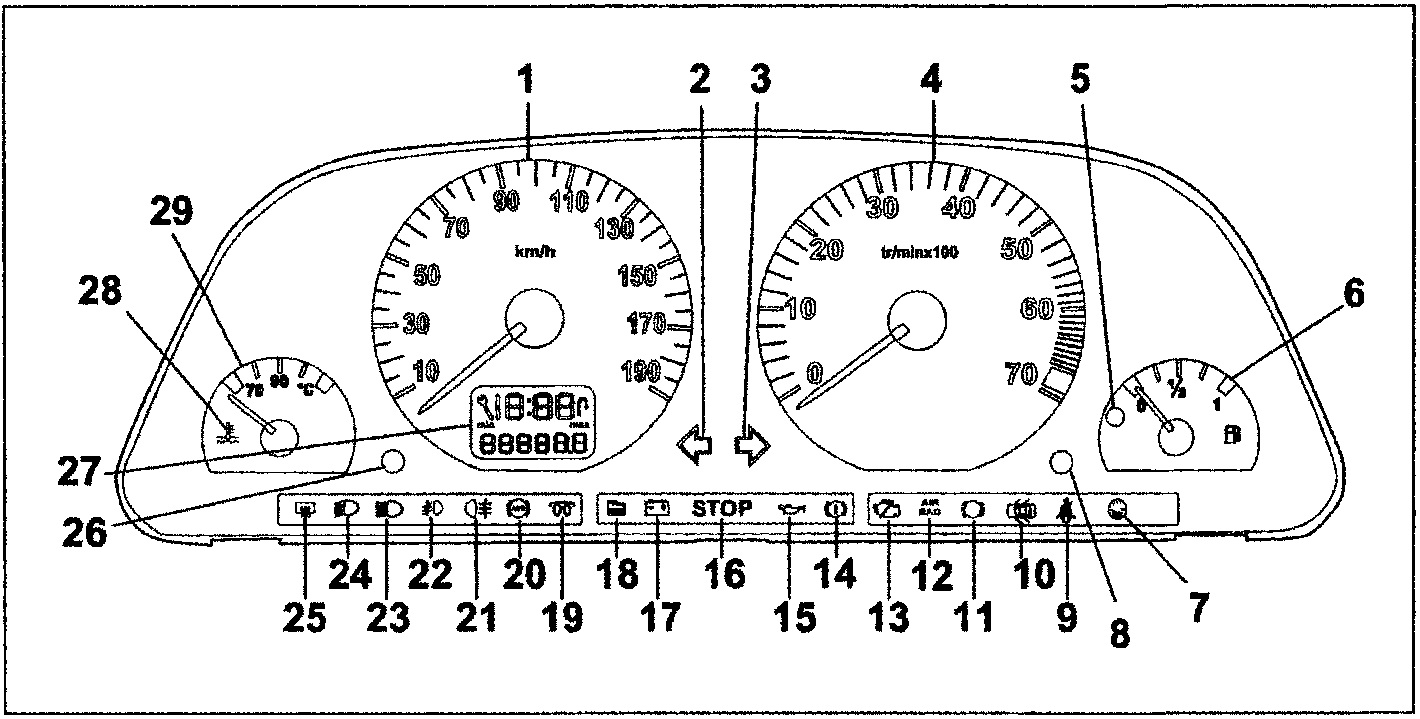

LEGEND

1. Speedometer (4630)
2. Optical indicator (green) left direction light (V2320)
3. Optical indicator (green) right direction light (V2330)
4. Tachometer (4210)
5. Optical indicator (yellow) fuel reserve (V4300)
6. Fuel level indicator (4310)
7. Optical indicator (yellow) water in fuel presence (V4050)
8. Button for adjusting dashboard brightness and clock settings (3050)
9. Optical indicator (red) seat belts unfastened (V4730)
10. Optical indicator (red) open doors warning (V4700)
11. Optical indicator (yellow) brake pad wear (V4430)
12. Optical indicator (yellow) AIR-BAG system malfunction warning (V6560)
13. Optical indicator (yellow) injection system malfunction (V1300)
14. Optical indicator (red) handbrake engaged and insufficient brake fluid level (V4420)
15. Optical indicator (red) insufficient engine oil pressure warning (V4110)
16. Optical indicator (red) general malfunction warning (V0004)
17. Optical indicator (red) insufficient generator charge (V1000)
18. Optical indicator (red) insufficient coolant level warning (V4010)
19. Optical indicator (yellow) glow plug preheating (V1150)
20. Optical indicator (yellow) ABS anti-lock wheel circuit malfunction (V7000)
21. Optical indicator (yellow) rear fog lights (V2000)
22. Optical indicator (yellow) front fog lights (V2660)
23. Optical indicator (blue) main beam headlights (V2620)
24. Optical indicator (green) dipped beam headlights (V2610)
25. Optical indicator (yellow) heated rear window (V8110)
26. Maintenance indicator adjustment button/partial odometer reset
27. Maintenance indicator, engine oil level indicator, partial/total odometer indicator, clock (7220/4102)
28. Optical indicator (red) excessive engine coolant temperature (V4020)
29. Coolant temperature indicator (4026)
