55 Electrical equipmentVersion with automatic gearbox
Version with automatic gearbox – diagram from the 55 Electrical equipment chapter of the Fiat Scudo Factory Service Manual (1996-2006) factory manual.
VERSION WITH AUTOMATIC GEARBOX

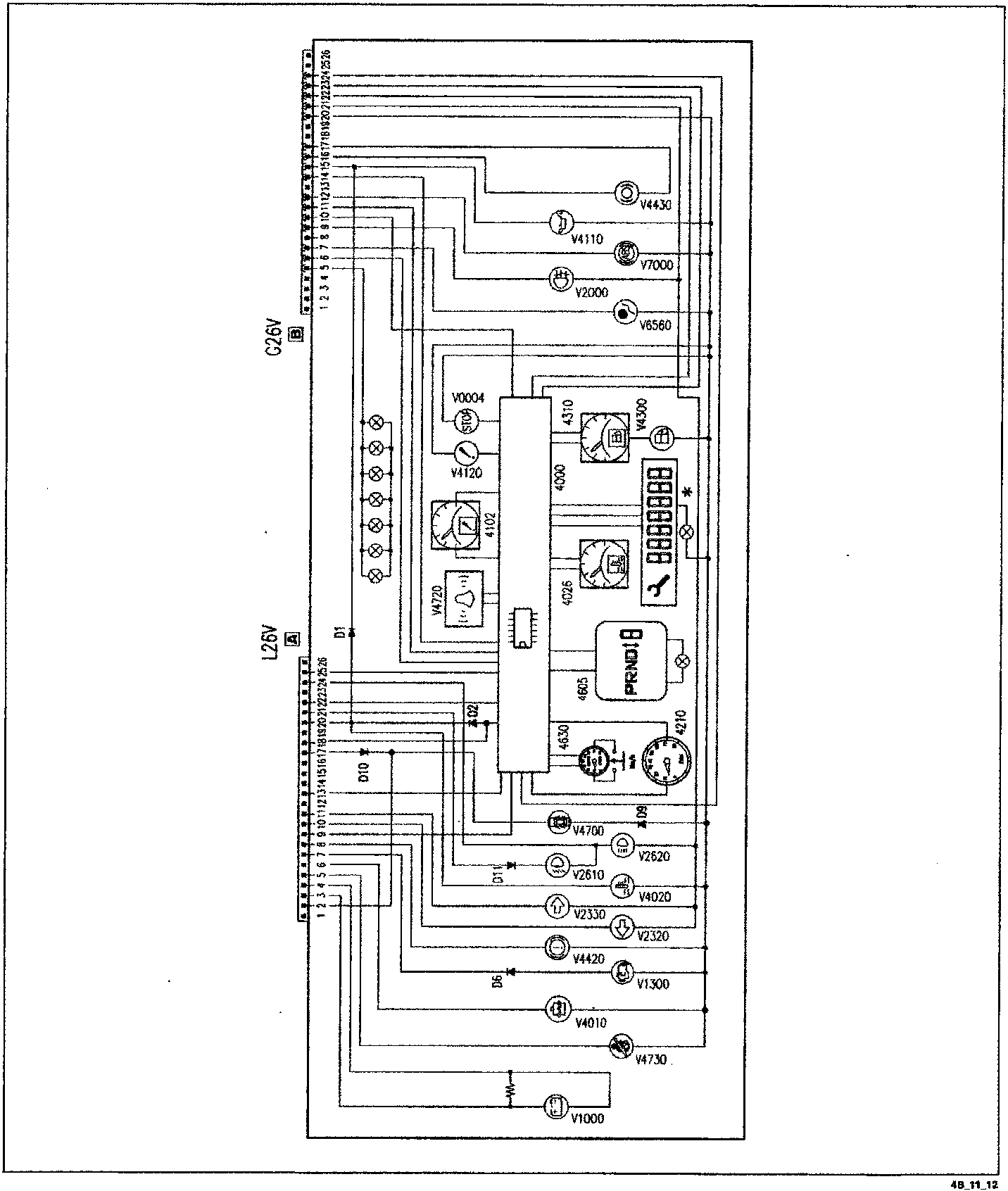

Internal wiring diagram of the instrument panel
* Maintenance indicator display
