Version with automatic gearbox

VERSION WITH AUTOMATIC GEARBOX

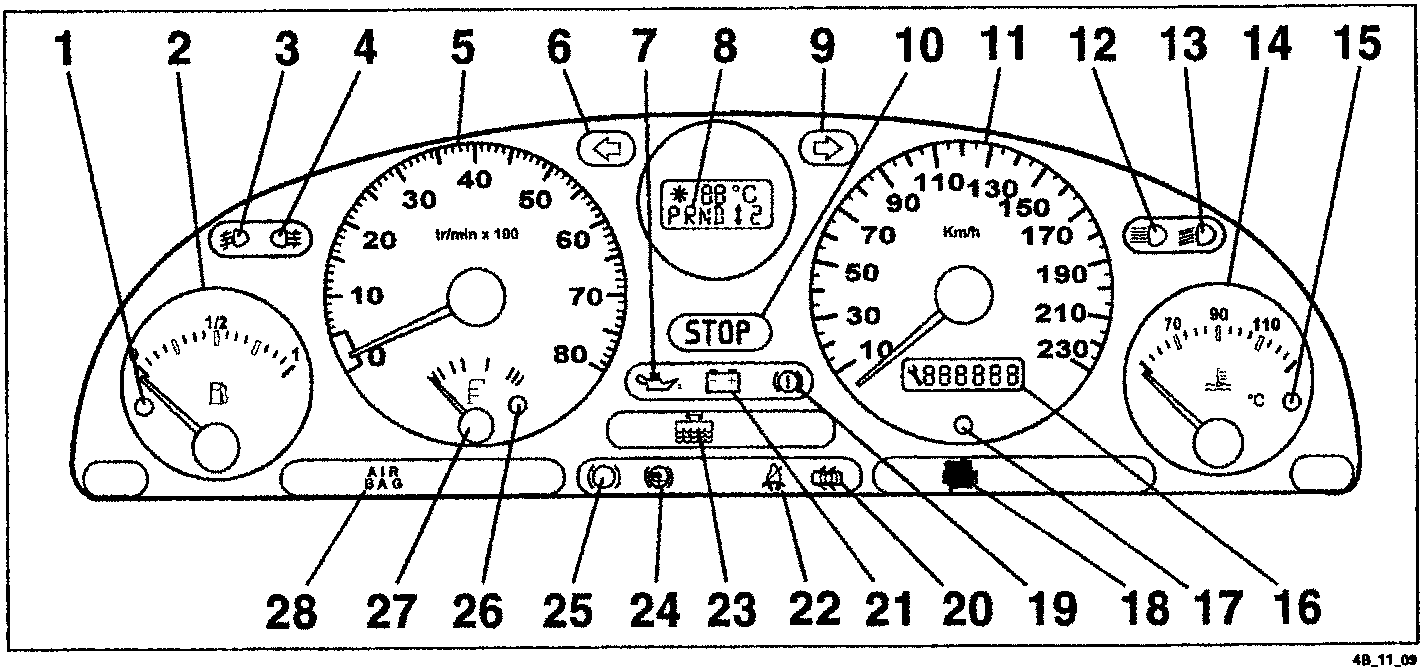

FRONT VIEW

LEGEND

1. Optical indicator (yellow) fuel reserve (V4300)
2. Indicator fuel level (4310)
3. Optical indicator (yellow) front fog lights (V2660)
4. Optical indicator (yellow) rear fog light (V2000)
5. Tachometer (4210)
6. Optical indicator (green) left direction indicator (V2320)
7. Optical indicator (red) insufficient engine oil pressure warning (V4110)
8. Display automatic gearbox selection (4605)/Indicator outside temperature (7226)
9. Optical indicator (green) right direction indicator (V2330)
10. Optical indicator (red) general malfunction (V0004)
11. Speedometer (4630)
12. Optical indicator (blue) high beam headlights (V2620)
13. Optical indicator (green) dipped beam headlights (V2610)
14. Indicator engine coolant temperature (4026)
15. Optical indicator (red) excessive engine coolant temperature (V4020)
16. Maintenance indicator, indicator trip/total odometer, clock
17. Button adjustment of maintenance indicator/resetting trip odometers
18. Optical indicator (yellow) injection system malfunction (V1300)
19. Optical indicator (red) handbrake engaged and insufficient brake fluid level (V4420)
20. Optical indicator (red) doors open warning (V4700)
21. Optical indicator (red) insufficient generator recharge (V1000)
22. Optical indicator (red) seat belts not fastened (V4730)
23. Optical indicator (red) insufficient coolant level warning (V4010)
24. Optical indicator (yellow) ABS anti-lock braking system malfunction (V7000)
25. Optical indicator (yellow) brake pad wear (V4430)
26. Optical indicator insufficient engine oil level (V4120)
27. Indicator engine oil level (4102)
28. Optical indicator (yellow) Air-Bag system malfunction warning (V6560)
