Version with automatic gearbox (page 2 of 2)
- Make
- Fiat
- Model
- Scudo Factory Service Manual
- Year
- 1996–2006
- Section
- Instrument panel (2003 update)
55 Electrical equipmentVersion with automatic gearbox · page 2 of 2
Version with automatic gearbox (page 2 of 2) – diagram from the 55 Electrical equipment chapter of the Fiat Scudo Factory Service Manual (1996-2006) factory manual.
VERSION WITH AUTOMATIC GEARBOX

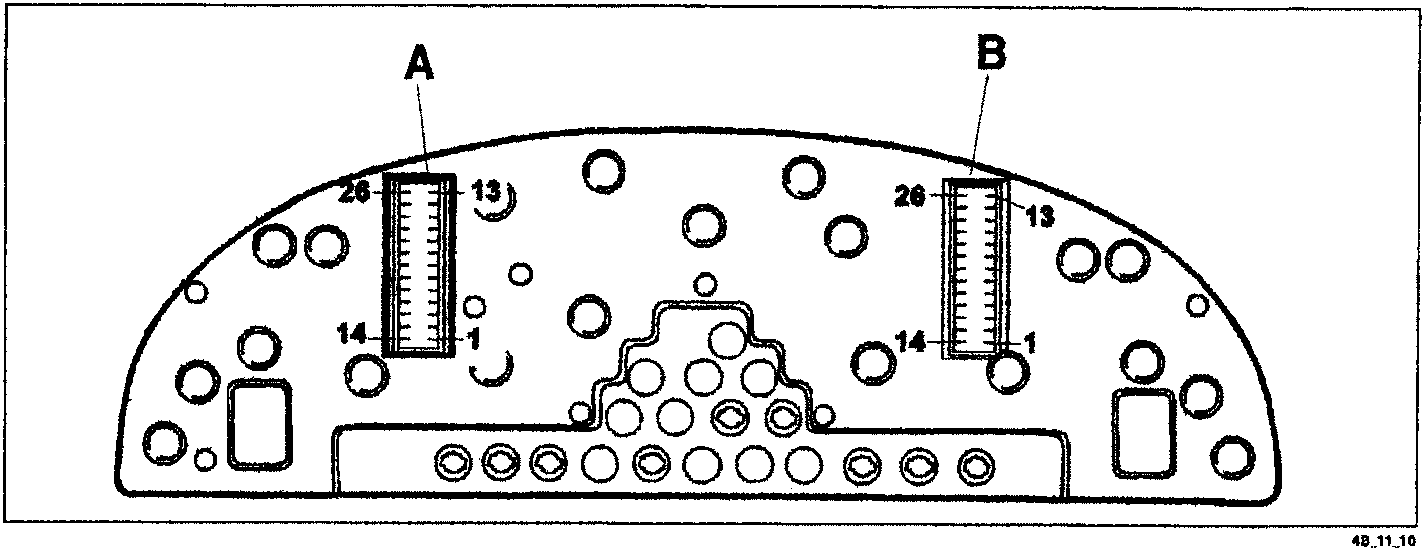

REAR VIEW
- A Connector A engagement
- B Connector B engagement
