Version with luxe instrument cluster

VERSION WITH LUXE INSTRUMENT CLUSTER

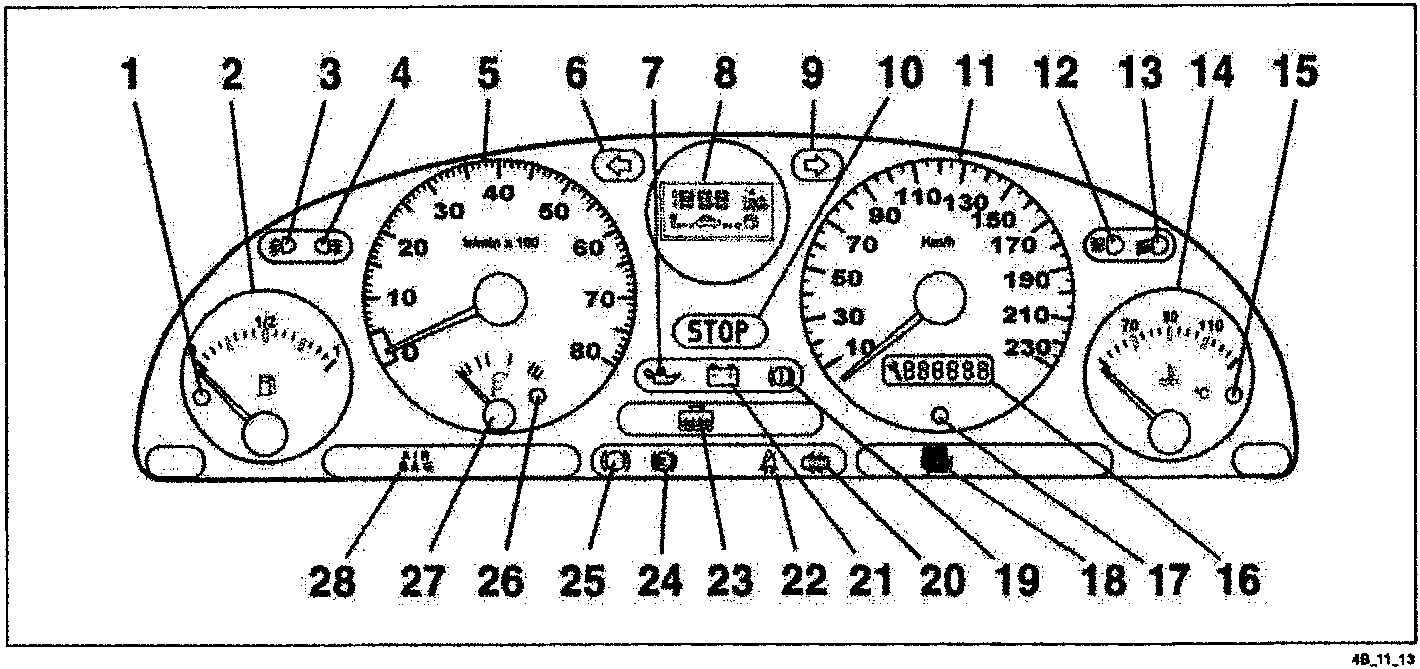

FRONT VIEW

LEGEND

1. Optical indicator (yellow) fuel reserve (V4300)
2. Fuel level indicator (4310)
3. Optical indicator (yellow) front fog lights (V2660)
4. Optical indicator (yellow) rear fog light (V2000)
5. Tachometer (4210)
6. Optical indicator (green) left direction indicator (V2320)
7. Optical indicator (red) insufficient engine oil pressure warning (V4110)
8. External temperature/trip computer display
9. Optical indicator (green) right direction indicator (V2330)
10. Optical indicator (red) general malfunction warning (V0004)
11. Speedometer (4630)
12. Optical indicator (blue) high beam headlights (V2620)
13. Optical indicator (green) low beam headlights (V2610)
14. Engine coolant temperature indicator (4026)
15. Optical indicator (red) excessive engine coolant temperature (V4020)
16. Maintenance indicator, partial/total odometer, clock
17. Maintenance indicator adjustment button/partial odometer reset
18. Optical indicator (yellow) injection system malfunction (V1300)
19. Optical indicator (red) handbrake engaged and insufficient brake fluid level (V4420)
20. Optical indicator (red) doors open warning (V4700)
21. Optical indicator (red) insufficient generator charge (V1000)
22. Optical indicator (red) seat belts unfastened (V4730)
23. Optical indicator (red) insufficient coolant level warning (V4010)
24. Optical indicator (yellow) ABS anti-lock braking circuit malfunction (V7000)
25. Optical indicator (yellow) brake pad wear (V4430)
26. Optical indicator insufficient engine oil level (V4120)
27. Engine oil level indicator (4102)
28. Optical indicator (yellow) Air-Bag system malfunction warning (V6560)
