Fiat Scudo Factory Service Manual (1996-2006)06 · 55 Electrical equipment
06 · Electrical

Instrument panel

Make
Fiat
Model
Scudo Factory Service Manual
Year
1996–2006
Section
Instrument panel (2003 update) › Instrument panel
55 Electrical equipmentInstrument panel

Instrument panel – diagram from the 55 Electrical equipment chapter of the Fiat Scudo Factory Service Manual (1996-2006) factory manual.

Instrument panel

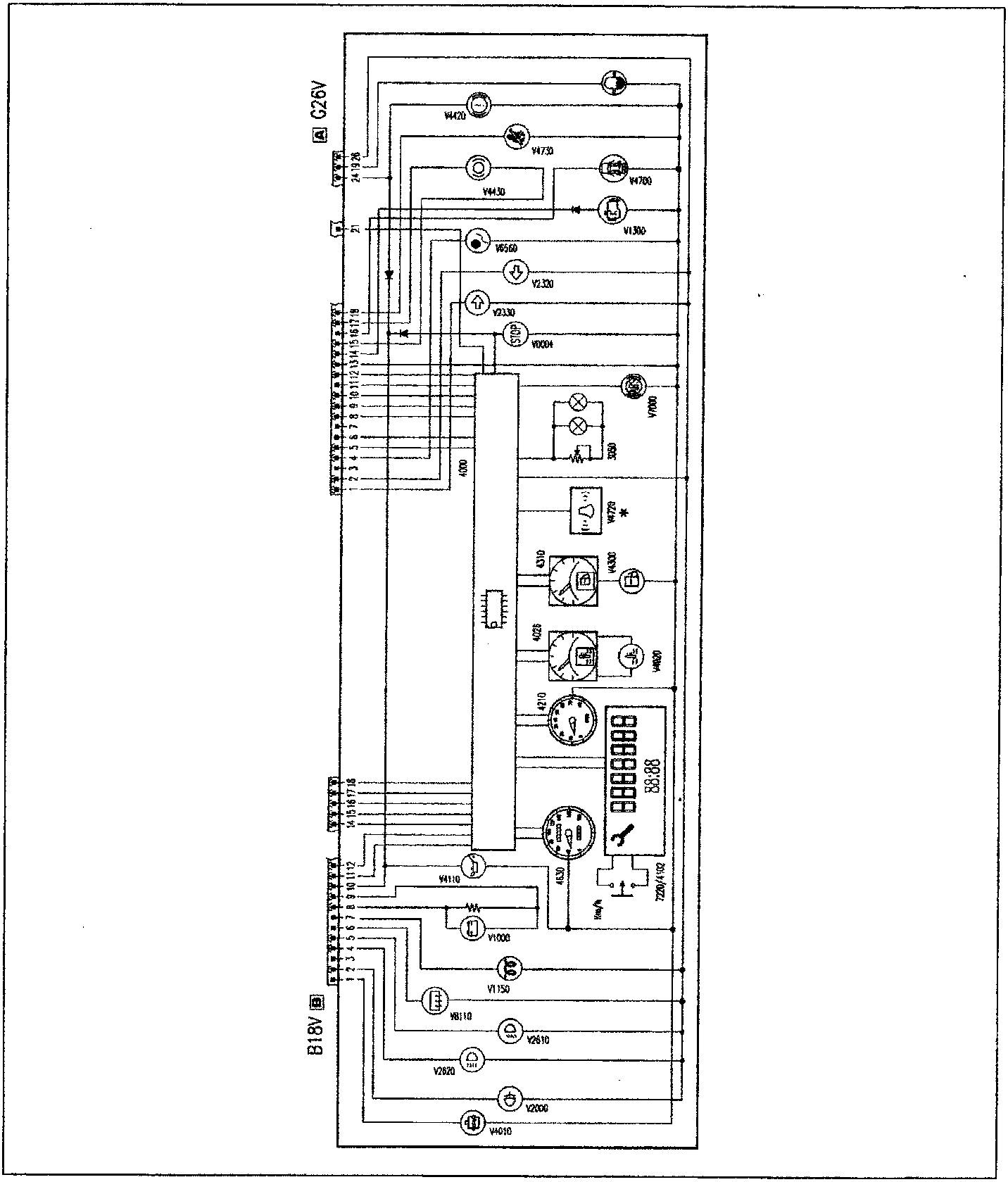

Internal wiring diagram of instrument panel

Electrical schematic of the instrument panel with connectors C26V and B18V, components V4120, V4730, V4430, V4700, V1300, V6560, V2320, V2330, V0004, V0000, 3050, V4720, 4310, V4300, 4029, V4000, 4210, 4530, T220/4102, V4110, V1000, V1150, V6110, V2610, V2620, V2000, V4610 and control unit 4000

* Speed limit exceedance acoustic indicator
