55 Electrical equipment55. Instrument panel connections

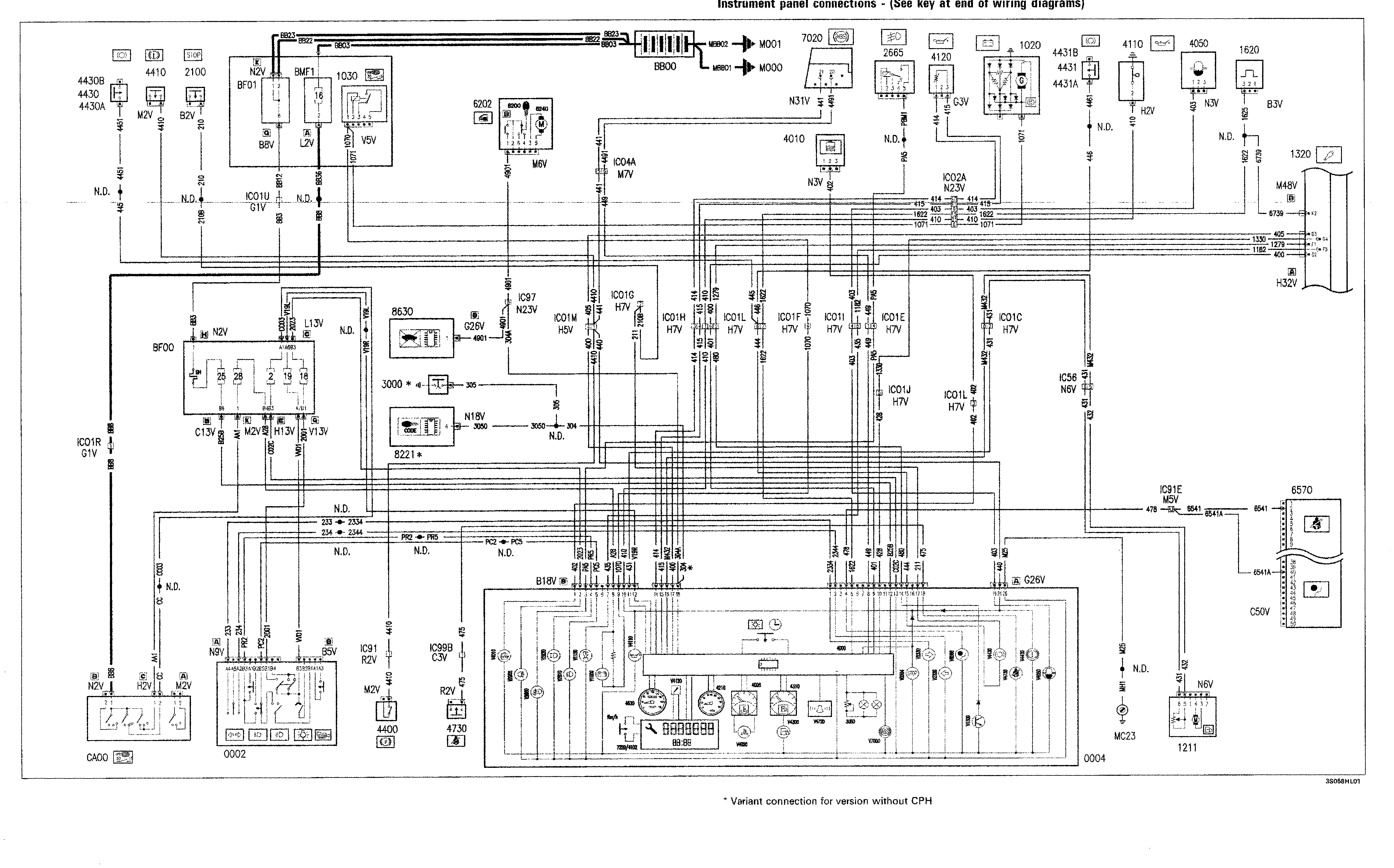

55. Instrument panel connections – diagram from the 55 Electrical equipment chapter of the Fiat Scudo Factory Service Manual (1996-2006) factory manual.
55. Instrument panel connections
* Variant connection for version without CPH
