Engine cooling with one fan
- Make
- Fiat
- Model
- Scudo Factory Service Manual
- Year
- 1996–2006
- Section
- Wiring diagrams (2002 update) › Engine cooling with one fan
‹ Prev Engine cooling with one fan (without air conditioning)Next › Heated rear windscreen and warning light - Headlamp washers
55 Electrical equipmentEngine cooling with one fan

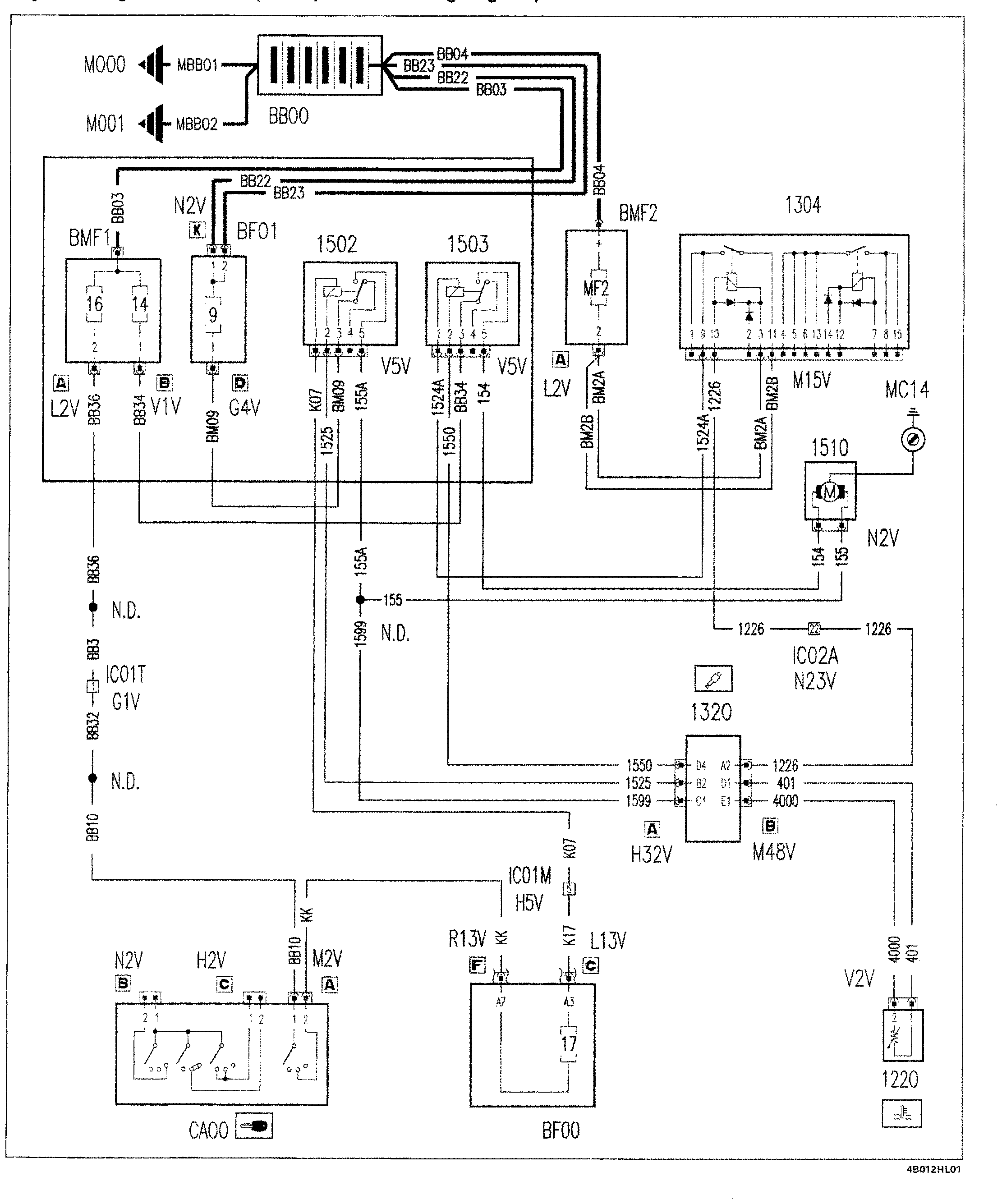

Engine cooling with one fan – diagram from the 55 Electrical equipment chapter of the Fiat Scudo Factory Service Manual (1996-2006) factory manual.
