55 Electrical equipmentAutomatic transmission

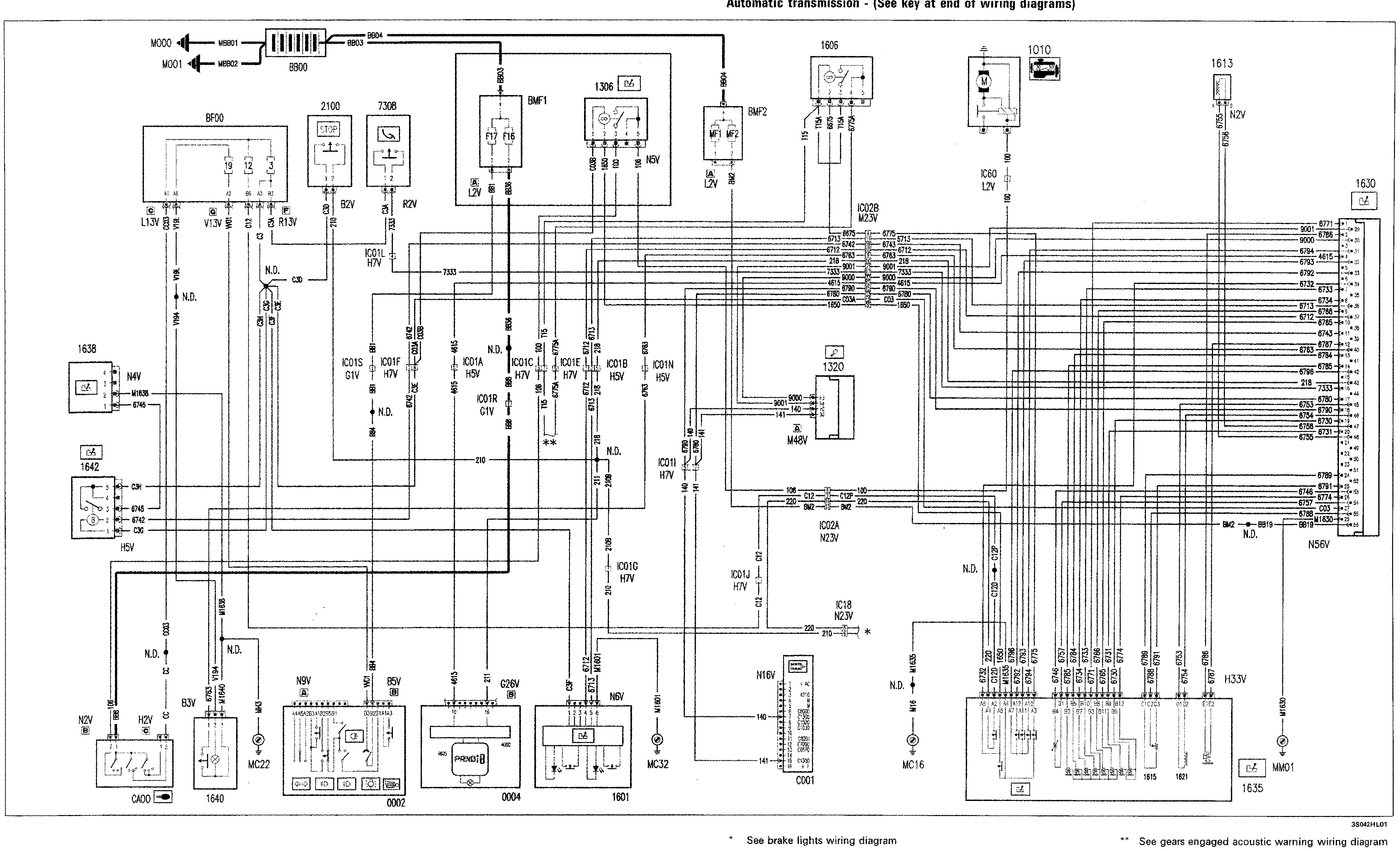

Automatic transmission – diagram from the 55 Electrical equipment chapter of the Fiat Scudo Factory Service Manual (1996-2006) factory manual.
Automatic transmission
* See brake lights wiring diagram
** See gears engaged acoustic warning wiring diagram
