Radio
- Make
- Fiat
- Model
- Scudo Factory Service Manual
- Year
- 1996–2006
- Section
- Wiring diagrams (2002 update) › Radio
‹ Prev Electrically adjustable, heated rear view mirrorsNext › Anti-lock brakes (A.B.S.) and failure warning light
55 Electrical equipmentRadio

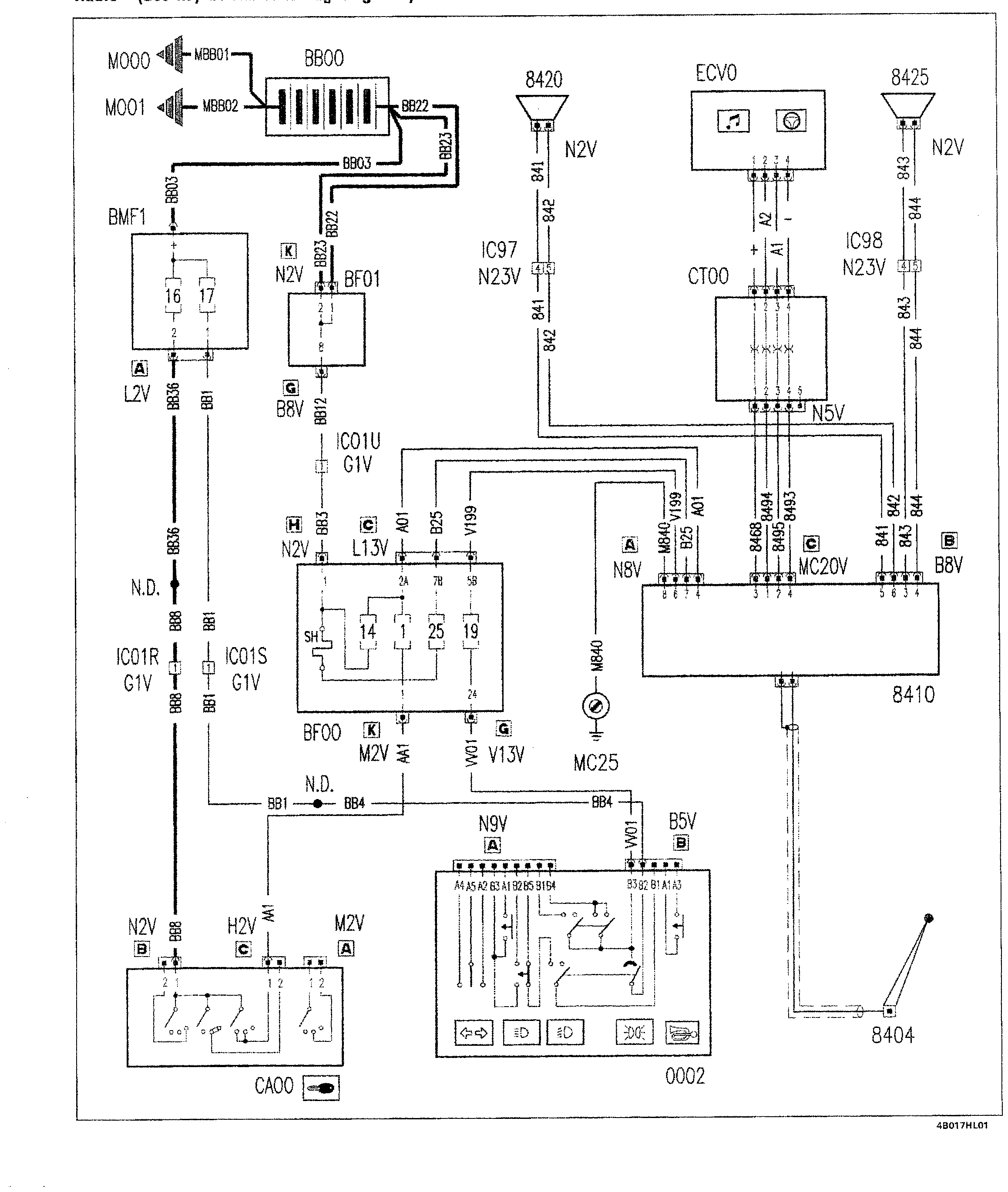

Radio – diagram from the 55 Electrical equipment chapter of the Fiat Scudo Factory Service Manual (1996-2006) factory manual.
