Side lights - No. plate lights
- Make
- Fiat
- Model
- Scudo Factory Service Manual
- Year
- 1996–2006
- Section
- Wiring diagrams (2002 update) › Side lights - No. plate lights
‹ Prev Explanation for reading wiring diagramNext › Fog lights and warning light - Rear fog lamps and warning light
55 Electrical equipmentSide lights - No. plate lights

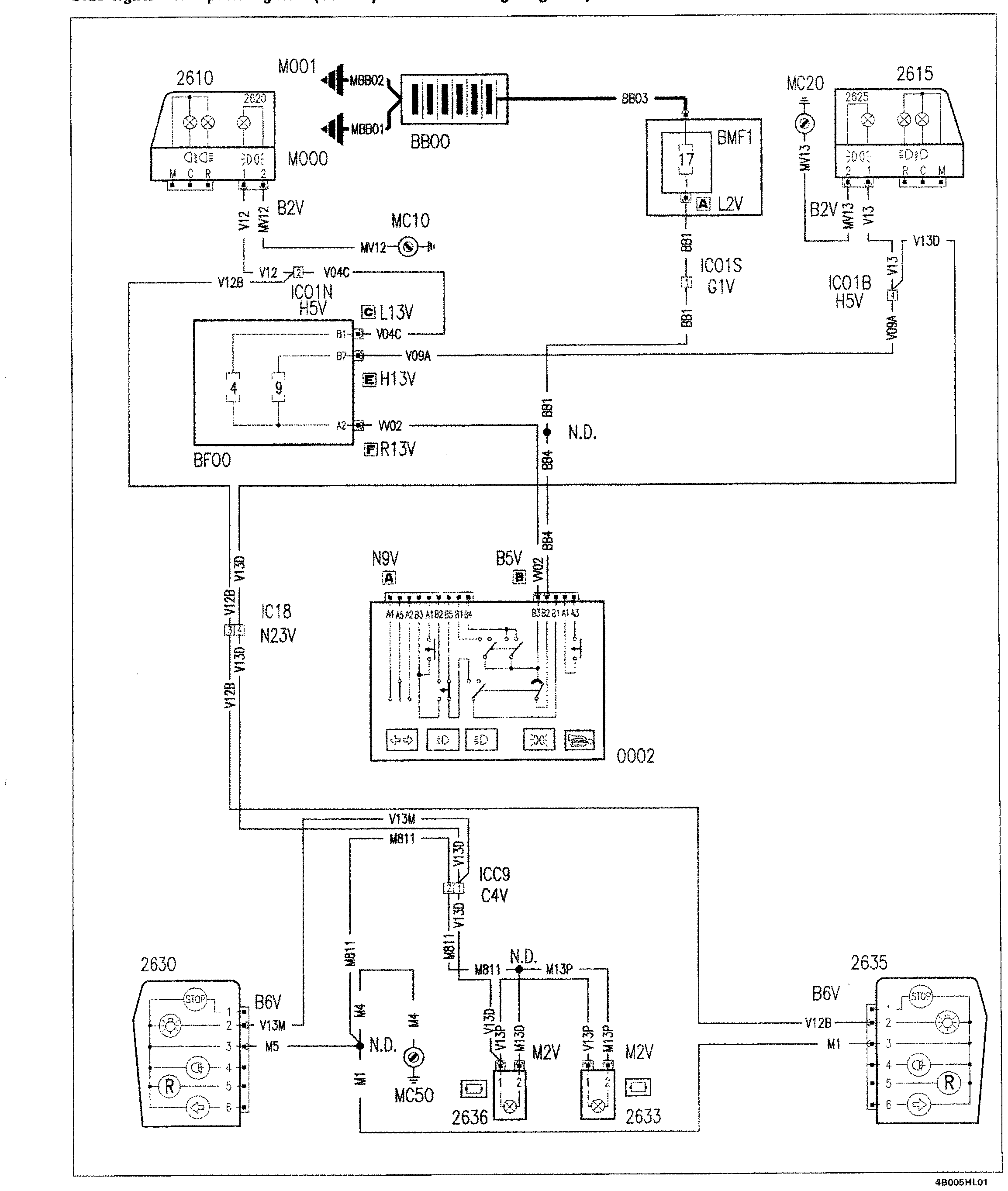

Side lights - No. plate lights – diagram from the 55 Electrical equipment chapter of the Fiat Scudo Factory Service Manual (1996-2006) factory manual.
