Instrument panel connections
- Make
- Fiat
- Model
- Scudo Factory Service Manual
- Year
- 1996–2006
- Section
- Wiring diagrams (2002 update) › Instrument panel connections
55 Electrical equipmentInstrument panel connections

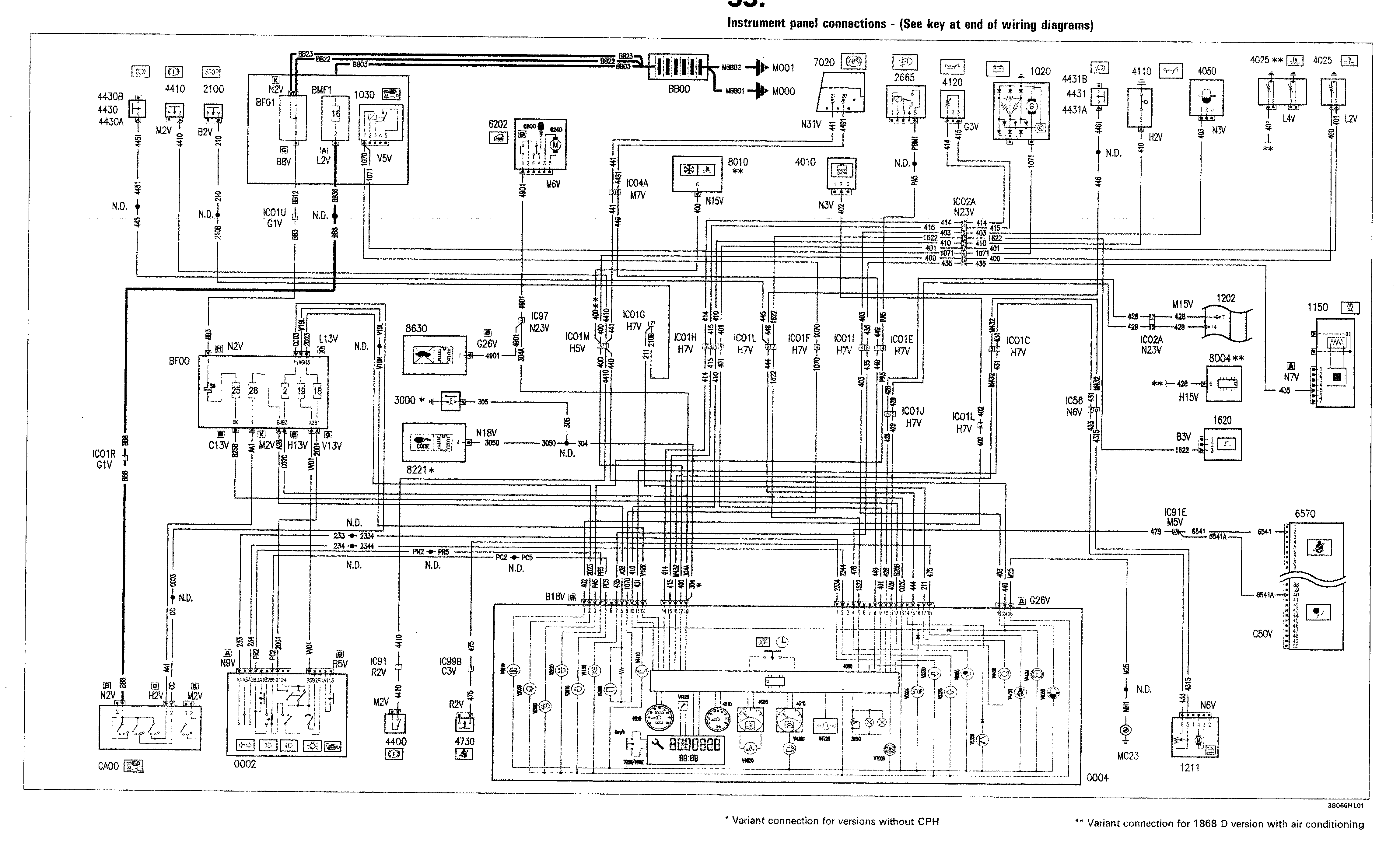

Instrument panel connections
- Variant connection for versions without CPH
- Variant connection for 1868 D version with air conditioning
