70 BodyworkFitting the new part

Fitting the new part

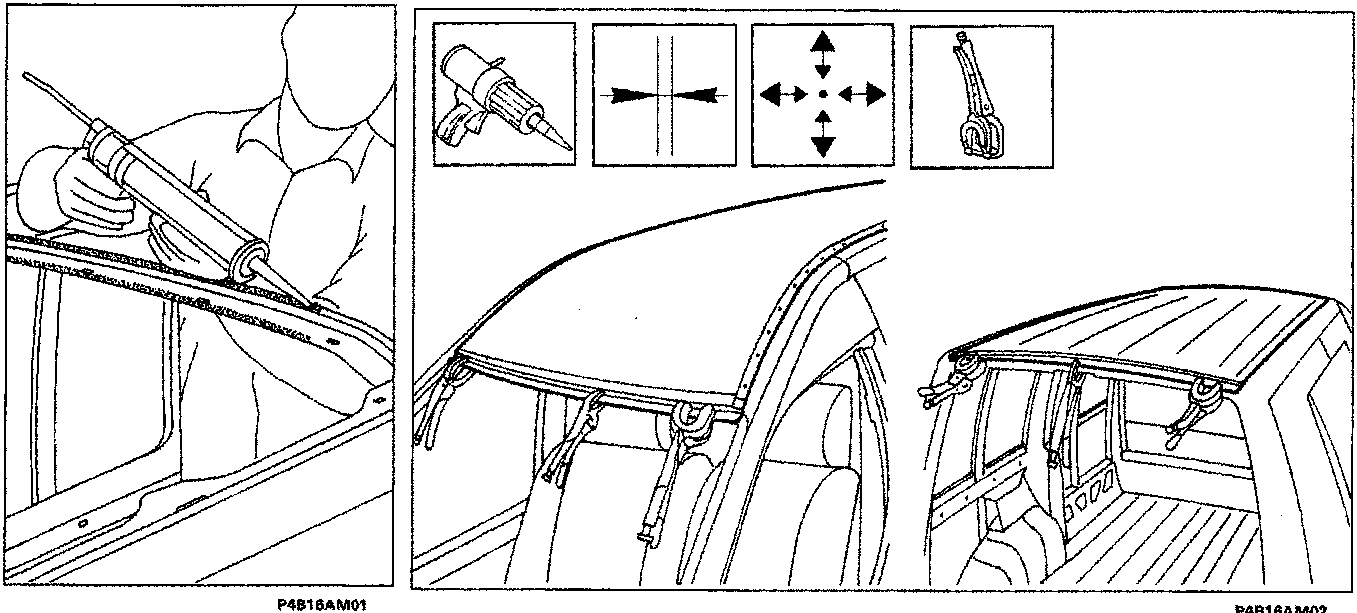

  1. Restore the seal removed previously.
  2. Fit the new part on the vehicle and check that it is perfectly aligned with the adjacent parts.
Diagram showing application of sealant to a roof panel frame, alignment checks, and the roof panel being positioned on the vehicle body.

Welding the new part

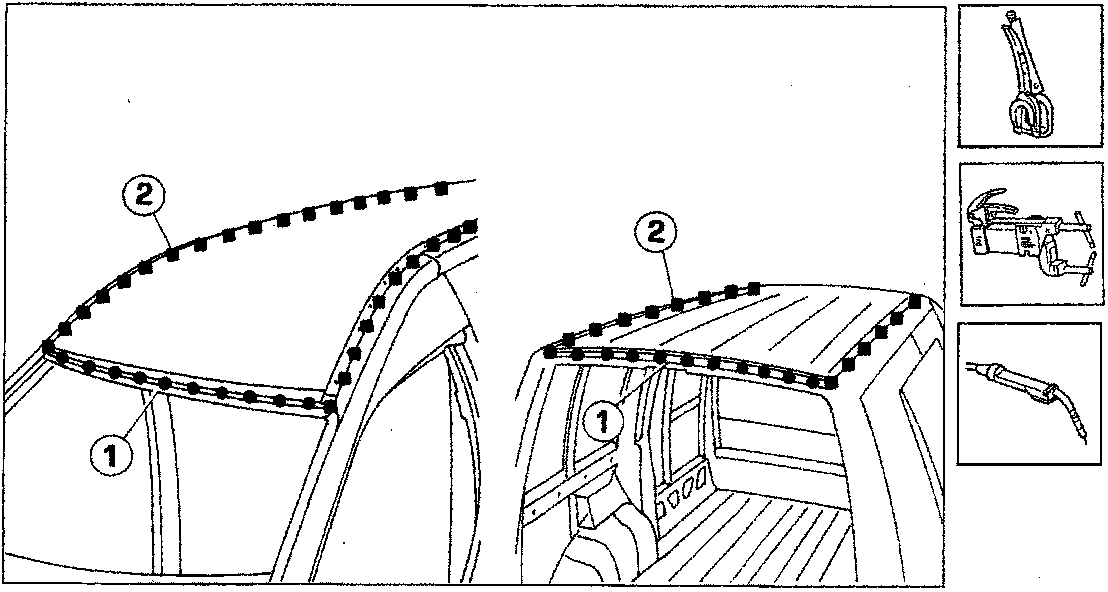

  1. Carry out the spot welding (1) and bead fill welding (2) as illustrated in the figure.
Diagram illustrating spot welding (1) along the roof panel flange and bead fill welding (2) along the roof edge, with tool icons shown on the right.
