Replacing complete rear wing

REPLACING COMPLETE REAR WING

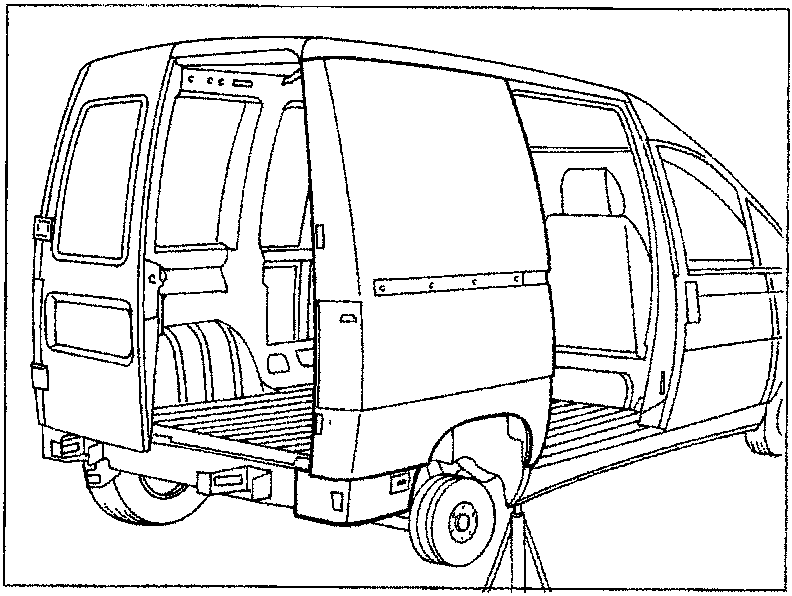

The part whose replacement procedure is described in shown in the figure opposite.

Preliminary procedures and accident-prevention instructions

Follow the instructions given above for the partial rear wing.

Preliminary dismantling

Remove the moveable parts of the bodywork, and the mechanical and electrical components which could hinder the repair operations or be damaged by them.

Removal

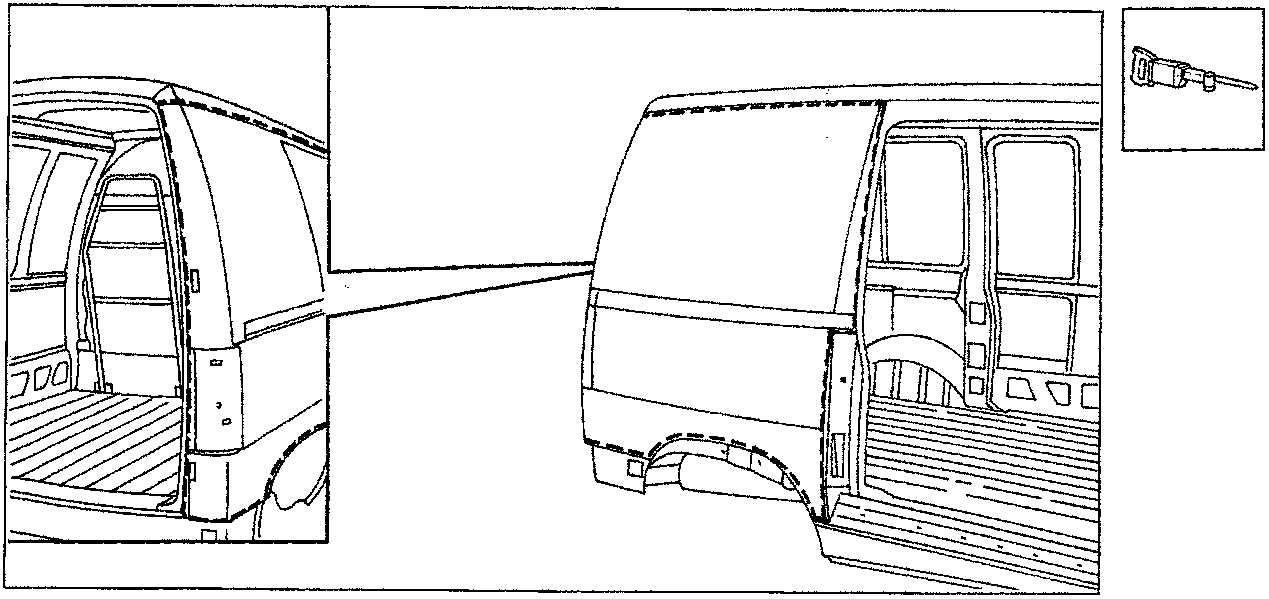

Cut the part to be replaced and remove it from the vehicle.
Using a hot-air blower, remove the wing from the sealant underneath.
