Fitting the new part (2)

1. Place the new part on the vehicle and check that it is perfectly aligned with the adjacent parts, then secure it by tacking it from inside with a few spot welds.

Welding the new part (2)

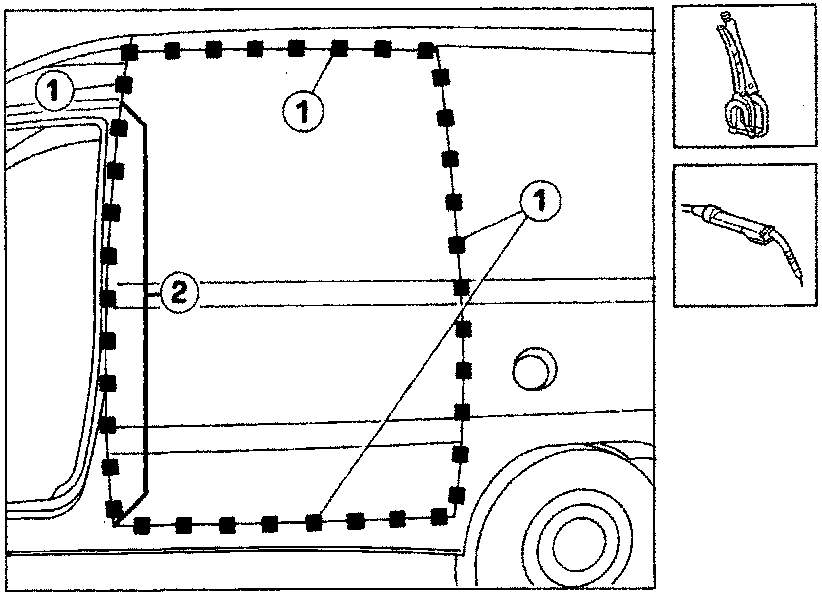

1. Carry out the bead fill weld as shown in the figure.
   The weld (1) is carried out from inside the vehicle, while the weld (2) is carried out from outside the vehicle.
