70 BodyworkFitting the new part

Fitting the new part

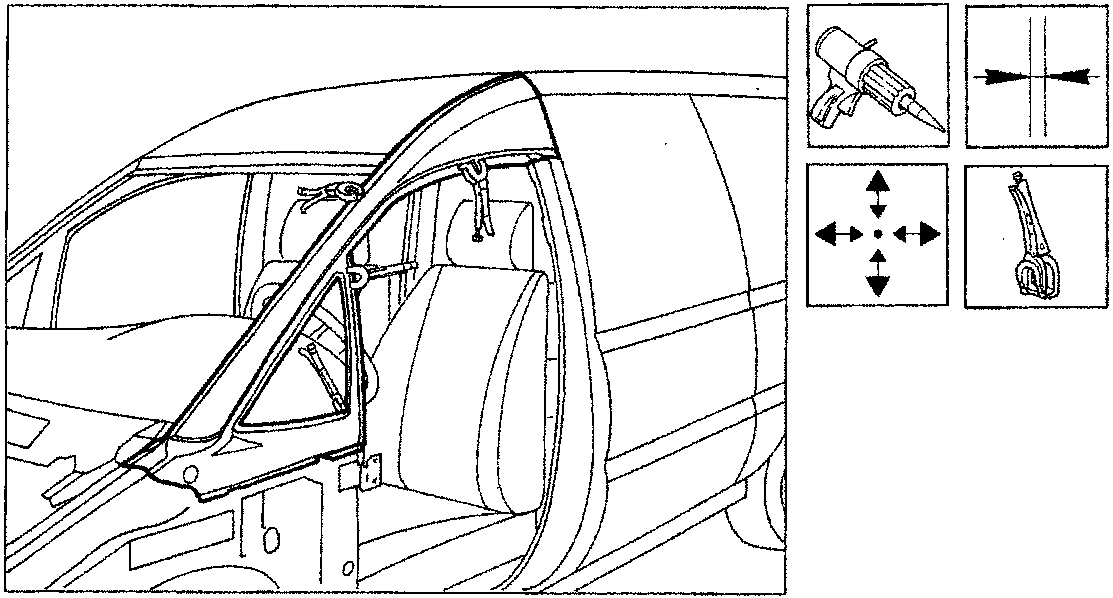

  1. Place the new part on the vehicle and check that it is perfectly aligned with the adjacent parts.
Diagram showing the alignment of a new door panel on the vehicle, with inset icons illustrating spot welding, gap measurement, alignment checks, and a wrench tool.

Welding the new part

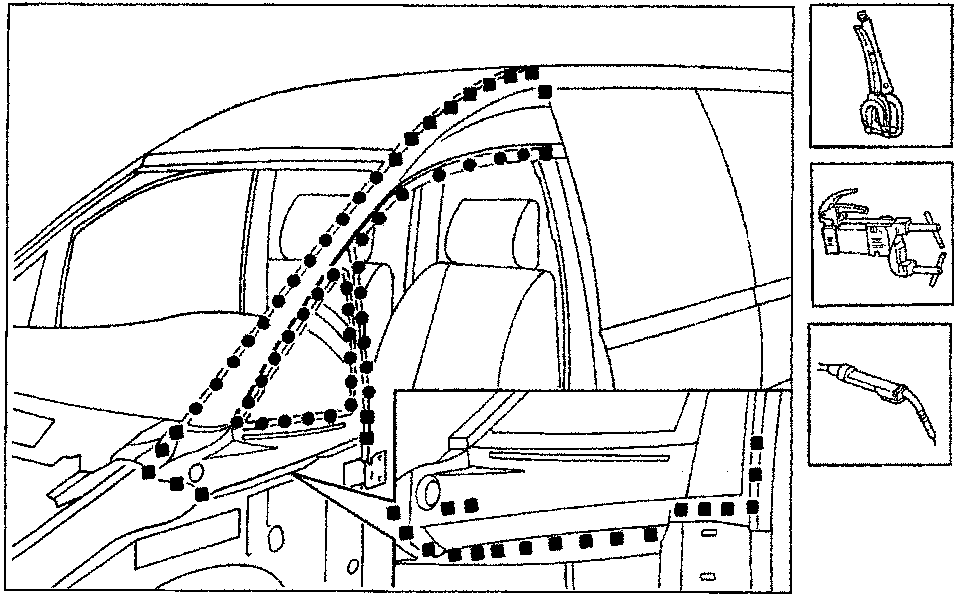

  1. Carry out the spot welding and bead fill welding as illustrated in the figure.
Diagram showing the weld seam locations (dotted lines) for the new door panel, with inset icons illustrating a wrench, spot welding gun, and bead fill welding torch.
