Replacing body panels › Fitting the new parts (1)
70 BodyworkFitting the new parts (1)

Fitting the new parts (1)

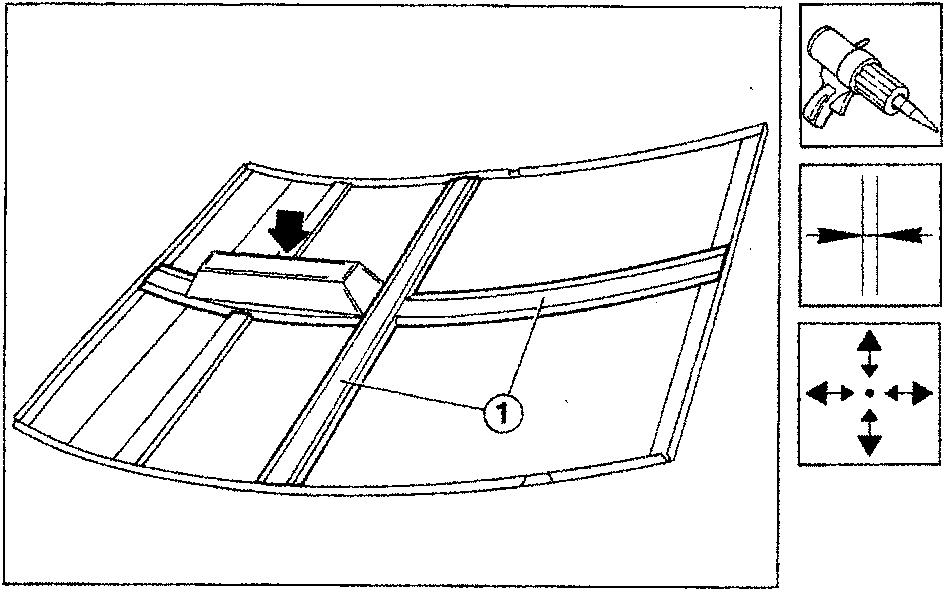

  1. Place the reinforcement parts (1) on the central side panel, and apply a layer of sealant for panel joins on the inner perimeter of the parts. Place a weight on the new parts (1) so that while the sealant is drying, the sealed surfaces always remain in contact with the side panel.
Diagram showing reinforcement parts (1) placed on a central side panel with a weight applied to hold them in place during sealant drying. Three small icons on the right depict a tool, a cross-section view, and directional arrows.

Welding the new part (1)

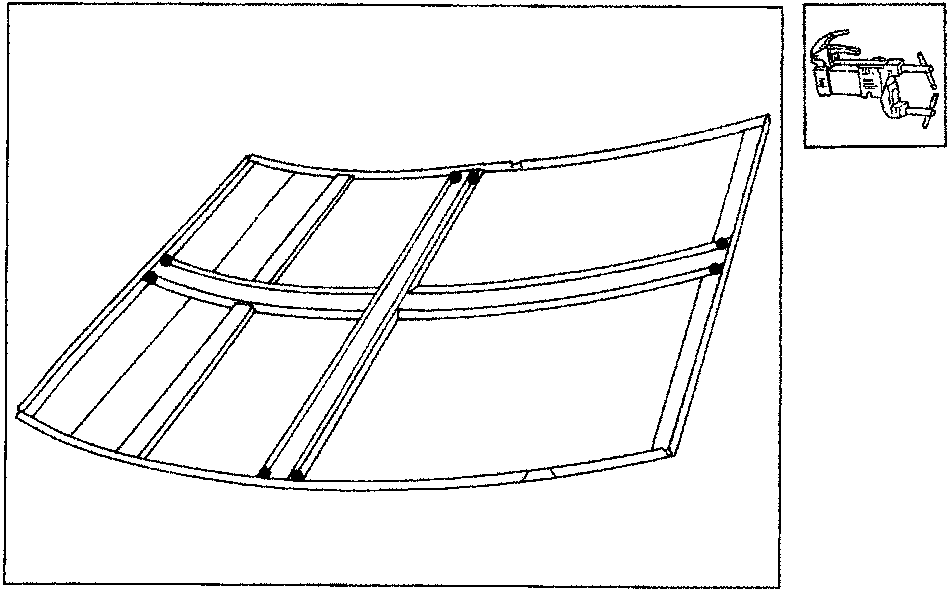

  1. Welding the reinforcements to new central side panel.
Diagram showing the reinforcement parts welded to the new central side panel. A small icon on the top right depicts a welding tool.
