Preliminary procedures and accident-prevention instructions

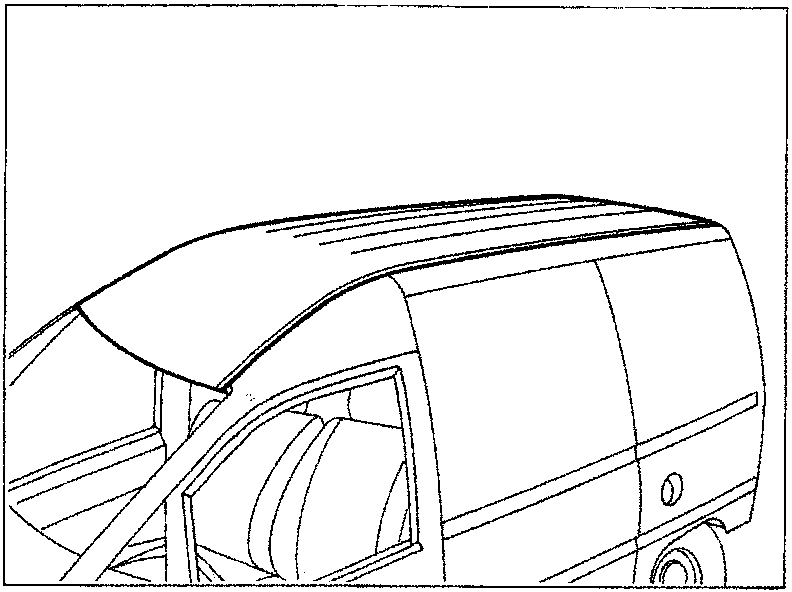

The part whose replacement is described is shown in the figure opposite.

Preliminary procedures and accident-prevention instructions

Follow the instructions given above.

Preliminary dismantling

Remove the moveable parts of the bodywork and the mechanical and electrical components which could hinder the repair operations or be damaged by them.

Removal

Cut the part to be replaced and remove it from the vehicle.

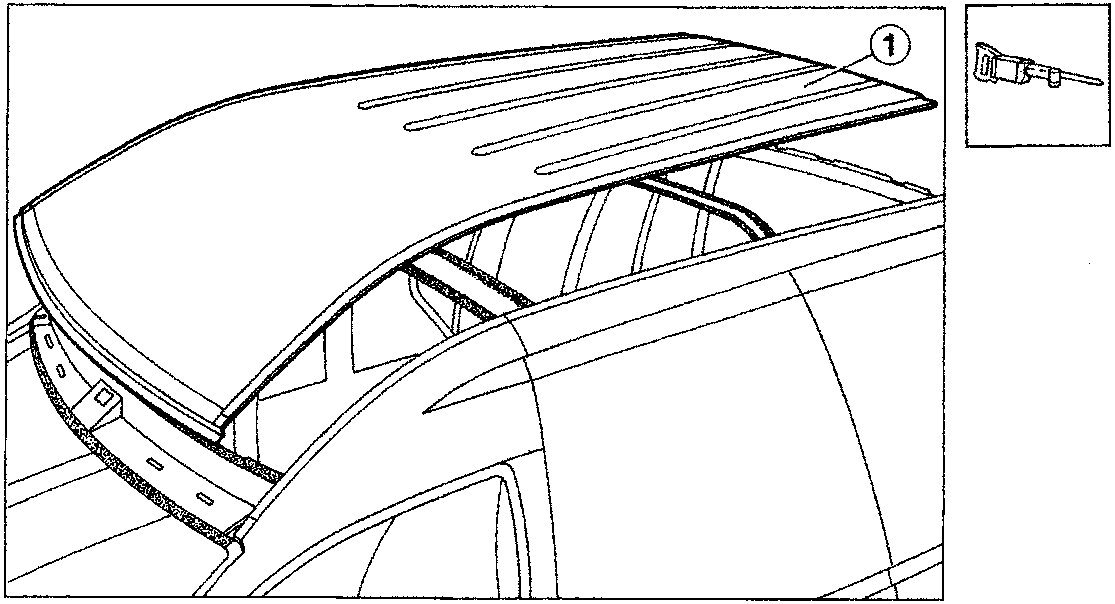

Using a hot-air blower, warm up the sealant present on the fins, then remove the roof panel (1) from the vehicle.
