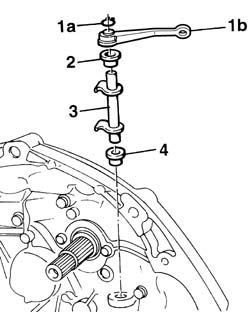

Thrust bearing linkage - r + r with gearbox removed

Operation 1820A26 · Clutch release mechanical control

1.2 16v, 1.4 16v, 1.6 16v

Removing

1. Remove the circlip (1a) retaining the clutch release lever (1b) and remove the lever.

2. Remove the top bush.

3. Withdraw the fork control shaft.

4. Remove the bottom bush.

Refitting

Check the condition of the removed components.

Replace the bushes, if there is too much play on the fork shaft.

Refit the bottom bush.

Refit the fork control shaft.

Refit the top bush.

Position the clutch release lever and secure it to the fork shaft using the specific circlip.
