Clutch hydraulic circuit vibration damper - r+r

Remove the protective cap from the bleed valve of one front brake caliper

Connect the collection system (pipe and reservoir) to the bleed valve on the brake caliper.

Operate the brake pedal until the brake-clutch fluid reservoir is empty.

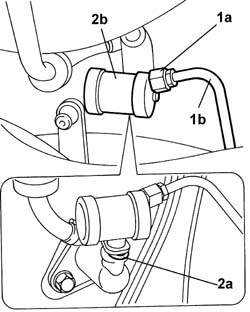

1. Undo the nut (1a) and disconnect the rigid pipe (1b) from the slave cylinder from the damper.

2. Pull clip (2a) back and remove the vibration damper from the clutch pump.

Clutch hydraulic circuit vibration damper - r+r

1.4 16v

Removing

Position the vehicle on the ramp

Remove the protective cap from the bleed valve of one front brake caliper

Connect the collection system (pipe and reservoir) to the bleed valve on the brake caliper.

Operate the brake pedal until the brake-clutch fluid reservoir is empty.

1. Lift the clip (1a) and disconnect the pipe (1b) from the clutch release cylinder.

Release the pipe from the anchorage clip in the wheel compartment.

1.8 16v

Removing

Position the vehicle on the ramp

Remove the protective cap from the bleed valve of one front brake caliper

Connect the collection system (pipe and reservoir) to the bleed valve on the brake caliper.

Operate the brake pedal until the brake-clutch fluid reservoir is empty.

1. Undo the nut (1a) and disconnect the rigid pipe (1b) from the slave cylinder from the damper.

2. Pull clip (2a) back and remove the vibration damper from the clutch pump.

1.9 JTD 8v · 80 CV

Removing

Position the vehicle on the ramp

Remove the protective cap from the bleed valve of one front brake caliper

Connect the collection system (pipe and reservoir) to the bleed valve on the brake caliper.

Operate the brake pedal until the brake-clutch fluid reservoir is empty.

1. Undo the nut (1a) and disconnect the rigid pipe (1b) from the slave cylinder from the damper.

2. Pull clip (2a) back and remove the vibration damper from the clutch pump.

2.4 20v

Removing

Place the car on a lift.

Remove the protective cap from the bleed valve of one front brake caliper

Connect the collection system (pipe and reservoir) to the bleed valve on the brake caliper.

Operate the brake pedal until the brake-clutch fluid reservoir is empty.

1. Lift the clip (1a) and release the hydraulic clutch release actuator pipe (1b).

Collect the fluid in a suitable container.

Release the pipe from the fastening clip on the engine support.

1.2 16v

Refitting

Pull the retaining clip back and fit the vibration damper in its seat on the clutch pump.

Do not use detergents or mineral lubricants incompatible with the brake fluid materials.

Tighten the connector of the rigid section of the pipe from the slave cylinder.

Remove the car from the ramps.

1.4 16v

1. Raise collar (1a) then disconnect and remove damper (1b) from the pump master cylinder complete with the rigid pipe.

1.8 16v

Refitting

Pull the retaining clip back and fit the vibration damper in its seat on the clutch pump.

Do not use detergents or mineral lubricants incompatible with the brake fluid materials.

Tighten the connector of the rigid section of the pipe from the slave cylinder.

Remove the car from the ramps.

1.9 JTD 8v · 80 CV

Refitting

Pull the retaining clip back and fit the vibration damper in its seat on the clutch pump.

Do not use detergents or mineral lubricants incompatible with the brake fluid materials.

Tighten the connector of the rigid section of the pipe from the slave cylinder.

Remove the car from the ramps.

2.4 20v

1. Open the band and release the clutch-brake fluid reservoir pipe.

2. Retract the clip (2a) and remove the vibration damper from the clutch pump (2b) complete with hydraulic clutch release actuator and pipe (2c).

1.4 16v

Refitting

Fit the pipe in the engine bay and connect it to the clutch release cylinder, then do up the retaining collar.

Connect the rigid pipe to the master cylinder (pump), then do up the retaining clip.

Secure the rigid pipe to the retaining collar in the wheel compartment.

Remove the car from the ramps.

2.4 20v

Refitting

Position the damper and the hydraulic clutch release actuator and pipe.

Pull the retaining clip back and fit the vibration damper in its seat on the clutch pump.

Position the pipe from the brake-clutch fluid reservoir and secure it to the damper using the special band.

Connect the hydraulic clutch release actuator pipe and secure it to the engine support using the special clip.

Lock the hydraulic clutch release actuator using the special fastenings.

Do not use detergents or mineral lubricants incompatible with the brake fluid materials.

Tighten the connector of the rigid section of the pipe from the slave cylinder.
