Vacuum air circuit

Description 1048A

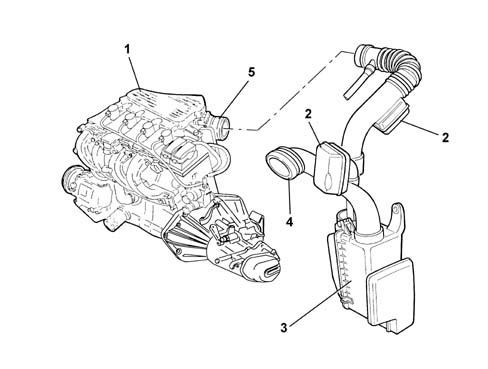

1.2 16v, 1.4 16v

The air intake circuit consists of various components which ensure that the air flow required by the engine in the various operating conditions is correctly directed.

1, Gas intake from engine crankcase (blow-by) (see 1080)

2, Throttle casing (see 1056)

3, Air filter

4, Intake vent

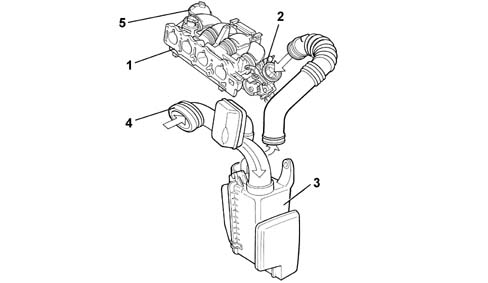

1.6 16v

The air intake circuit consists of various components which ensure that the air flow required by the engine in the various operating conditions is correctly directed.

1, Inlet manifold

2, Resonator

3, Air filter

4, Intake vent

5, Throttle body

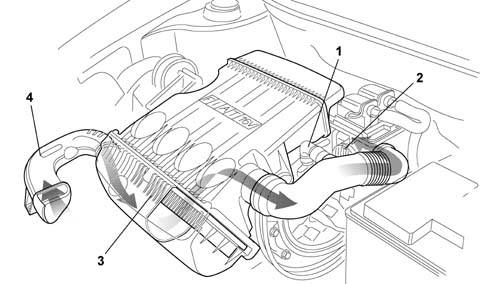

1.8 16v

The air intake circuit consists of various components which ensure that the air flow required by the engine in the various operating conditions is correctly directed.

1, Modular intake manifold (VIS)

2, Throttle casing (see 1056)

3, Air filter

4, Intake vent

5. Modular manifold actuator
