Fiat Stilo Factory Service Manual (2001-2007)10 · Gearbox and differential
10 · Transmission

Gear engagement cable - r r

Make
Fiat
Model
Stilo Factory Service Manual
Year
2001–2007
Section
Manual gearbox external controls › Gear engagement cable - r r
Gearbox and differentialGear engagement cable - r r

Gear engagement cable - r r

Operation 2125C30 · Manual gearbox external control (cables)

1.2 16v, 1.4 16v, 1.6 16v

Removing

- 5530B56 BATTERY DRIP TRAY COVER - R.R.

- 5530B52 Battery DRIP TRAY/SUPPORT - R.R.

1. Remove the clips securing the cables to the bracket.

2. Prise out both heads (2a) and withdraw gear selection and engagement cables (2b) from the bracket.

Gear engagement cable - r r

1.8 16v, 1.9 JTD 8v

Removing

- 5530B56 BATTERY DRIP TRAY COVER - R.R.

- 5530B52 Battery DRIP TRAY/SUPPORT - R.R.

1. Remove the clips securing the cables to the bracket.

2. Prise out both heads (2a) and withdraw gear selection and engagement cables (2b) from the bracket.

Gear engagement cable - r r

2.4 20v

Removing

- 5530B56 BATTERY DRIP TRAY COVER - R.R.

- 5530B52 Battery DRIP TRAY/SUPPORT - R.R.

1. Remove the clips securing the cables to the bracket.

2. Prise out both heads (2a) and withdraw gear selection and engagement cables (2b) from the bracket.

Gear engagement cable - r r

1.2 16v

- 1076B18 rigid section of exhaust pipe between catalytic converter and silencer - r + r

1.8 16v

- 1076B26 intermediate exhaust silencer - r+r emission control versions

1.2 16v

- 1076B18 rigid section of exhaust pipe between catalytic converter and silencer - r + r

2.4 20v

- 1080B62 catalytic converter - r + r

- 1076A48 catalytic converter heat shield - r r

To facilitate cable removal from the mount, it is advisable to tighten both bolts securing the mount to the body.

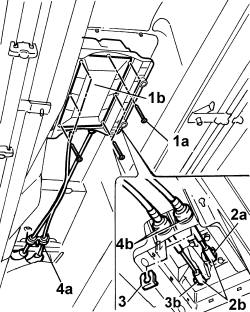

1. Undo the bolts (1a) and remove the protective cover (1b).

2. Remove the selection and engagement flexible transmission cable heads (2a) from the lever and relay (2b).

3. Remove the anchoring clips and withdraw the two flexible transmission cables from the mounting.

4. Open the retaining band (4a) and remove both hoses (4b) from the car.

Gear engagement cable - r r

1.2 16v

- 1076B18 rigid section of exhaust pipe between catalytic converter and silencer - r + r

1.6 16v

- 1076B26 intermediate exhaust silencer - r+r emission control versions

1.9 JTD 8v

- 1076B42 CENTRE EXHAUST PIPE COMPLETE WITH: FLEXIBLE CONNECTOR - TORQUE CONVERTER AND CENTRE SILENCER -R.R.

1.6 16v

- 1076B26 intermediate exhaust silencer - r+r emission control versions

2.4 20v

Refitting

Fit the gear selection and engagement flexible transmission cable ends to the lever and relay.

Fit the clips anchoring the two flexible transmission cables to the mounting.

Fit the protective cover in the mount seat and tighten the fixing bolts.

- 1076A48 catalytic converter heat shield - r r

- 1080B62 catalytic converter - r + r

Fit the gear selection and engagement flexible transmission cables and press fit the heads to the pivot pins.

Fit the retaining clips to the bracket.

- 5530B52 Battery DRIP TRAY/SUPPORT - R.R.

- 5530B56 BATTERY DRIP TRAY COVER - R.R.

1.6 16v

- 1076B26 intermediate exhaust silencer - r+r emission control versions

1.2 16v, 1.4 16v, 1.6 16v

- 1076A48 catalytic converter heat shield - r r

To facilitate cable removal from the mount, it is advisable to tighten both bolts securing the mount to the body.

1. Undo the bolts (1a) and remove the protective cover (1b).

2. Remove the selection and engagement flexible transmission cable heads (2a) from the lever and relay (2b).

3. Remove the anchoring clips and withdraw the two flexible transmission cables from the mounting.

4. Open the retaining band (4a) and remove both hoses (4b) from the car.

Gear engagement cable - r r

1.9 JTD 8v

- 1076B42 CENTRE EXHAUST PIPE COMPLETE WITH: FLEXIBLE CONNECTOR - TORQUE CONVERTER AND CENTRE SILENCER -R.R.

1.8 16v, 1.9 JTD 8v

- 1076A48 catalytic converter heat shield - r r

To facilitate cable removal from the mount, it is advisable to tighten both bolts securing the mount to the body.

1. Undo the bolts (1a) and remove the protective cover (1b).

2. Remove the selection and engagement flexible transmission cable heads (2a) from the lever and relay (2b).

3. Remove the anchoring clips and withdraw the two flexible transmission cables from the mounting.

4. Open the retaining band (4a) and remove both hoses (4b) from the car.

Gear engagement cable - r r

1.9 JTD 8v

- 1076B42 CENTRE EXHAUST PIPE COMPLETE WITH: FLEXIBLE CONNECTOR - TORQUE CONVERTER AND CENTRE SILENCER -R.R.

1.2 16v, 1.4 16v, 1.6 16v

Refitting

Fit the gear selection and engagement flexible transmission cable ends to the lever and relay.

Fit the clips anchoring the two flexible transmission cables to the mounting.

Fit the protective cover in the mount seat and tighten the fixing bolts.

- 1076A48 catalytic converter heat shield - r r

2.4 20v

- 1080B62 catalytic converter - r + r

1.8 16v, 1.9 JTD 8v

Refitting

Fit the gear selection and engagement flexible transmission cable ends to the lever and relay.

Fit the clips anchoring the two flexible transmission cables to the mounting.

Fit the protective cover in the mount seat and tighten the fixing bolts.

- 1076A48 catalytic converter heat shield - r r

2.4 20v

- 1080B62 catalytic converter - r + r

1.6 16v

- 1076B26 intermediate exhaust silencer - r+r emission control versions

1.9 JTD 16v

- 1076B42 CENTRE EXHAUST PIPE COMPLETE WITH: FLEXIBLE CONNECTOR - TORQUE CONVERTER AND CENTRE SILENCER -R.R.

1.9 JTD 8v

- 1076B42 CENTRE EXHAUST PIPE COMPLETE WITH: FLEXIBLE CONNECTOR - TORQUE CONVERTER AND CENTRE SILENCER -R.R.

1.9 JTD 16v

- 1076B42 CENTRE EXHAUST PIPE COMPLETE WITH: FLEXIBLE CONNECTOR - TORQUE CONVERTER AND CENTRE SILENCER -R.R.

1.2 16v

- 1076B18 rigid section of exhaust pipe between catalytic converter and silencer - r + r

1.2 16v, 1.4 16v, 1.6 16v

- 1076A48 catalytic converter heat shield - r r

To facilitate cable removal from the mount, it is advisable to tighten both bolts securing the mount to the body.

1. Undo the bolts (1a) and remove the protective cover (1b).

2. Remove the selection and engagement flexible transmission cable heads (2a) from the lever and relay (2b).

3. Remove the anchoring clips and withdraw the two flexible transmission cables from the mounting.

4. Open the retaining band (4a) and remove both hoses (4b) from the car.

Gear engagement cable - r r

1.8 16v

- 1076B26 intermediate exhaust silencer - r+r emission control versions

1.8 16v, 1.9 JTD 8v

- 1076A48 catalytic converter heat shield - r r

To facilitate cable removal from the mount, it is advisable to tighten both bolts securing the mount to the body.

1. Undo the bolts (1a) and remove the protective cover (1b).

2. Remove the selection and engagement flexible transmission cable heads (2a) from the lever and relay (2b).

3. Remove the anchoring clips and withdraw the two flexible transmission cables from the mounting.

4. Open the retaining band (4a) and remove both hoses (4b) from the car.

Gear engagement cable - r r

2.4 20v

- 1076A48 catalytic converter heat shield - r r

To facilitate cable removal from the mount, it is advisable to tighten both bolts securing the mount to the body.

1. Undo the bolts (1a) and remove the protective cover (1b).

2. Remove the selection and engagement flexible transmission cable heads (2a) from the lever and relay (2b).

3. Remove the anchoring clips and withdraw the two flexible transmission cables from the mounting.

4. Open the retaining band (4a) and remove both hoses (4b) from the car.

Gear engagement cable - r r

1.2 16v, 1.4 16v, 1.6 16v

Fit the gear selection and engagement flexible transmission cables and press fit the heads to the pivot pins.

Fit the retaining clips to the bracket.

- 5530B52 Battery DRIP TRAY/SUPPORT - R.R.

- 5530B56 BATTERY DRIP TRAY COVER - R.R.

Refitting

Fit the gear selection and engagement flexible transmission cable ends to the lever and relay.

Fit the clips anchoring the two flexible transmission cables to the mounting.

Fit the protective cover in the mount seat and tighten the fixing bolts.

- 1076A48 catalytic converter heat shield - r r

1.8 16v, 1.9 JTD 8v

Fit the gear selection and engagement flexible transmission cables and press fit the heads to the pivot pins.

Fit the retaining clips to the bracket.

- 5530B52 Battery DRIP TRAY/SUPPORT - R.R.

- 5530B56 BATTERY DRIP TRAY COVER - R.R.

Refitting

Fit the gear selection and engagement flexible transmission cable ends to the lever and relay.

Fit the clips anchoring the two flexible transmission cables to the mounting.

Fit the protective cover in the mount seat and tighten the fixing bolts.

- 1076A48 catalytic converter heat shield - r r

2.4 20v

Refitting

Fit the gear selection and engagement flexible transmission cable ends to the lever and relay.

Fit the clips anchoring the two flexible transmission cables to the mounting.

Fit the protective cover in the mount seat and tighten the fixing bolts.

- 1076A48 catalytic converter heat shield - r r

1.9 JTD 16v

- 1076B42 CENTRE EXHAUST PIPE COMPLETE WITH: FLEXIBLE CONNECTOR - TORQUE CONVERTER AND CENTRE SILENCER -R.R.

2.4 20v

- 1080B62 catalytic converter - r + r

1.9 JTD 8v

- 1076B42 CENTRE EXHAUST PIPE COMPLETE WITH: FLEXIBLE CONNECTOR - TORQUE CONVERTER AND CENTRE SILENCER -R.R.

1.8 16v

- 1076B26 intermediate exhaust silencer - r+r emission control versions

1.2 16v

- 1076B18 rigid section of exhaust pipe between catalytic converter and silencer - r + r

1.2 16v, 1.6 16v, 1.8 16v, 1.9 JTD 8v

Fit the gear selection and engagement flexible transmission cables and press fit the heads to the pivot pins.

Fit the retaining clips to the bracket.

2.4 20v

Position the gear lever in contact with the reverse inhibition wall.

1. Position the spacer tool and a 1.5 mm high washer in order to reach an overall height (spacer+washer) of 19 mm under the gear engagement lever.

NameCountry
1Spacer1.860.974.000
Gear engagement cable - r r

Place the gear lever in contact with the reverse inhibition wall.

1. Position the spacer tool and a 1.5 mm high washer in order to reach an overall height (spacer+washer) of 19 mm under the gear engagement lever.

NameCountry
1Spacer1.860.974.000
Gear engagement cable - r r

1.2 16v, 1.4 16v, 1.6 16v

Connect the gear selection self-adjusting flexible cable end.

Secure the flexible cable to the mounting bracket, engaging the retaining clip in the housing.

Connect the gear engagement flexible cable end.

Secure the flexible cable to the mounting bracket engaging the retaining clip in the housing.

Place the gear lever in Reverse and remove the tool and washer positioned under the gear engagement lever.

NameCountry
Spacer1.860.974.000

Move the gear lever to neutral position.

1.8 16v, 1.9 JTD 8v

Connect the gear selection self-adjusting flexible cable end.

Secure the flexible cable to the mounting bracket, engaging the retaining clip in the housing.

Connect the gear engagement flexible cable end.

Secure the flexible cable to the mounting bracket engaging the retaining clip in the housing.

Place the gear lever in Reverse and remove the tool and washer positioned under the gear engagement lever.

NameCountry
Spacer1.860.974.000

Move the gear lever to neutral position.

2.4 20v

Connect the gear selection self-adjusting flexible cable end.

Secure the flexible cable to the mounting bracket, engaging the retaining clip in the housing.

Connect the gear engagement flexible cable end.

Secure the flexible cable to the mounting bracket engaging the retaining clip in the housing.

Place the gear lever in Reverse and remove the tool and washer positioned under the gear engagement lever.

NameCountry
Spacer1.860.974.000

Move the gear lever to neutral position.

1.2 16v, 1.4 16v, 1.6 16v

- 5530B52 Battery DRIP TRAY/SUPPORT - R.R.

- 5530B56 BATTERY DRIP TRAY COVER - R.R.

1.8 16v, 1.9 JTD 8v

- 5530B52 Battery DRIP TRAY/SUPPORT - R.R.

- 5530B56 BATTERY DRIP TRAY COVER - R.R.

2.4 20v

- 5530B52 Battery DRIP TRAY/SUPPORT - R.R.

- 5530B56 BATTERY DRIP TRAY COVER - R.R.
