7 lbf ft

Refit

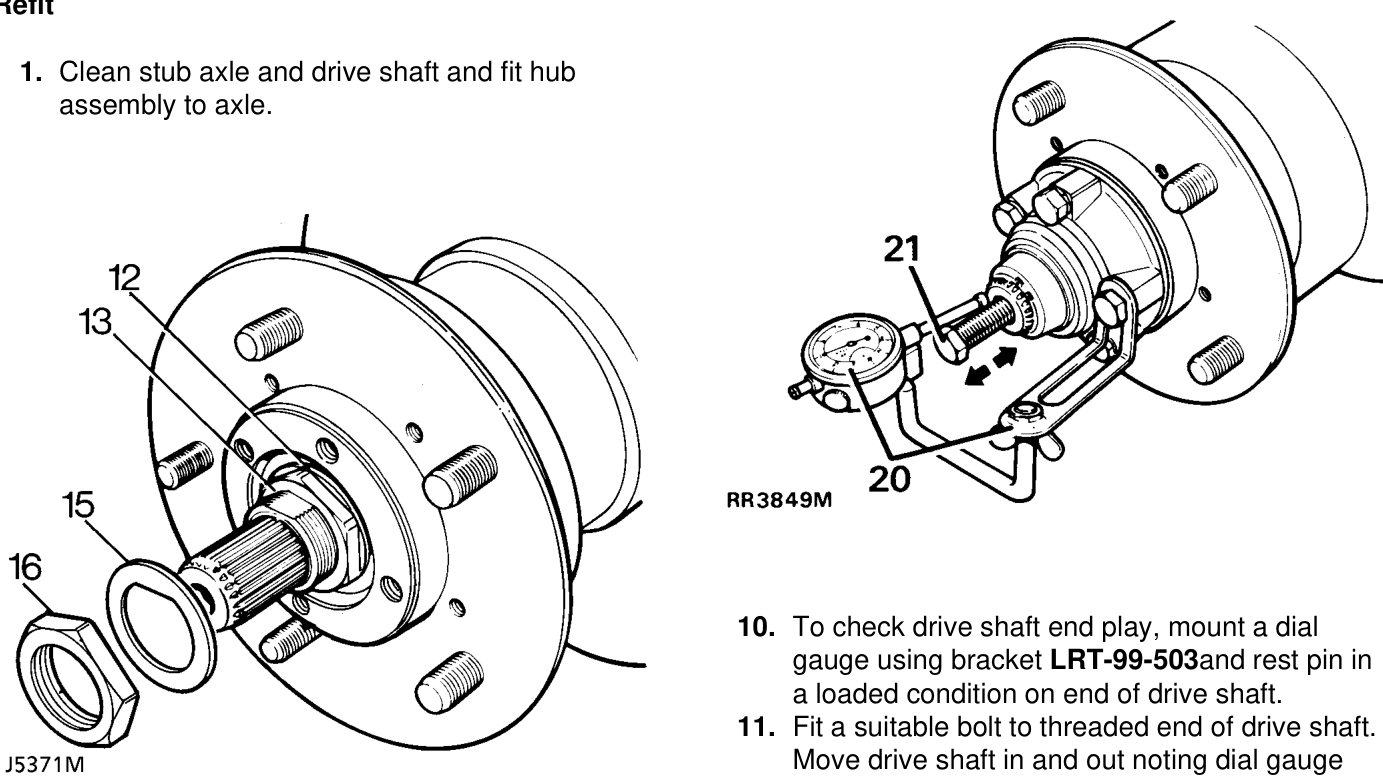

1. Clean stub axle and drive shaft and fit hub assembly to axle.
10. To check drive shaft end play, mount a dial gauge using bracket LRT-99-503and rest pin in a loaded condition on end of drive shaft.
11. Fit a suitable bolt to threaded end of drive shaft. Move drive shaft in and out noting dial gauge
12. If end play requires adjustment, remove circlip,
2. Fit spacing washer.
3. Fit hub adjusting nut. Tighten to 50 Nm, 37 lbf ft.
13. Remove bolt from drive shaft, fit circlip and dust

Ensure hub is free to rotate with no bearing play.

4. Back off adjusting nut 90fl and tighten to 10 Nm,
14. Fit brake disc shield and brake caliper. Tighten

. This will give the required hub end float

7 lbf ft

of 0,010mm, 0.0004 in.

15. Bleed brake system.
5. Fit a new lock washer.
6. Fit locknut. Tighten to 50 Nm, 37 lbf ft.
16. Fit road wheel, remove axle stands and tighten
7. Tab over lock washer to secure adjusting nut and locknut.
17. Operate footbrake to locate brake pads.
8. Fit a new joint washer to driving member and fit member to hub. Tighten bolts to 65 Nm, 48 lbf ft.
9. Fit original drive shaft shim and secure with a circlip.

reading. End play should be between 0,08 to 0,25 mm, 0.003 to 0.010 in.

measure shim thickness and fit an appropriate shim to give required end-play.

cap.

fixings to 82 Nm, 60 lbf ft. See BRAKES, Repair, Brake system bleed

road wheel nuts to 130 Nm, 95 lbf ft.
