Front hub assembly

FRONT HUB ASSEMBLY

Service repair no - 60.25.01.

Remove

1. Loosen road wheel nuts, raise front of vehicle and lower onto axle stands. Remove road wheel.
2. Release brake hose clips and remove brake caliper and brake disc shield bolts. Secure 10. Remove hub and brake disc assembly complete caliper to one side.
3. Lever off dust cap.
4. Remove circlip and driveshaft shim from driveshaft.
5. Remove 5 bolts and withdraw drive member and joint washer. Discard joint washer.
6. Bend back lock washer tabs.
7. Remove locknut and lock washer.
8. Remove hub adjusting nut.
9. Remove spacing washer.

with bearings.

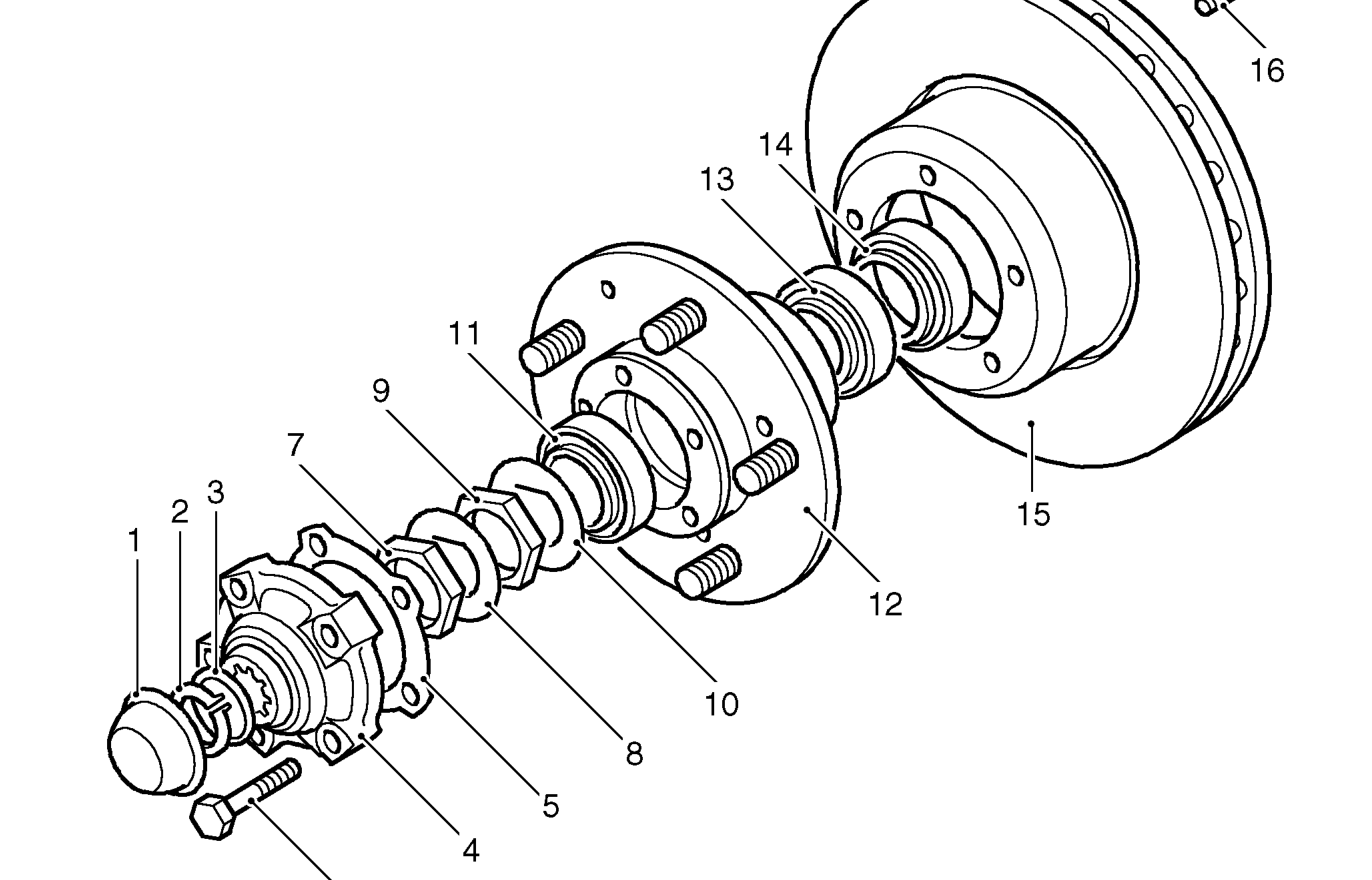

HUB COMPONENTS

1. Dust cap.
2. Drive shaft circlip. 10. Spacing washer.
3. Drive shaft shim. 11. Outer bearing.
4. Drive member. 12. Hub.
5. Drive member joint washer. 13. Inner bearing.
6. Drive member retaining bolt. 14. Grease seal.
7. Lock nut. 15. Brake disc.
8. Lock washer. 16. Disc retaining bolt.
9. Hub adjusting nut.
