Repair › Clock warning light panel
InstrumentsClock warning light panel

CLOCK WARNING LIGHT PANEL

Service repair no - 88.15.07 Service repair no - 88.20.18

Remove Remove

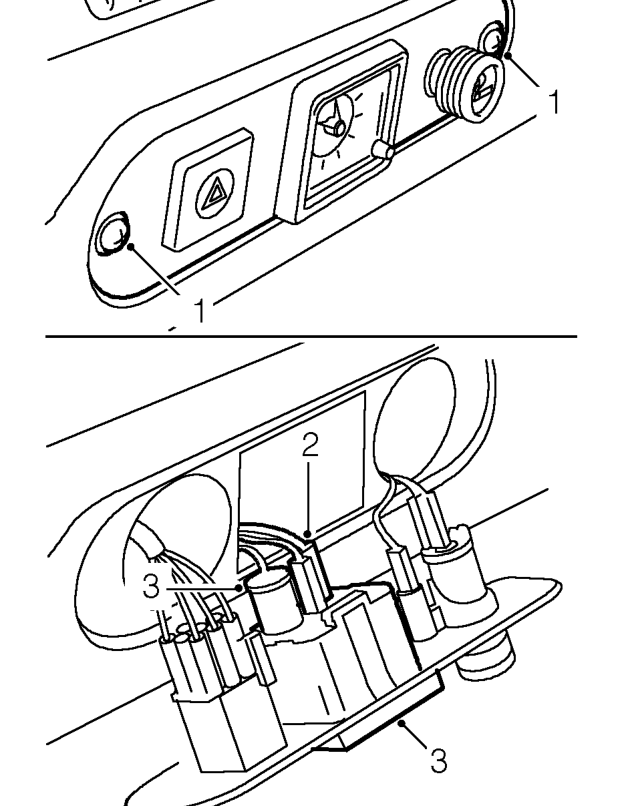

Remove remove – Service repair no - 88.15.07 Service repair no - 88.20.18

Refit

  1. Remove 2 screws and withdraw switch panel from centre dash panel.
  2. Release illumination bulb holder and disconnect electrical leads from clock.
  3. Press in spring retainers and remove clock from panel.

Refit

  1. Fit clock into dash panel.
  2. Fit electrical leadsbulb and bulb holder.
  3. Secure switch panel to centre dash panel.

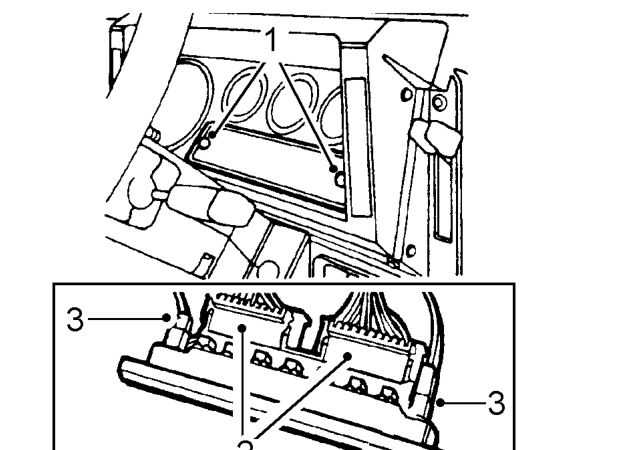

Remove remove – Secure switch panel to centre dash panel.
  1. Remove 2 screws and withdraw warning light panel.
  2. Disconect both multi-plugs.
  3. Disconnect illumination bulb leads.
  4. Remove warning light panel.
  5. Fit illumination bulb leads and multi-plugs to warning light panel.
  6. Secure warning light panel to instrument panel.
