TACHOMETER Refit

Service repair no - 88.30.21

Remove

  1. Remove instrument panel. See Instrument panel

FUEL AND TEMPERATURE GAUGES

Fuel and temperature gauges – Remove instrument panel. See Instrument panel

Service repair no - 88.25.26 - Fuel gauge Service repair no - 88.25.14 - Temperature gauge

Remove

Fuel and temperature gauges – Service repair no - 88.25.26 - Fuel gauge Service repair no - 88.25.14 - Temperature gauge

Refit

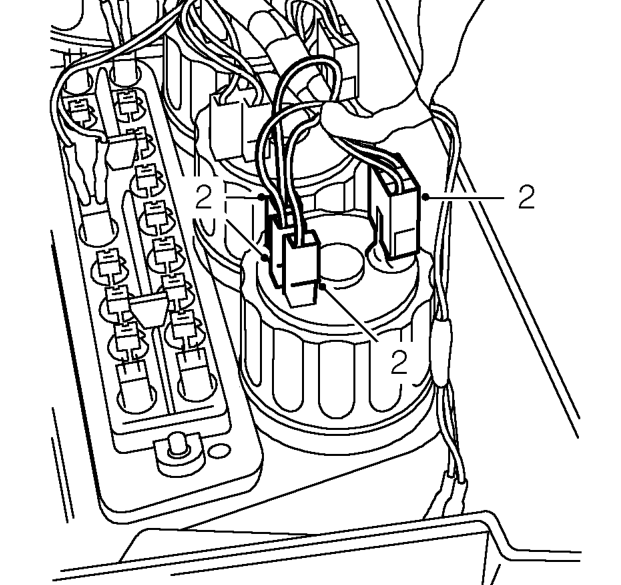

  1. Release illumination bulb holder and wiring connectors from tachometer. ’-’ = BLACK ’+’ = WHITE ’2’ = RED
  2. Unscrew retaining ring and remove tachometer.
  3. Remove ’O’ ring from tachometer.
  4. Fit ’O’ ring to tachometer and position tachometer into instrument panel.
  5. Fit retaining ring, align tachometer and tighten.
  6. Fit instrument panel. See Instrument panel
  7. Remove instrument panel. See Instrument panel
Fuel and temperature gauges – Remove instrument panel. See Instrument panel

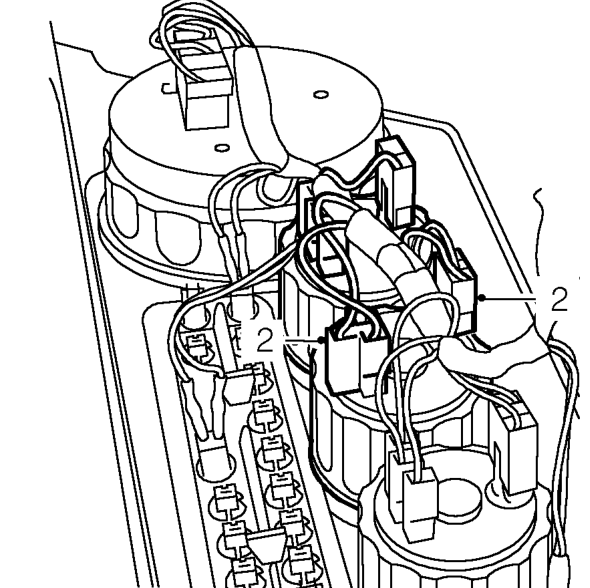

  1. Release illumination bulb holder and multiplug from gauge.

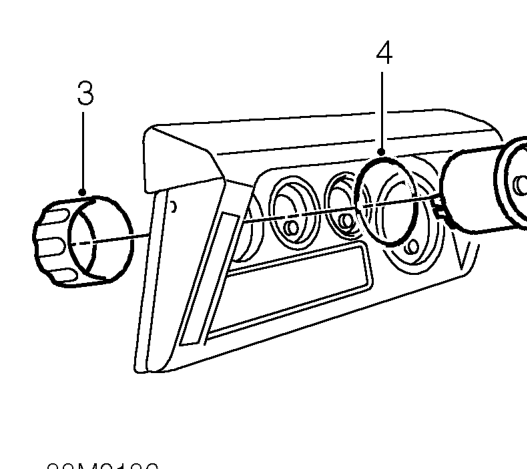

  2. Unscrew retaining ring and remove gauge, see 88M0186 .
  3. Remove ’O’ ring from gauge.
  4. Fit ’O’ ring to gauge and position gauge into instrument panel.
  5. Fit retaining ring, align gauge and tighten.
  6. Fit instrument panel. See Instrument panel
