Repair › Printed circuit - warning light panel
InstrumentsPrinted circuit - warning light panel

PRINTED CIRCUIT - WARNING LIGHT PANEL

Service repair no - 88.20.20

Remove

  1. Remove warning light panel. See Warning light panel

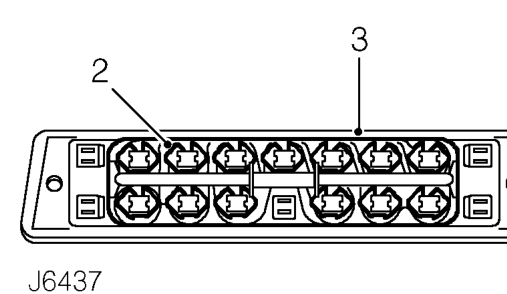

Printed circuit - warning light panel – Remove warning light panel. See Warning light panel
  1. Remove 13 illumination bulb holders from light panel.
  2. Release printed circuit from locating pins and remove from panel seatings.

Refit

  1. Fit new printed circuit over panel seatings and position on locating pins.
  2. Fit illumination bulbs to secure circuit.
  3. Fit warning light panel. See Warning light panel
