17 · Steering & suspension

CAUTION: Plug the connections.

Make
Land Rover
Model
Defender 90 Workshop Manual (NAS)
Section
Repair › CAUTION: Plug the connections.
SteeringCAUTION: Plug the connections.

Refit

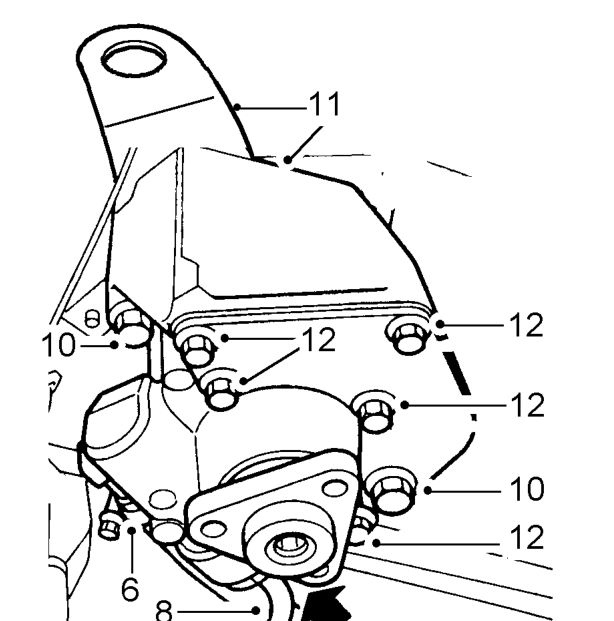

Diagram
  1. Clean mating faces of PAS pump and engine.
  2. Fit PAS pump and engine lifting bracket to
  3. Fit and tighten bolts securing PAS pump to
  4. Remove plugs.
  5. Connect PAS pipe to pump and tighten union to
  6. Connect PAS hose to pump and secure with clip.
  7. Position pulley to PAS pump.
  8. Coat threads of PAS pump pulley bolts with
  9. Restrain pulley using Allen key and tighten bolts
  10. Fit drive belt.
  11. Reconnect battery negative lead.
  12. Bleed power steering system.
  13. Remove container.
  14. Loosen clip securing PAS hose to pump.
  15. Disconnect hose from pump.
  16. Loosen union securing PAS pipe to pump.
  17. Disconnect PAS pipe from pump.

CAUTION: Plug the connections.

  1. Remove 3 bolts securing PAS pump to engine.
  2. Remove PAS pump and collect engine lifting bracket.

Do not carry out further dismantling if component is removed for access only.

  1. Remove 5 bolts securing clamping bracket to pump.
  2. Remove clamping bracket from pump and fit to new pump.
  3. Tighten bolts securing clamping bracket to pump to 9 Nm, 7 lbf ft.

engine.

engine to 35 Nm, 26 lbf ft.

20 Nm, 15 lbf ft.

Loctite 242.

to 10 Nm, 7 lbf ft. See ELECTRICAL, Repair, Auxiliary drive belt

See Adjustment, power steering system - bleed
