STEERING DAMPER

Service repair no - 57.55.21

Remove

  1. Raise vehicle on a ramp [hoist].

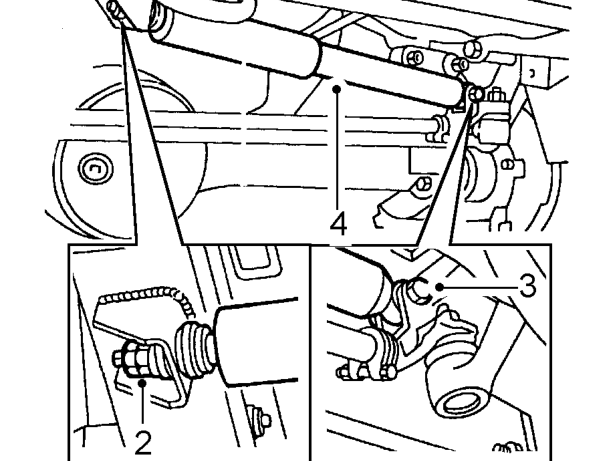

Steering damper – Raise vehicle on a ramp [hoist].
  1. Remove 2 nuts securing steering damper to chassis member and collect washer.
  2. Remove nut and bolt securing steering damper to drag link.
  3. Release steering damper from drag link and chassis member and remove.

Refit

  1. Position damper to chassis member and drag link.
  2. Fit bolt and new nut securing damper to drag link and tighten.
  3. Fit washer and nuts securing steering damper to chassis and tighten.
  4. Lower vehicle.
