Repair › Power steering fluid reservoir power steering pump
SteeringPower steering fluid reservoir power steering pump

POWER STEERING FLUID RESERVOIR POWER STEERING PUMP

Service repair no - 57.15.08 Service repair no - 57.20.14

Remove Remove

  1. Position container to collect any fluid spillage.

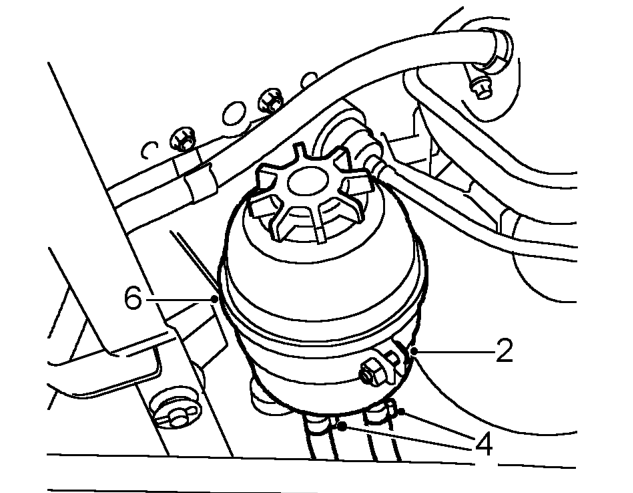

Remove remove – Position container to collect any fluid spillage.
  1. Loosen mounting bracket clamp bolt.
  2. Raise reservoir from mounting bracket to gain access to hose clips.
  3. Loosen 2 clips securing hoses to fluid reservoir.
  4. Disconnect hoses from fluid reservoir.

CAUTION: Plug the connections.

  1. Remove reservoir.
  • CAUTION: Discard fluid drained from
  • system. Do not allow fluid to contact paint
  • work. If spilled, remove fluid and clean
  • area with warm water.

Refit

  1. Position fluid reservoir and connect hoses.
  2. Tighten clips securing hoses to fluid reservoir.
  3. Fit reservoir to mounting bracket and tighten clamp bolt to 3 Nm, 2 lbf ft.
  4. Bleed power steering system. See power steering system - bleed
  5. Remove container.
  6. Disconnect battery negative lead.
  7. Remove drive belt. See ELECTRICAL, Repair, Auxiliary drive belt
  8. Position container to collect any fluid spillage.

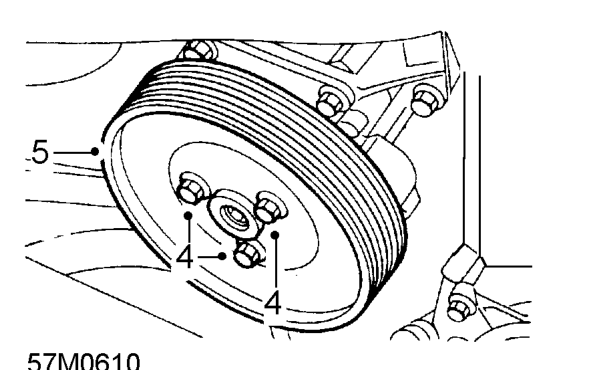

Caution: plug the connections. – Position container to collect any fluid spillage.
  1. Using an Allen key to restrain PAS pump pulley, remove 3 bolts securing pulley to pump.
  2. Remove PAS pump pulley.
