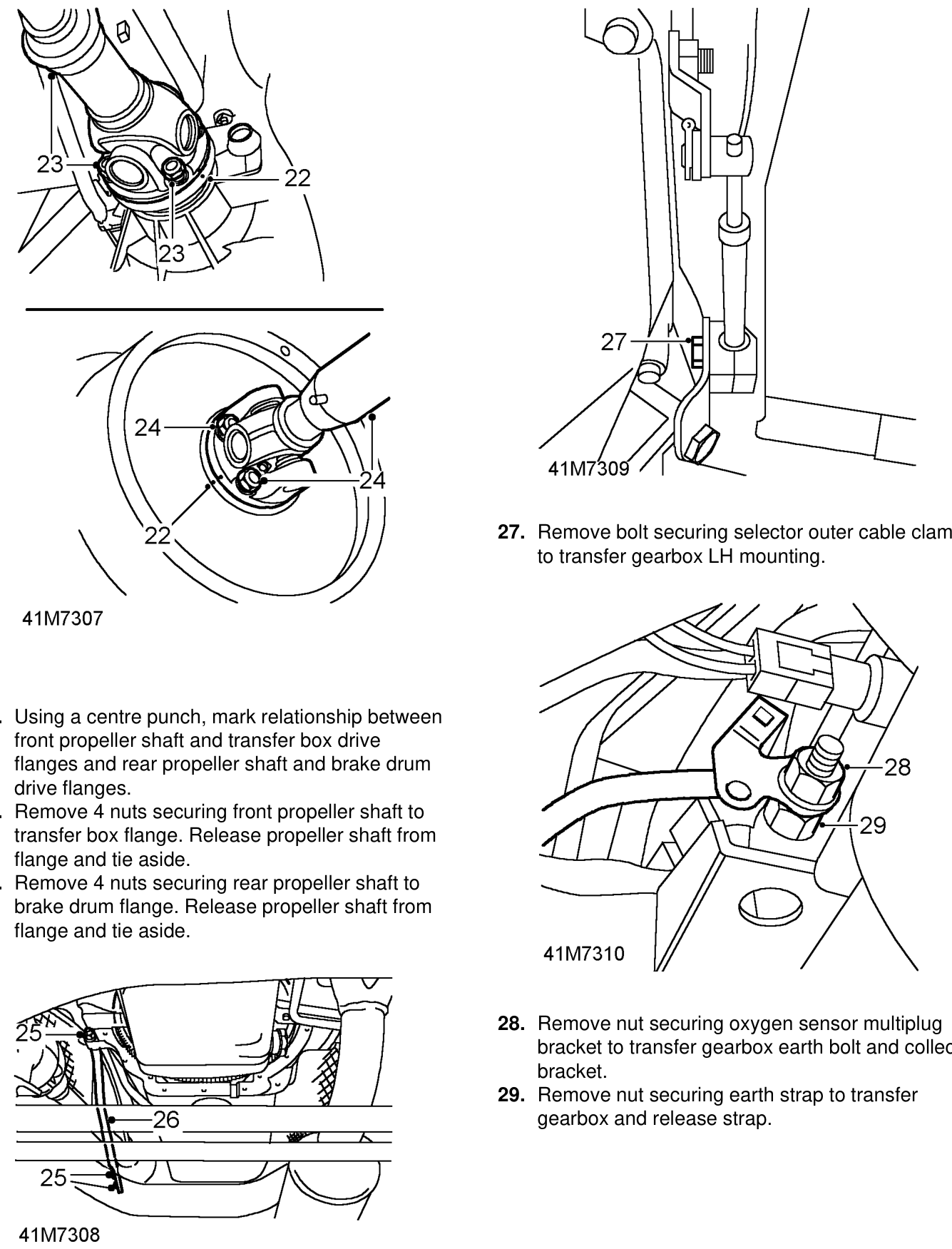

27. Remove bolt securing selector outer cable clamp to transfer gearbox LH mounting.
22. Using a centre punch, mark relationship between front propeller shaft and transfer box drive flanges and rear propeller shaft and brake drum drive flanges.
23. Remove 4 nuts securing front propeller shaft to transfer box flange. Release propeller shaft from flange and tie aside.
24. Remove 4 nuts securing rear propeller shaft to brake drum flange. Release propeller shaft from flange and tie aside.
28. Remove nut securing oxygen sensor multiplug bracket to transfer gearbox earth bolt and collect bracket.
29. Remove nut securing earth strap to transfer gearbox and release strap.
25. Remove nut securing tie bar to gear box and 2 bolts securing tie bar to transfer box.
26. Remove tie bar.
