Land Rover Defender 90 Workshop Manual (NAS)12 · Transfer gearbox
12 · Transmission

Lt230q transfer gearbox (page 4 of 4)

Make
Land Rover
Model
Defender 90 Workshop Manual (NAS)
Section
Repair
Transfer gearboxLt230q transfer gearbox · page 4 of 4
Diagram

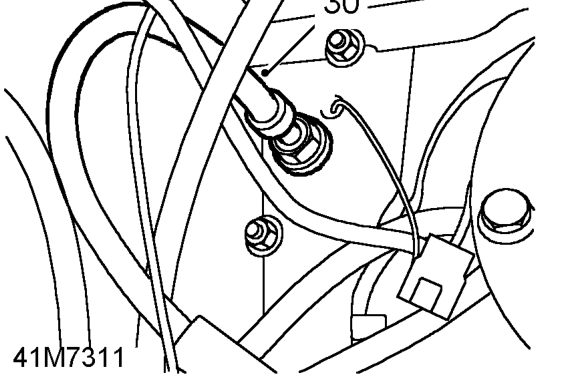

  1. Release handbrake outer cable from body.

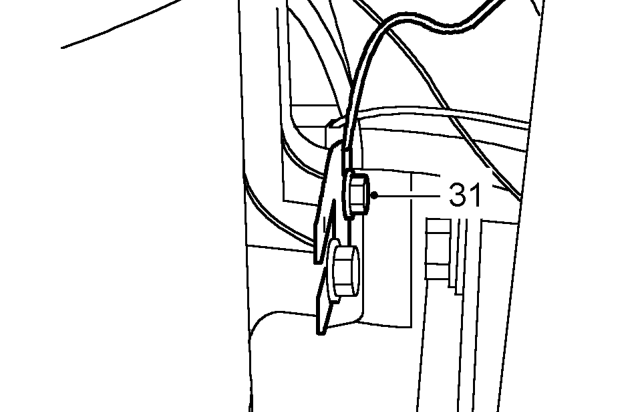

  2. Remove 4 central bolts from transfer gearbox
Remove 4 central bolts from transfer gearbox
  1. Adjust hoist to take weight of transfer gearbox.
  2. Remove bolt securing ground lead to RH side of transfer gearbox.
  3. Remove bolt securing handbrake cable heat shield. Remove heat shield.
  4. Position adaptor plate, LRT-99-010, and secure 36. Remove 2 nuts and bolts securing heat shield to to transmission hoist with 4 bolts.

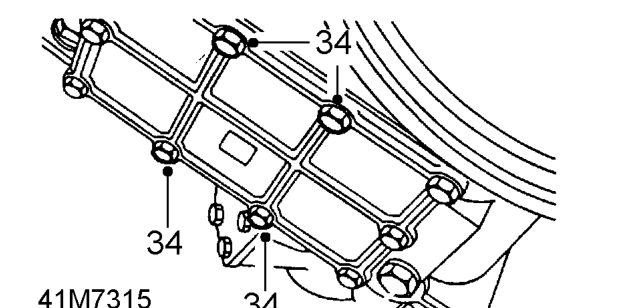

  5. Remove 3 nuts and bolts securing LH gearbox
Remove 3 nuts and bolts securing LH gearbox

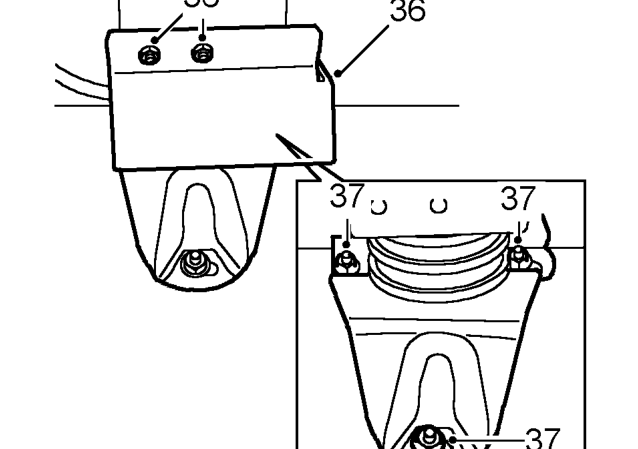

bottom cover, move hoist into position and secure adaptor plate to transfer box.

bottom cover, move hoist into position and secure adaptor plate to transfer box.

transfer gearbox LH mounting bracket. Remove heat shield.

mounting bracket to chassis.
