Refit evaporator

Refit EVAPORATOR

12. Clean sealant from blower flanges. Service repair no - 82.25.20
13. Apply a bead of Silicone Sealant around each blower flange. Remove
14. Connect Lucars to resistor unit in correct order.
15. Position blower flanges on evaporator casing and secure with screws.
16. Connect Lucars (B and O wires) to blower motor.
17. Fit evaporator. See evaporato; Refit
18. Carry out system test. See Adjustment, System test
1. Disconnect battery negative lead.
2. Recovery refrigerant from air conditioning system. See Adjustment, Refrigerant recovery recycling recharging

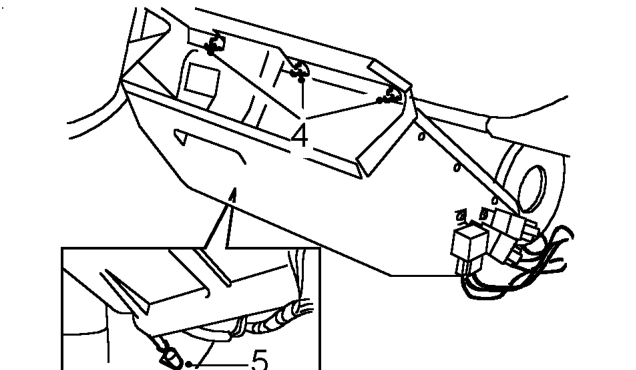

3. Remove fascia duct bezel. See fascia duct bezel

4. Remove 3 nuts securing evaporator casing to mounting bracket.
5. Disconnect drain tube from drain pipe on LH side of casing.

• WARNING: Wear eye and hand protection
• when disconnecting components
• containing refrigerant.

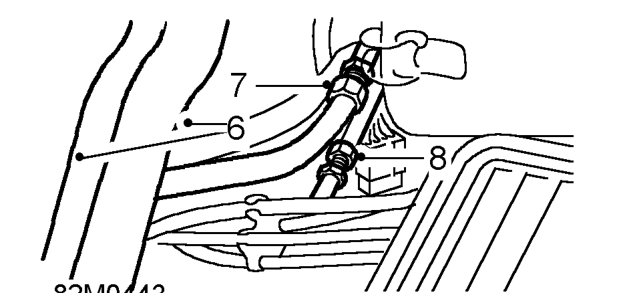

6. Position 2 heater hoses to side of air intake tube.
7. Using a backing spanner, loosen union nut from evaporator return pipe and disconnect. Discard ’O’ ring.
